YBLEGAL91: Engine Pics and my build thread - till completion

[Yblegal91t]

Here are my mods and also below are whats left to get her running.

Engine:
HKS 2mm Stopper MHG
ARP Head bolts
Unorthodox Pulleys
NGK plugwires w/NGK plugs
EGR removed - suprasport egr block off plates
Billet CPS cover (looks great thanks to arz)

Drivetrain:
GM TH-400 Tranny - Built by JW Transmissions
Trans Brake
Custom Adapter Plate to Connect GM Trans to Stock Toyota Automatic Bell Housing
Custom Torque Converter (2500 stall)
Cheetah SCS Turbo-Action Shifter
Bellhousing to transmission adapter plate (Made of aluminum and fully machined on a 3-axis computer controlled mill, also anodized to prevent corrosion.)
Custom aluminum 1-piece driveshaft
Stock auto LSD 3.90 gears

Cooling:
B&M Oil cooler
B&M Supercooler with Thermostatically Controlled Fan(both on custom bracket where a/c condensor was)
Fluidyne 4 core radiator
relocated oil filter with larger K&N & mocal thermostat
Toyota red coolant (only way to go )

Induction:
Driftmotion T66 ceramic coated
24X12X4 Intercooler
Nashman's FFIM (keeps longer runners)
2.75" aluminum ic pipes (chosen for fitment)
Head Ported on Intake side (gasket matched)
9" K&N Filter onto 4" intake
Greddy Type S BOV
Cusco Oil Catch can (werd)
Fidanza Cam gears with clear ATI cover(for looks)

Exhaust:
Full 3" turbo back custom exhaust w/ Apex'i N1 Muffler
SS Autochrome Manifold w/riser welded onto it
HKS Replica Wastegate (have a turbonetics racegate for sale)

Electronics:
Maft-pro w/speed density kit
LC-1 Wideband O2
HKS EVC II Boost Controller
Greddy Turbo Timer (the singing one)lol
Dell Inspiron Pentium 4 labtop

Fuel:
AFPR Kit w/pressure guage
Driftmotion fuel dampener bypass hose
J-Tube Blockoff plate
RC 550cc Injectors
Walbro 255 fuel pump

Suspension:
Eiback Pro-Kit Springs
Tokico Illumina II Shocks
HKS Tems controller
Driftmotion Braided high pressure Power Steering Hose (looks good)
cusco front and rear STB's (looks good only)

Brakes:
Front and Rear PowerSlot Slotted Rotors

also some more...



[empera]

looks good man, cant wait till see more!



[HommerSimpson]

is all you need with the maft pro is the 3 bar map and the air temp sensor to ditch the maf ???? Im fixing to fire mine up and want to ditch maf asap.. got the maft pro and hooked up...



[Yblegal91t]

empera: thanks, ill have more for you and everyone tomorrow.especially if my slotted rotors, pads and stainless brake lines get here

hommersimpson: not sure what your asking, but you eliminate the afm with speed density kit wchich incluides the sensor and the iat sensor threads into a 3/8 threaded bung on the intercooler piping right before the throttle body.

( i'll have a pic of that once i get the bung welded and also my greddy bov flange). Im getting the pipes welded so that there are only a total of 4 couplers.



[HommerSimpson]

empera: thanks, ill have more for you and everyone tomorrow.especially if my slotted rotors, pads and stainless brake lines get here

hommersimpson: not sure what your asking, but you eliminate the afm with speed density kit wchich incluides the sensor and the iat sensor threads into a 3/8 threaded bung on the intercooler piping right before the throttle body.

( i'll have a pic of that once i get the bung welded and also my greddy bov flange). Im getting the pipes welded so that there are only a total of 4 couplers.

what all is in kit ? 3 bar map + air temp and what eles ? and how much ?



[Yblegal91t]

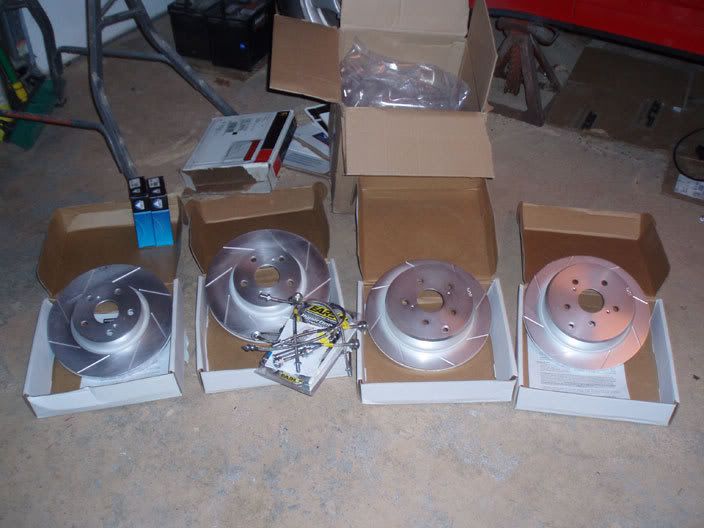

Received my rotors, pads, and lines at around 6. Then went out and just now took some pics of them. Install will start tomorrow. Should be easy as they are a direct fit. also calipers will be painted a nice dupli-color red.

Here they are



[NashMan]

hey wow that's were my ffi ended up hope you treat it will it worked great for me



[Yblegal91t]

I will nash, I'm sure it works jsut as good as it looks. I like keeping the long runners for that extra top end.

and damn I need to get some pictures up and continue this thread. I will have my new part by the end of this week. So I can show more progress.



[Yblegal91t]

here are some pretty recent pics. just rapping things up and should be done in the next couple weeks or so.

and dude, I got a dell.:icon_bigg
I'm going to be loading the Logworks software for the maftpro



[NashMan]

long runners give you low end there bud

looks good thou

I will nash, I'm sure it works jsut as good as it looks. I like keeping the long runners for that extra top end.

and damn I need to get some pictures up and continue this thread. I will have my new part by the end of this week. So I can show more progress.



[Yblegal91t]

long runners give you low end there bud

you said what i meant lol

im going to need all i can get to spool that thing. that transmission should help some too.


and nice build you have. If you need any AN fittings, I have a bunch I couldnt and didnt use.



[NashMan]

thanks for the offer but i running eaton fittings



[Yblegal91t]

ok, so it's been awhile but now im probably going to need all the help from here and please give me all the criticism you can when i post some pics and explain things.


ordered some rims the other day. now im deciding on what tires to fit them.

http://www.memoryfab.com/wheels/new/296/

and also just got in a triple guage set from summit thats going to help me better monitor volts, water temp, and oil pressure.

http://store.summitracing.com/partdetail.asp?autofilter=1&part=SUM-G2980&N=700+303917+0&autoview=sku


i will be installing them directly under my other 3 guages on a new plate out cut out of plastic.
