Pics of your relocated Power Steering Reservoir

[Scruggs86.5T]

So back to the aftermarket PS res., I have been eyeballing these for a while.
http://www.jegs.com/p/Billet-Specia...mote-Power-Steering-Reservoir/978633/10002/-1



[CajunKenny]

Holy Thread Resurrection Batman!!

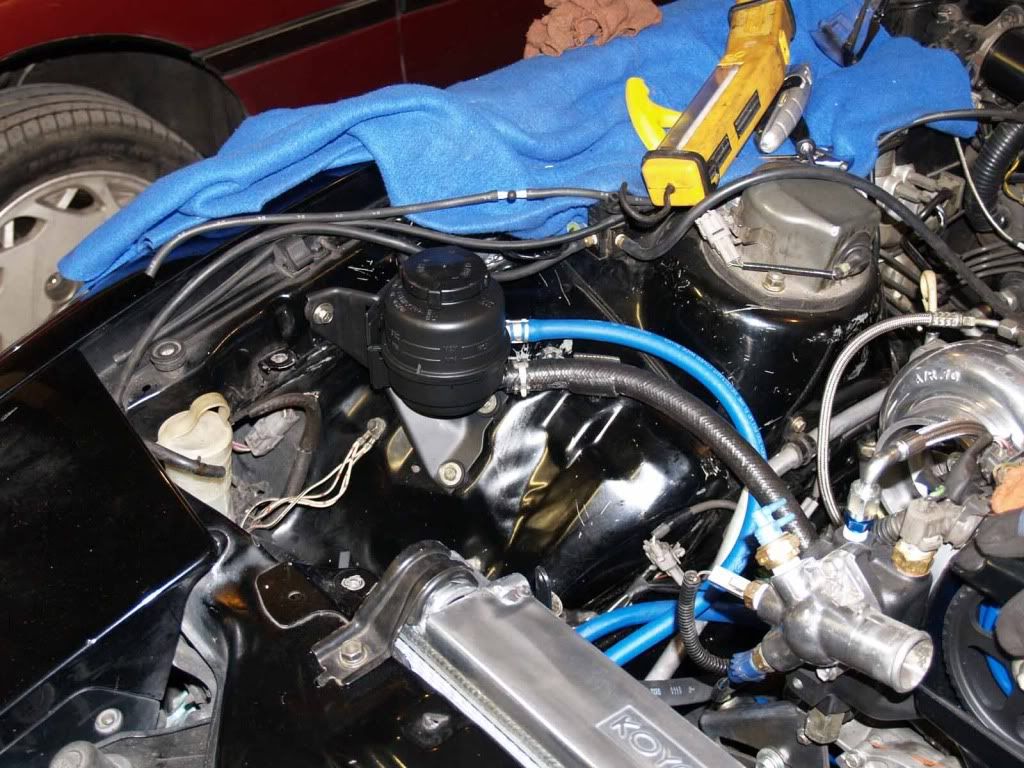

Here's what I ended up doing...



[supraguy@aol]

I like that, Cajun- Is it just regular paint?



[CajunKenny]

Thanks! It's Rustoleum 'Low Gloss Black'.

The paint makes checking the fluid level a little more difficult; but, I think the trade off is worth it.



[kneedragger85]

Holy Thread Resurrection Batman!!

Here's what I ended up doing...

Ditto



[SWD Fredester 3]

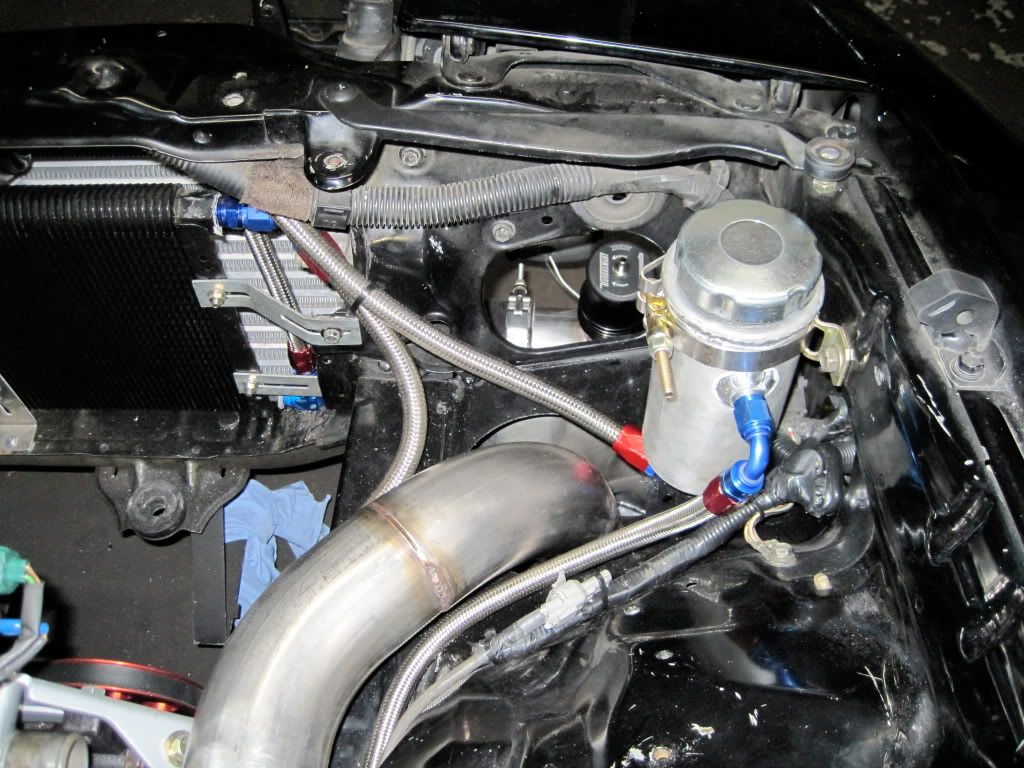

Here's mine, made be Canton, you can find it on their web site.



[IJ.]

CK: Hope you gave the screen a really good clean before you painted it



[Moy]

To the people running the N/A power steering reservoir, stock AFM with open element filter, and stock intake manifold, how did you route your intercooler pipes?



[CajunKenny]

CK: Hope you gave the screen a really good clean before you painted it

Yep. And what a pain in the butt that was! :biglaugh:



[HKS_TRD]

You can just run an inline filter instead, thats what I plan on doing with mine, impossible to get to the screen on the stock ones



[IJ.]

Always run an inline filter here no matter if the Reservoir is screened or not.



[CajunKenny]

Something like this?

http://www.amazon.com/Professional-..._2?s=automotive&ie=UTF8&qid=1268679090&sr=1-2

Or this?

http://www.fourwheeler.com/techarti...sion_and_power_steering_filters/photo_12.html



[supra90turbo]

Magnefine FTW. I will be ordering one soon.



[IJ.]

Magnefine FTW. I will be ordering one soon.

x2



[HKS_TRD]

I need to get one too, where is the best place to order one from in our Country Ian?



[IJ.]

Got mine through a bud at Pedders Dan.

Actually an Aussie product?

More info



[HKS_TRD]

Ah OK didn't realise it was an Aussie product, will have to look it up I am imagining they come in a few different fitting sizes, would I be correct in that I could cut the factory hose from the reservoir to the pump and install it inline, or even just use 2 bits of universal hose, that factory hose didnt really have much shape to it anyway and I'd hate to cut the new one I bought, but then again no one is probably ever going to use it without a magnefine in it anyway



[IJ.]

It goes in the low pressure return hose, as far as I know one size only.



[HKS_TRD]

Wouldnt it be better to go in the line from the reservoir to the pump? Or will it restrict flow and cause issues?



[CajunKenny]

^My same question.

And with an N/A pump the low side would be the larger line. Correct? The smaller hose is ~3/8" and the larger is ~5/8" if I remember right. The larger one returns to the pump.

I was just at Schuck's and they indicated two sizes of filters (barbs). A 3/8" and a 1/2". No other sizes.
