NEED wiring help!!!

[tylerjacobsen85]

I need to know what pins on the ecu are for the map sensor? I have a 5-speed 1jz supra ecu. I really need know, please help, thanks



[AF1JZ]

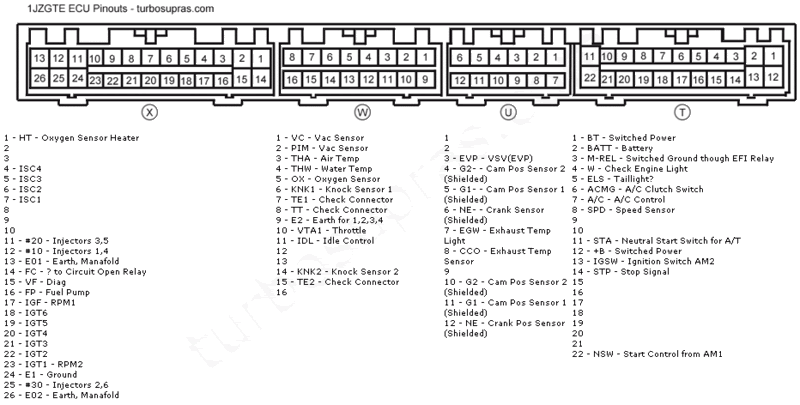

This is the pinouts for the jza70 ecu. I didn't see the map sensor on there though. Maybe it's coded differently.



[Bigzavs]

still cant see the MAP sensor on this one either

you might just have to trace the wires

EDIT: i believe its on the T connector (mine is a green wire) but i dunno if thats just mine tho



[AF1JZ]

Hmm, that's weird



[Bigzavs]

im gonna go see which one it is on mine



[Bigzavs]

ok on mine, the map line (the one i tapped for my afc) is pin #2 on the W connector



[935motorsports]

W2 - PIM

that is map input



[tylerjacobsen85]

My wires where all cut so i cant really trace them back. W2 is the the green with black? Where dose the black with red and brown go? Would they be all together?



[tylerjacobsen85]

Im thinking its pins (W1)-"vc-Vac sensor", (W2)-"PIM-Vac Sensor", and (W9)-"E2-Earth for 1,2,3,4". Can one confirm with that?:1zhelp: I really dont want to kill my ecu or my map sensor, so i want to be kind of sure on where they go.

Thanks for all the help so far.



[suprastanger507mgte]

Im thinking its pins (W1)-"vc-Vac sensor", (W2)-"PIM-Vac Sensor", and (W9)-"E2-Earth for 1,2,3,4". Can one confirm with that?:1zhelp: I really dont want to kill my ecu or my map sensor, so i want to be kind of sure on where they go.

Thanks for all the help so far.

It IS the PIM pin.



[tylerjacobsen85]

It IS the PIM pin.

What about the other two wires? do you know if they are right?



[935motorsports]

The map sensor uses the following wires to operate:

VC - 5v source
PIM - Map output
E2 - Ground



[tylerjacobsen85]

The map sensor uses the following wires to operate:

VC - 5v source
PIM - Map output
E2 - Ground

your my hero:love:
lol thanks man
