more updates for the weekend and today, although i only took pictures today.

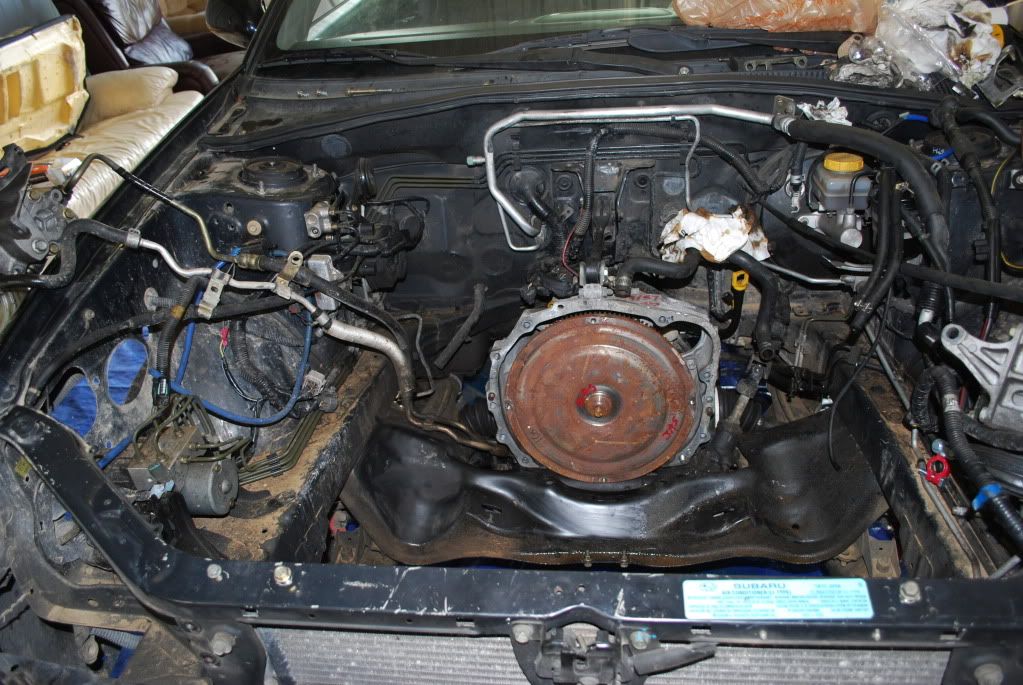

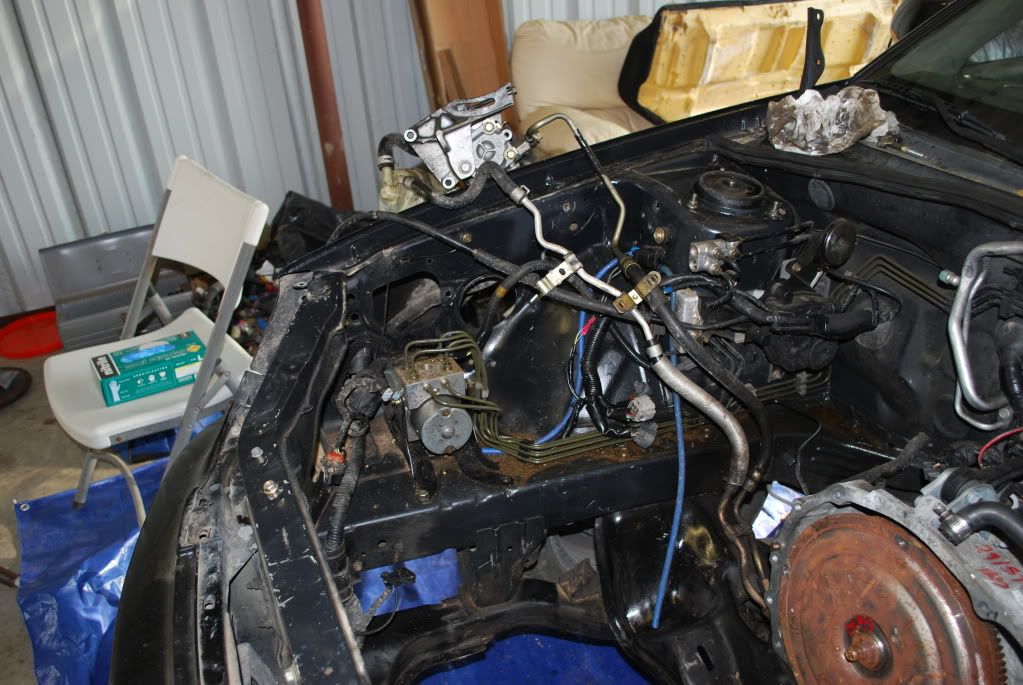

Heres how F@*king dirty the engine bay is, started by hand today, but im just gonna pressure wash it tomorrow, just now waiting on a gasket kit to finish the engine and put it back in.

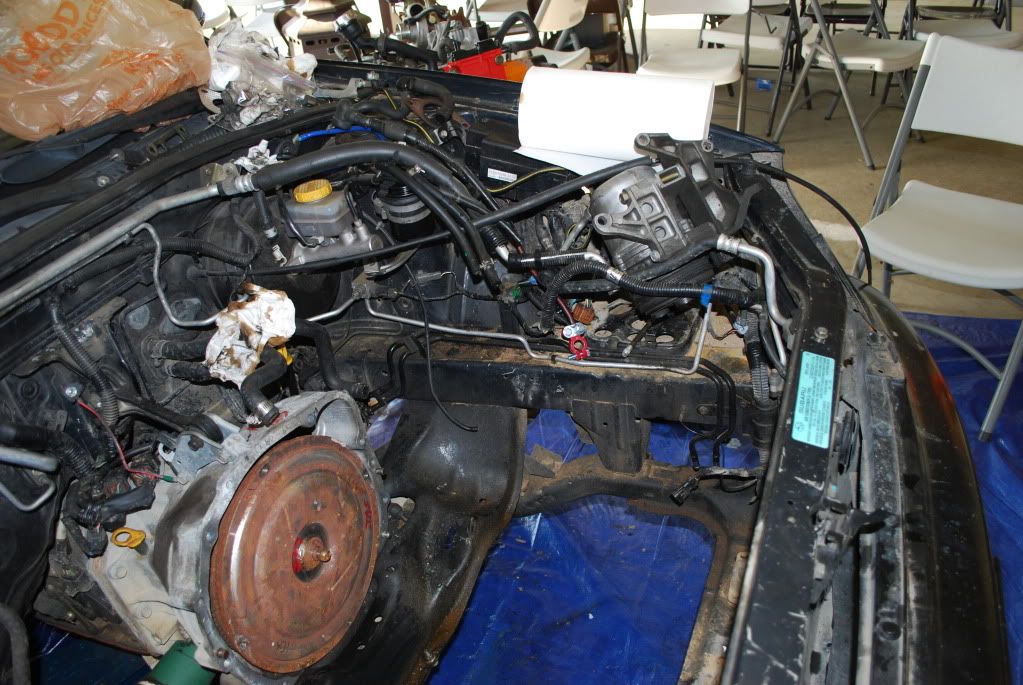

Before any cleaning (well i did a tiny bit on the subframe)

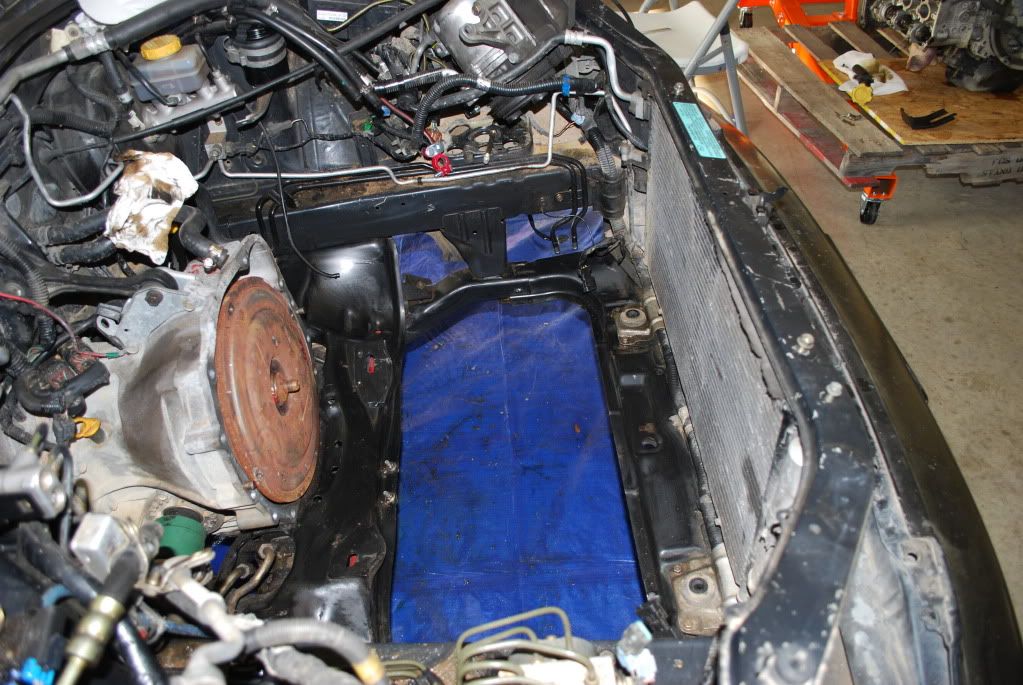

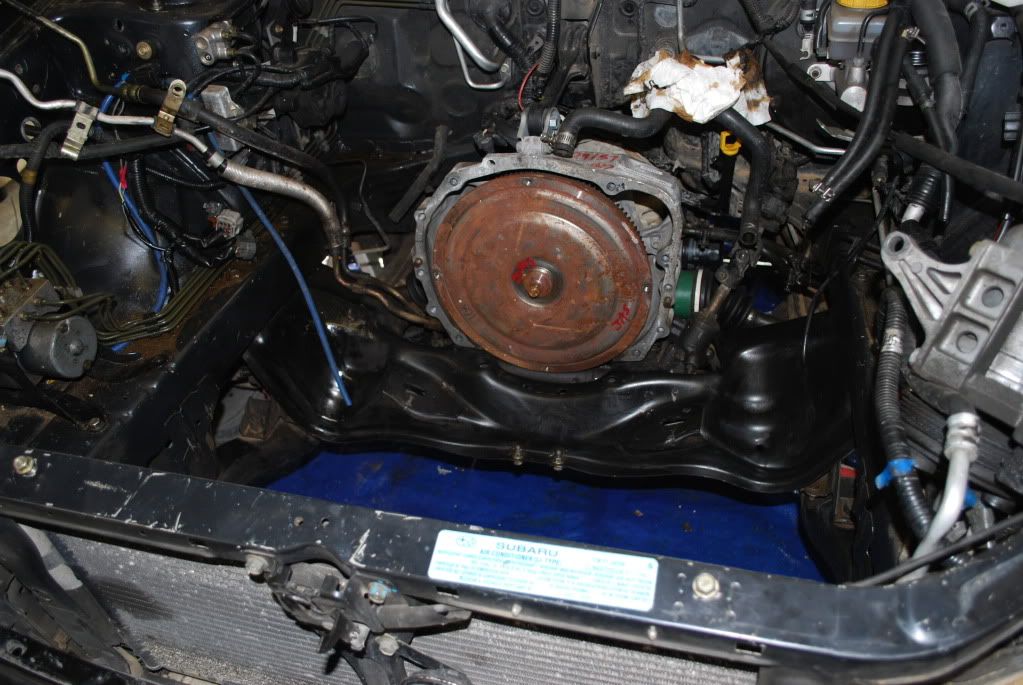

after some hand cleaning, paper towels and engine de-greaser




Sold the wheels and traded the tinted tails to the same guy, also going to be putting on all the parts to his WRX that he just bought (ie exhaust, downpipe, etc)

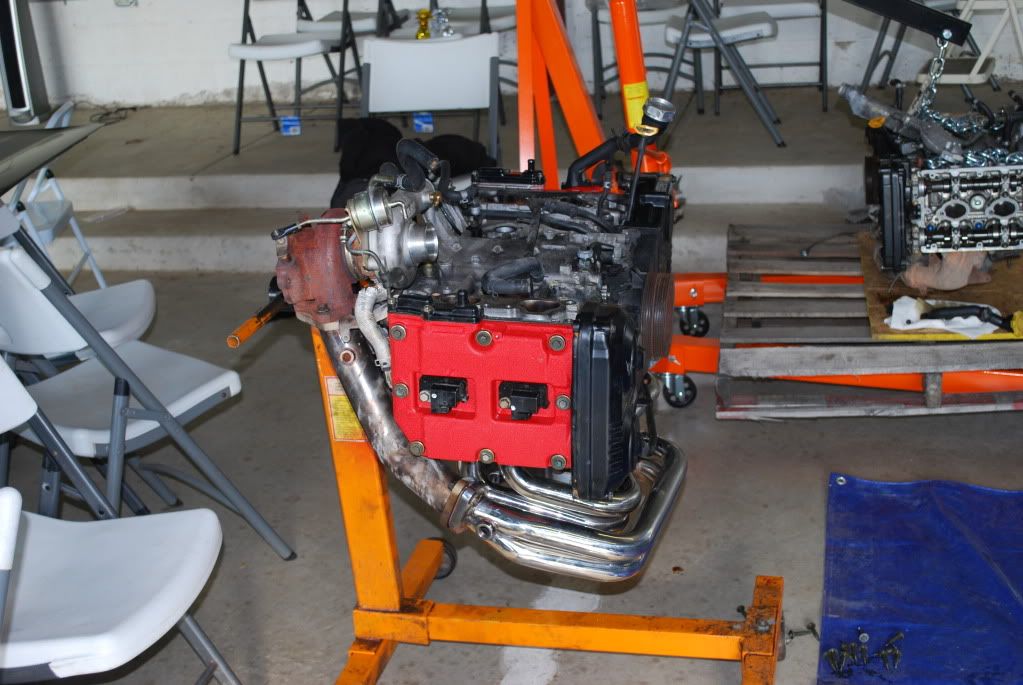

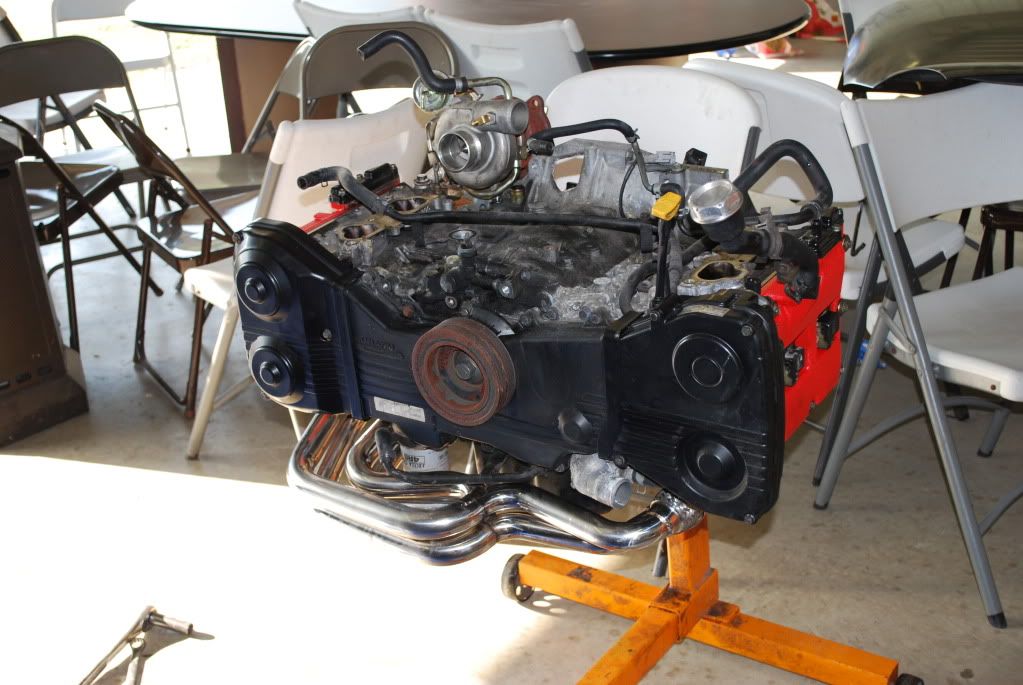

current waiting status of the JDM motor, guy waited till today to ship the gasket kit (header is just on it, going to wrap it before it goes in)

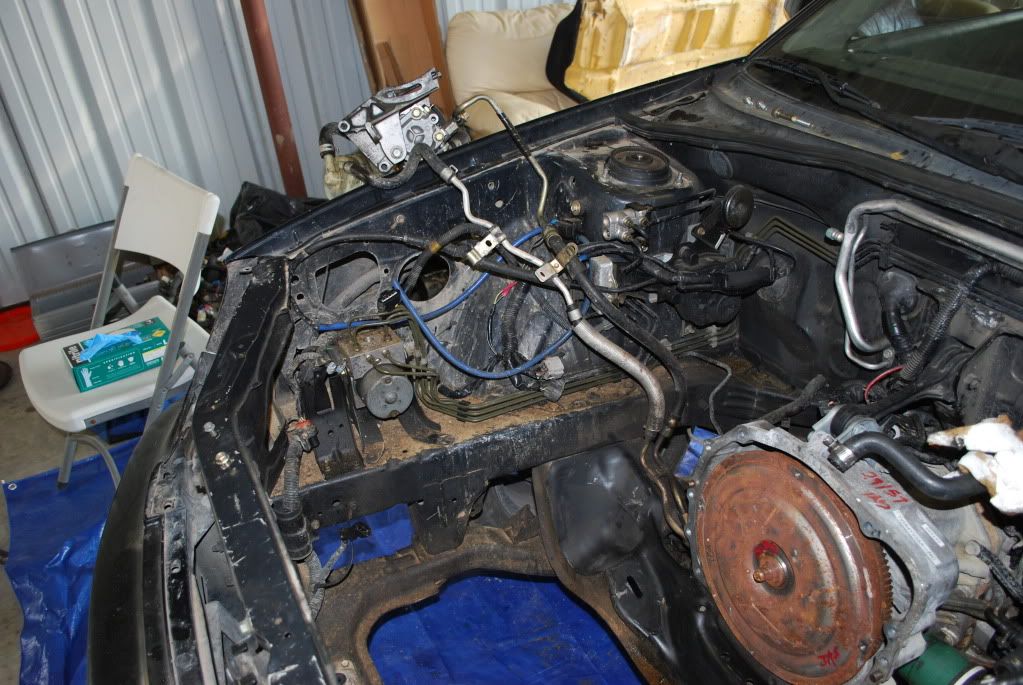

waiting to be pressure washed tomorrow


ordered a Koyo (my dad was un-impressed with the stock radiator) and the new wheels and tires. gonna wait for coilovers till its done getting painted


Bigzavs

86.5 1JZ Single Turbo
Apr 21, 2005
2,267
0
0
39
Arlington, TX
gracias guys, i forgot to take pictures over the weekend, but the new motor is in. gotta work on the TVG's tomorrow as well as mounting the new wheels.

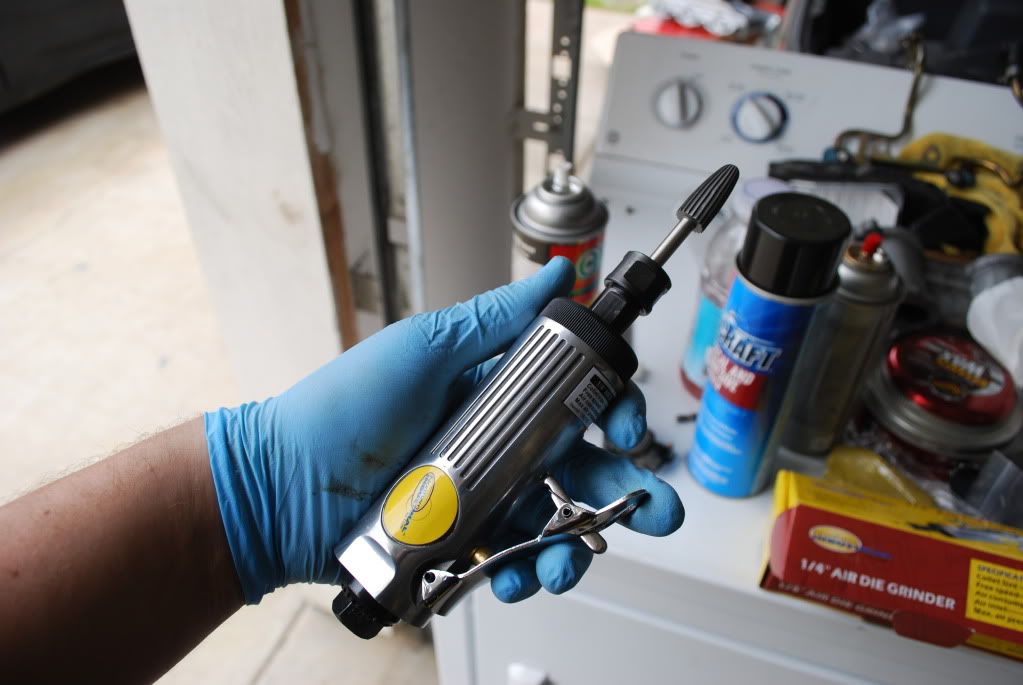

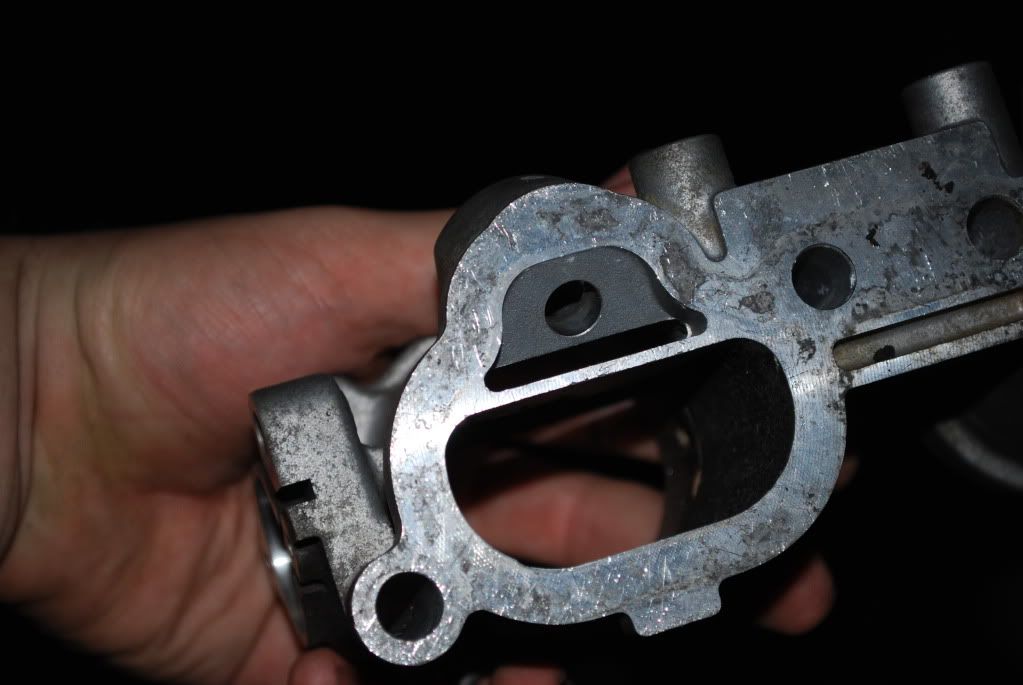

picked this up today

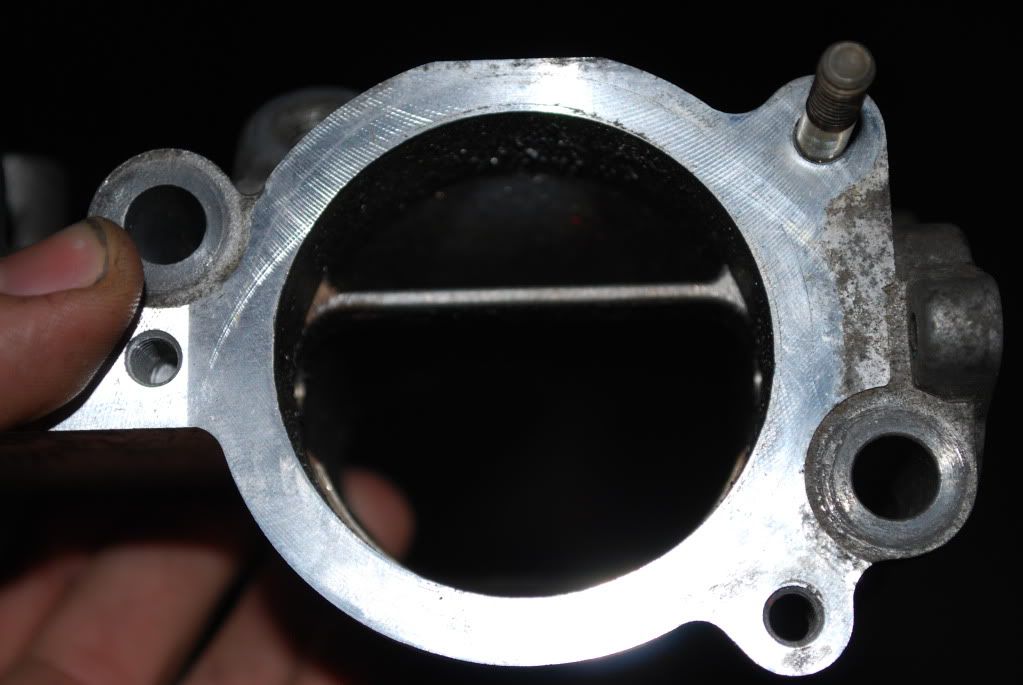

to fix this asshatery



more pics to follow tomorrow


Poodles

I play with fire
Jul 22, 2006
16,757
0
0
43
Fort Worth, TX
My guess is that is where the injector sits, I see no asshattery, I see smart design as it will help atomization of the fuel and dispersal through the intake charge...


Bigzavs

86.5 1JZ Single Turbo
Apr 21, 2005
2,267
0
0
39
Arlington, TX
the asshatery is that the air getting intially mixed with the fuel is funneled down to a 2-3mm opening. what you cant see is the butterfly valves keeping the main area closed off that i already removed. Until you would go WOT, the butterfly valves kept the main area of the runner completely shut. its a dumb design.

http://awdtuning.com/store/product_info.php?cPath=23_29&products_id=54

Last edited:

Poodles

I play with fire
Jul 22, 2006
16,757
0
0
43
Fort Worth, TX
What's the torque curve look like though? I'd image it would burn better at lower RPM leading to more torque.

It would be cheaper to make it the simplier way, so there must be a reason it was done. Especially with the rally circuit running restricter plates...


Bigzavs

86.5 1JZ Single Turbo
Apr 21, 2005
2,267
0
0
39
Arlington, TX
it was for emissions. the car has no cats on it, so i doubt it could pass anyways

it is tagged till next january, but the dumbass kid at the dealer got it through "channels" and whoever did it gave him the 85 year model and earlier style sticker


Bigzavs

86.5 1JZ Single Turbo
Apr 21, 2005
2,267
0
0
39
Arlington, TX
Lol, well just in case anyone is wondering why I'm doing all this work for my brother's car, it's because my younger brother is borderline autistic. He's worked his ass off to overcome it and makes nothing but A's and B's in school. I'm doing this so his social confidence increases, as he will easily get asked questions about it at school.

Start of today



New engine in

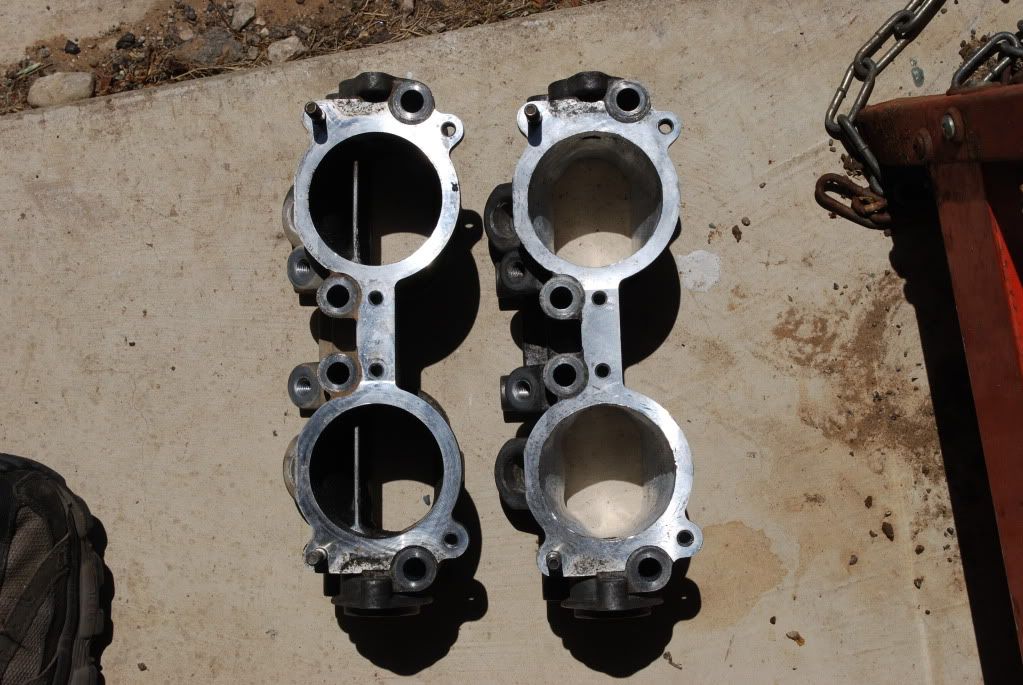

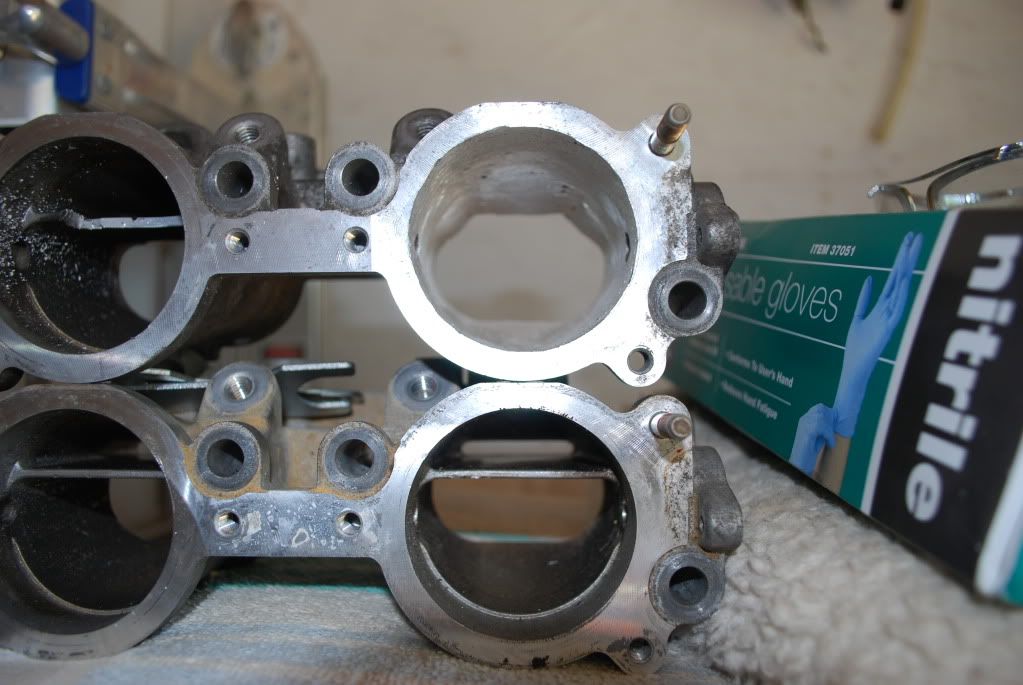

TGV's before and after comparison; first is rough worked


Finished aside from sanding roll work tomorrow


Finished for the day with the new wheels, definitely makes the paint stand out as needing work. The coilovers arent here yet, so the stance is definitely not set in stone.




Bigzavs

86.5 1JZ Single Turbo
Apr 21, 2005
2,267
0
0
39
Arlington, TX

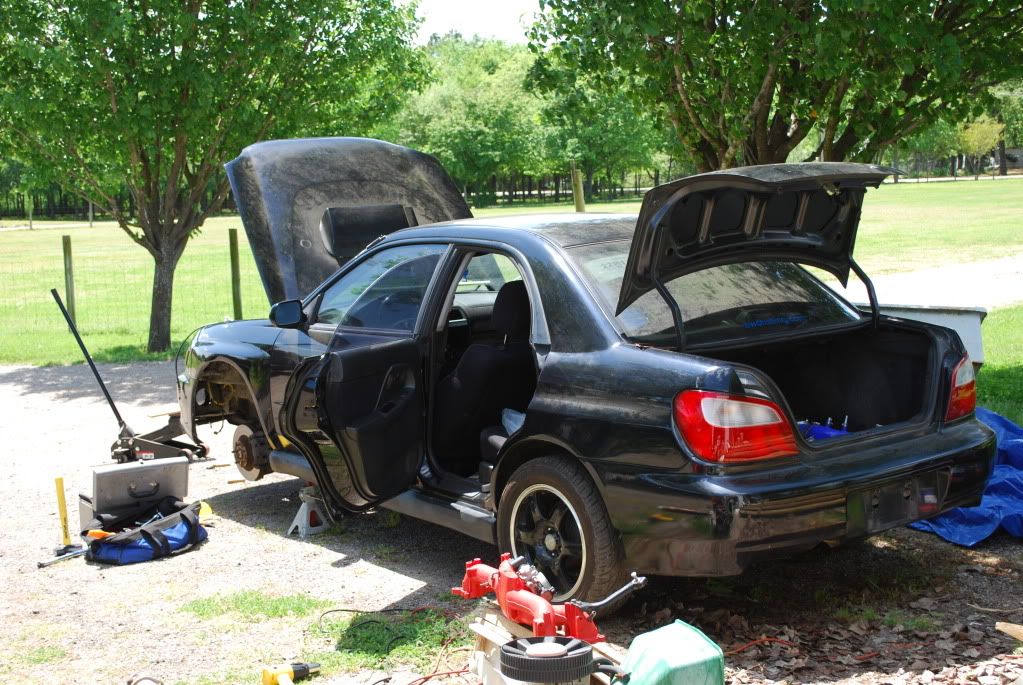

Would have gotten it started today, but it rained for an hour or so, and I didnt feel like finishing it anymore after that.

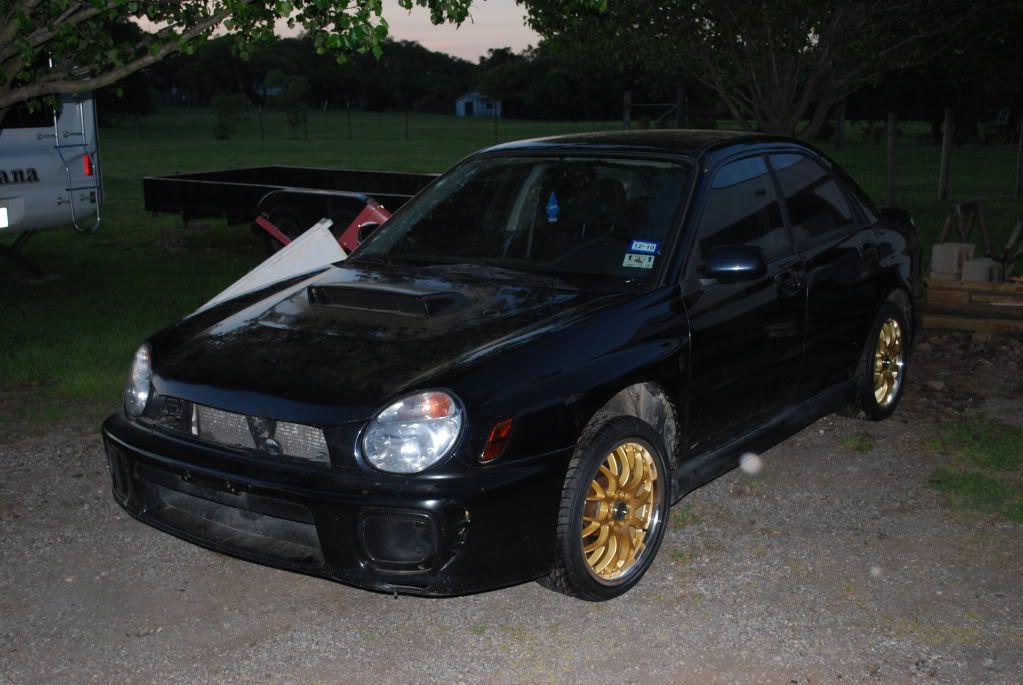

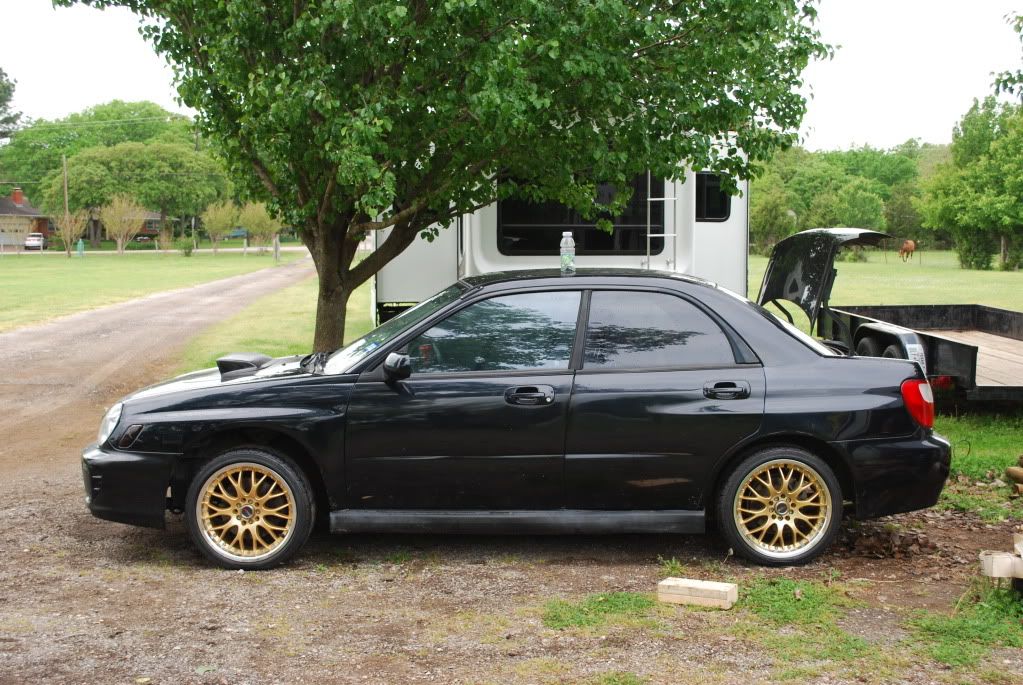

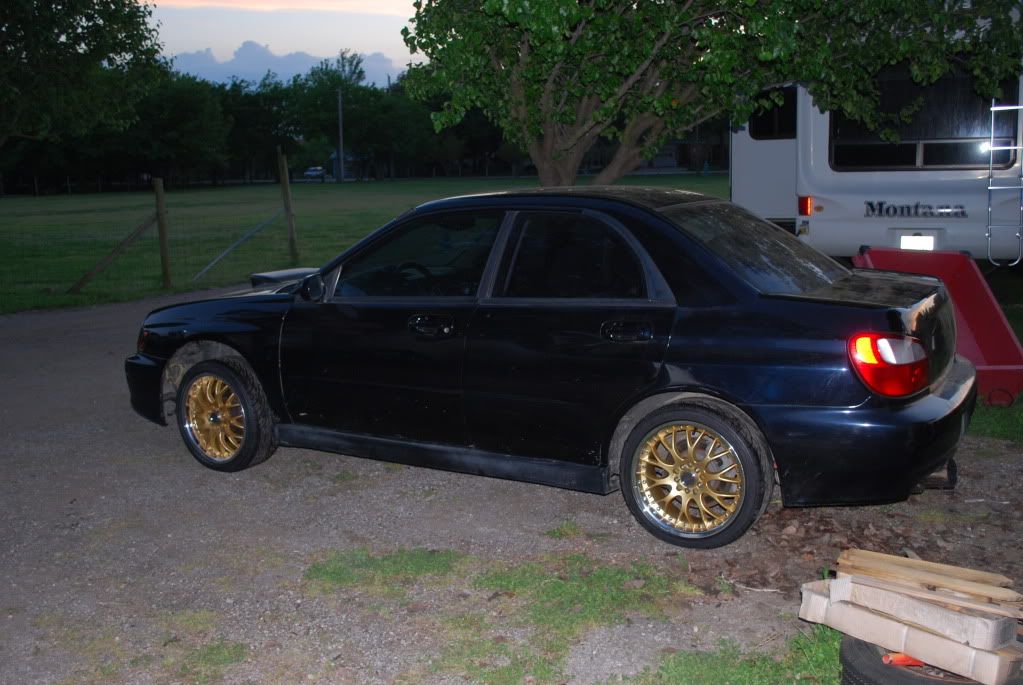

heres the car right after the rain, didnt look half bad wet

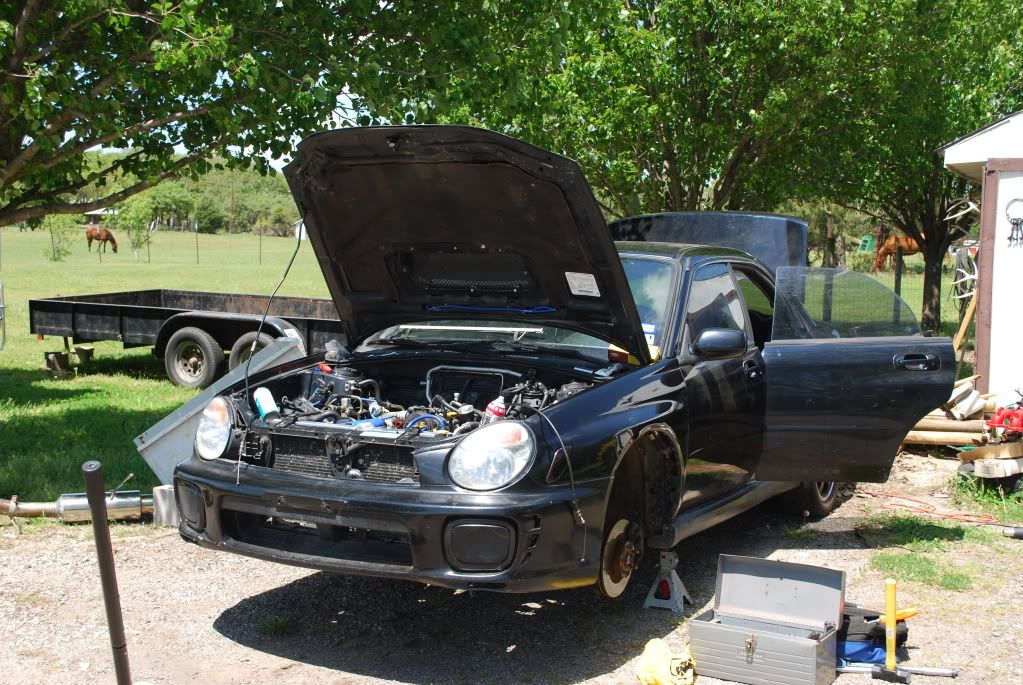

heres where the motor sits as of the end of the day


RazoE

Boobs/Boost, my favorite
Jun 13, 2006
4,946
3
38
39
Los Angeles
www.cafepress.com
aaahh, so he has Autism..

I was wondering why you're going through so much trouble for him..!


sounds good though, glad to hear he's fighting it, and not just using it as an excuse like many kids/parents...


Bigzavs

86.5 1JZ Single Turbo
Apr 21, 2005
2,267
0
0
39
Arlington, TX

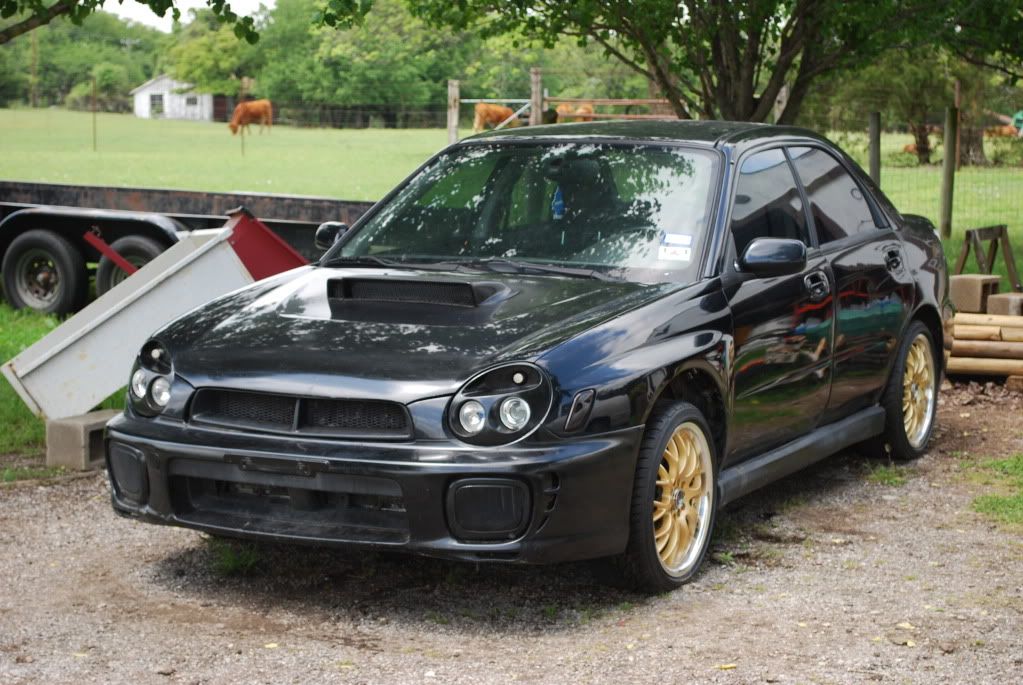

car is for the most part.......done

just needs paint, tuning, suspension, and.............to run. getting fuel and compression, so we think the timing is off and im not getting spark because of it

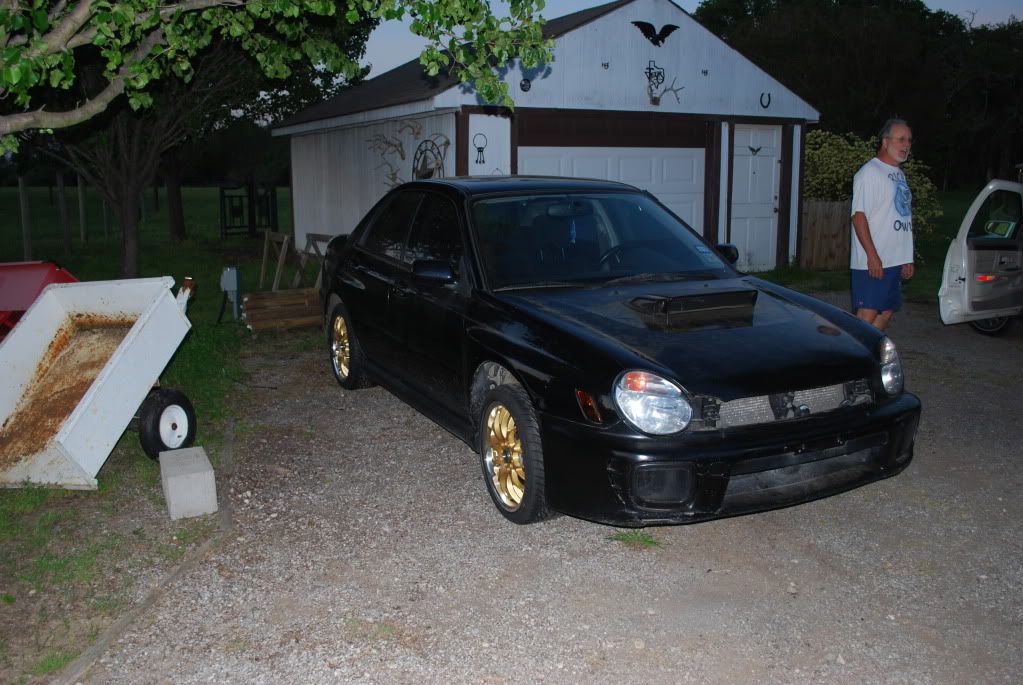

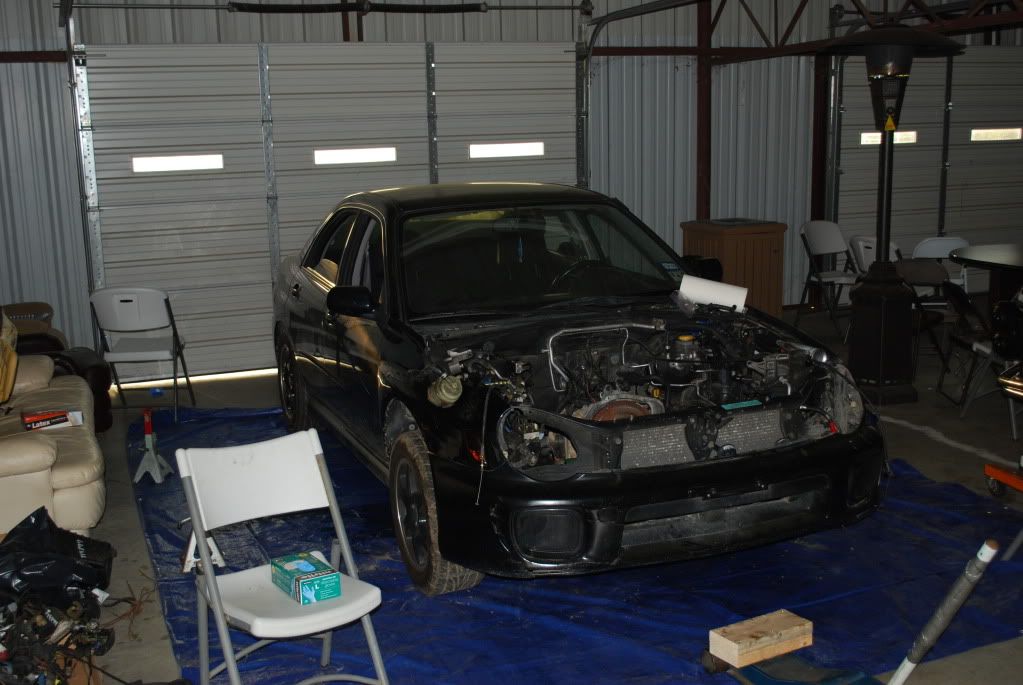

heres the car

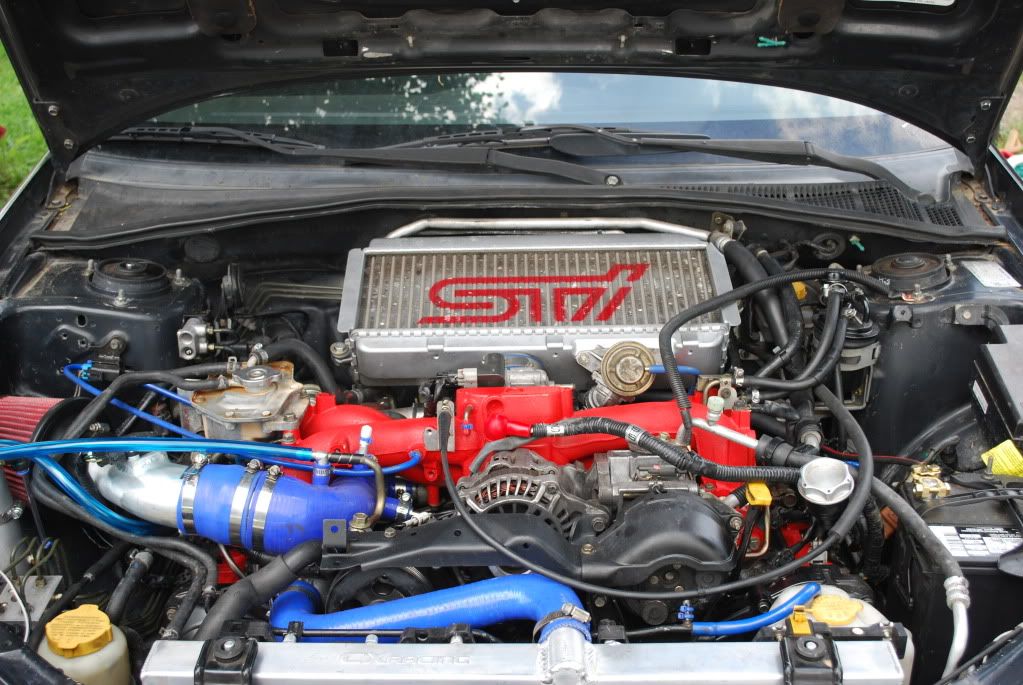

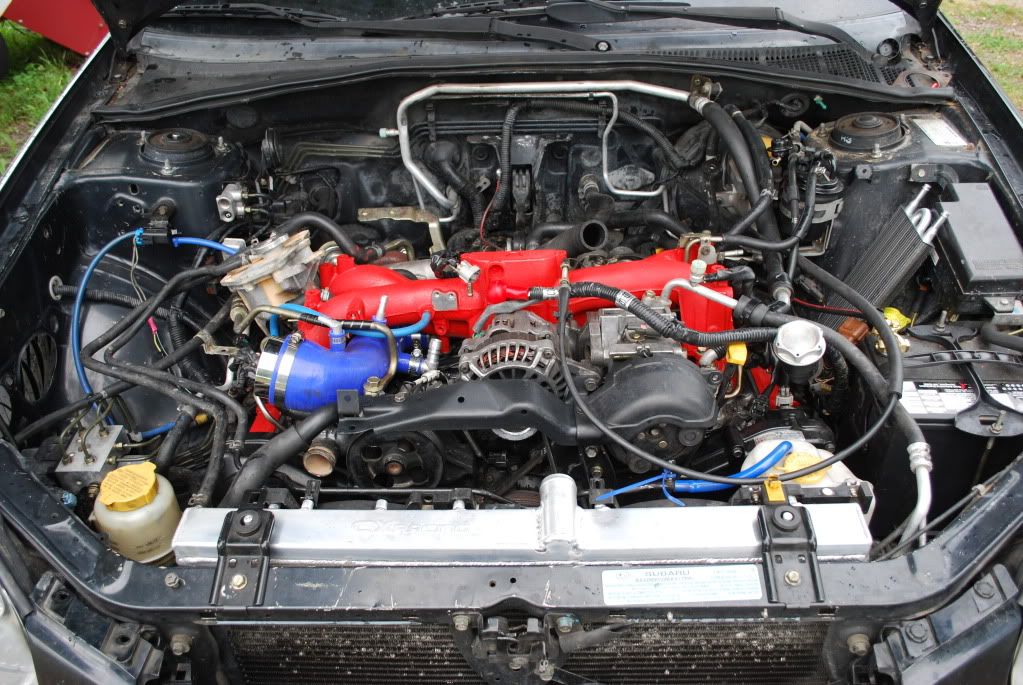

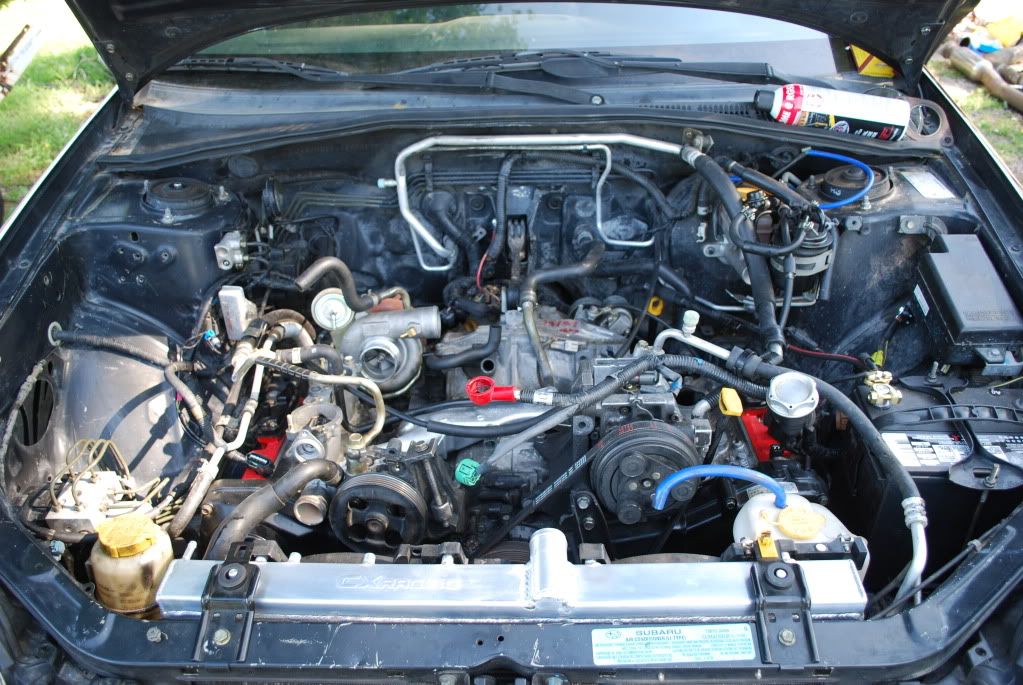

and heres what the engine looks like

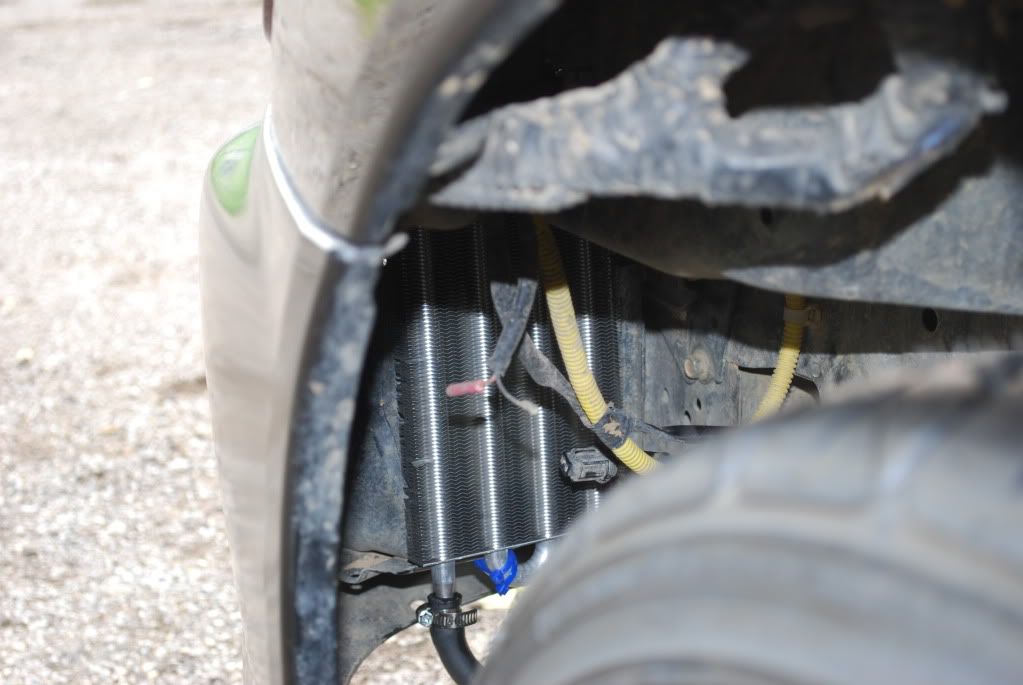

since the car has no foglights, i decided to use that opening for the trans cooler


Angry7M

Formerly redmaro
Sep 6, 2007
733
0
0
35
AZ
Looks really nice! You should post pics once you get the coilovers on it, it should look even better with them. :)


Bigzavs

86.5 1JZ Single Turbo
Apr 21, 2005
2,267
0
0
39
Arlington, TX
well as an update to this car, got it running, now just needs MAJOR tuning.

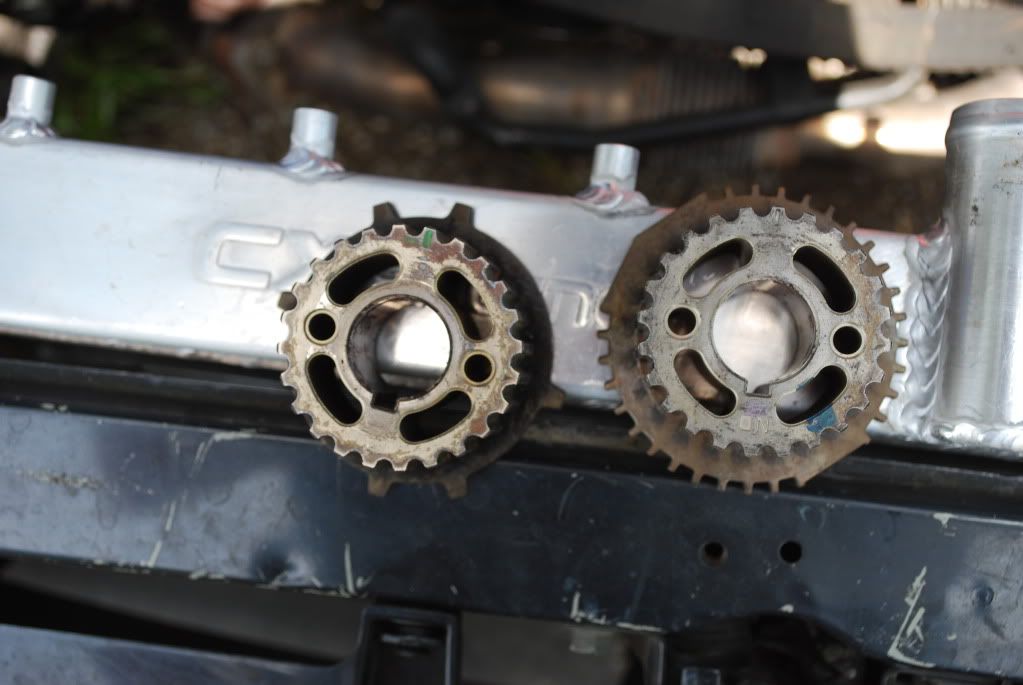

this was the cause, the JDM motor had the timing gear on the left, USDM on the right. you can see the difference in the number of teeth for the CAS to pick up. changed them out, redid the timing, and bam, started right up



goes to AWDTuning.com saturday for tuning and misc little things


wiseco7mgt

dirty mechanic
Aug 12, 2007
811
0
0
queensland
Great work on a tidy little ride for your brother. Are you worried at all on the choice of a quick little turbo car for a first ride?
