Supramania's Elite Engine bay Thread...ZERO progress pics.

[Rennat]

^^^^^^ so clean and simple looking. i LOVE it!!!!! and i guess it doesnt hurt ya got almost 700hp!!!!!!


90 turbo on top and 86.5 n/a on bottom... dont mind the n/a, it was a work in progress. LOL



[Supracentral]

I guess I should add these:



[Bigzavs]

latest iteration of my motor



[gaboonviper85]

here's some of mine from back in the day. Yes the rebuild was done in my dining room....well, not to mention but that was also my roomate's truck topper behind the motor....not too much dining went on in there.

Note the dish: 8:1 comp

edit: I don't notice #6 piston in the pic, the funny part is after the motor had been running a while, it kinda melted.

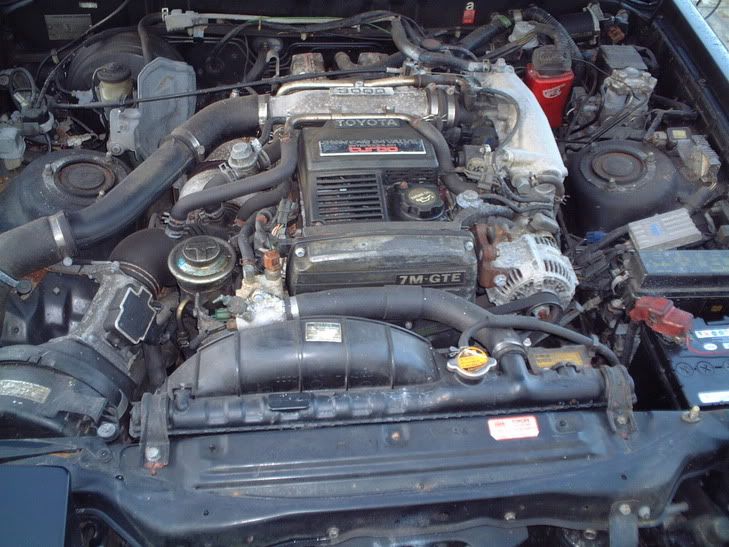

Not really that clean, but only engine shot that exists for my first supra.

edit: I was probably the only one in the world with a blue exhaust manifold...

hmmmm looks to me like you stole that pic from jsc speeds website.....explain



[Boost Lee]

Ian - Something about your engine bay just screams "I'm ready for business". :biglaugh:

Mike - Pardon the late-night brain farts...but is that in an A80?
It just threw me off as it seems that the radiator is noticably further away from the motor. Looks amazing though, regardless. :love:

Jeff



[Supracentral]

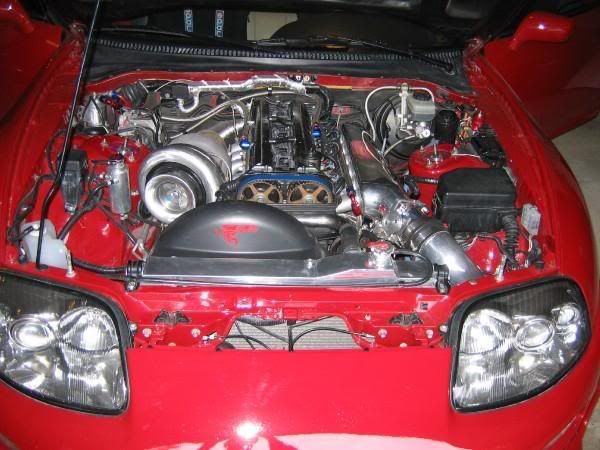

Mike - Pardon the late-night brain farts...but is that in an A80?

Yep.

It just threw me off as it seems that the radiator is noticably further away from the motor.

Electric water pump and no mechanical fan. Leaves lots of space. It's a dedicated drag car.

Looks amazing though, regardless. :love:

Clean, simple, nice to look at and easy to work on was the goal.



[Boost Lee]

Clean, simple, nice to look at and easy to work on was the goal.

Check, Check, and.........Check.

Stay posted. I'll soon have a tastefully clean looking engine bay posted in the near future.

Jeff



[YakuzaKirby]

not mine... but with 1200rwhp... id say my buddy mike's MKIV is pretty elite...
i dont know if hes on any forum sites, id assume hes on sf, but i dont know his name on there...

and heres my '87... its not really all too fancy, most of the mods are listed in my sig... it was pretty clean though... the new setup goin in will be a bit cleaner...



[OneJSupra]

Here's my contribution ...

cheers :icon_bigg



[Andreazz]

Here is mine 450rwhp car from Norway:icon_bigg

And, yes, the crank case ventilation is just temporary..



[UL05ST]

wow...some very nice engine bay pics.....
(at the moment, this is the best one i have )... in the comming weeks my bay is going for a major upgrade (lookwise)...

its not as bling... but its something about the sun.... :icon_razz



[Slow_Sc3]

thats all i got at the moment.



[YakuzaKirby]

niceeee sc. i need to get a pic of my best friends car... hes got a gunmetal metalic-ish sc with a clean 1jz, stock twins, custom intake and intercooler piping, big fmic...



[bo3232000]

Heres mine a 7mgte w/forged everything and a GT45 t-4


These were from original fab up in car before it ran,willtake some current ones soon.
Thanks to all you guys for do's and dont's it made life on this build so much easier.Got almost 4,000 miles on it so far and am lovin every minute of it runnin 18 psi layin down 512 hp 496 tq hopefully upgraded injectors will be next from 660 to 780 and 24 psi to just see what we can get out of it.......:sarcasm::evil2:



[supramad77]

Ok thought i post a couple of mine. Not as nice as some i have seen but better than when i got it.
First before and then afterwards.



[SupraMario]

Before:

After:



[Yblegal91t]

Not sure about "Elite" but here's mine minutes before installation.

Nice!! but why did you choose to hook up 2 small deep fryers instead of 1:sarcasm:



[strictlySupra]

sorry i have no before pic.

but i have after!

i know,,, i still have to sort out most of the vacuum lines and trace back some of the un needed plugs but its finished for the most part, runs and drives :biglaugh:



[lilazni3uoy]

maybe? :ugh2:



[Clint]

^ Eric come on bro SILV is right around the corner and you still havent polished your power steering reservoir lol your slacken bro !
