7M project finally running!

[SD2JZA70]

Here is the pics of the 7M Ive been working on lately. It belongs to Nate (80ssuprapower) on the forums. We worked all weekend finishing it and finally it runs. Hopefully well get the ignition buds worked out with the haletech soon and post some #s
details of the setup are:
Trust TD07S-25G
Trust tubular manifold
50mm Wastegate - external dump
3.5" 316SS downpipe (stock catback )
2.5" piping from turbo
MR large Intercooler
3" piping from i/c

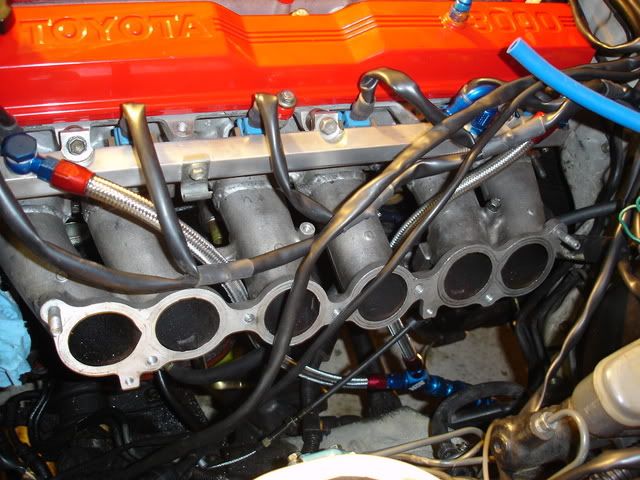

Hybrid 7m/2jz intake manifold
70mm Ford throttle body
Aeromotive A1000 AFPR

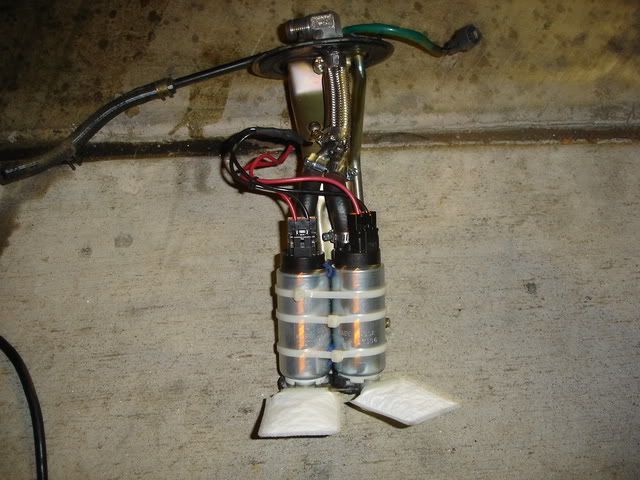

Dual Walbro GS341
-8AN from the tank to dual -6AN feed
780cc PTE Injectors
PLX Devices M-300 wideband
Fidanza f/w (~11 lbs)
Aluminum Jim Jobe driveshaft (~11 lbs)

oh.. and Haltech E6K standalone
_________________
'89 N/A-GTE



[SD2JZA70]

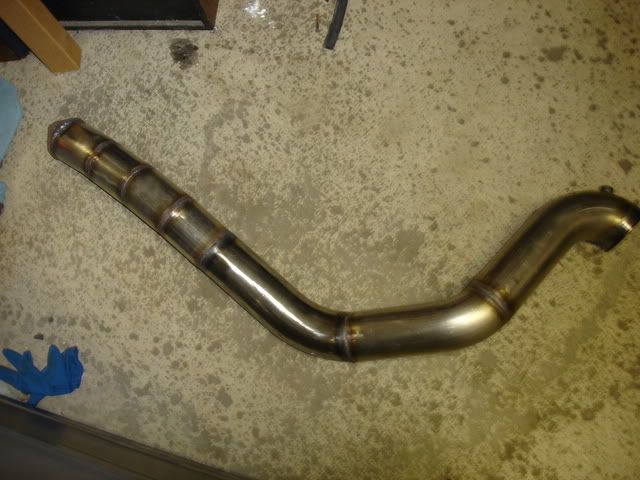

316L stainless steel 3.5 in DP



[JDM PIMP]

damn dude thats pimp , who did the welding?



[SD2JZA70]

I did. I have a nice Tig set up in the garage



[silver88turbo]

Very nice. Let us know how it runs.
