where does these plugs goes to???

[vIetDrIfTeR]

i dont know wtf these wires goes to????bought it like that
HELPP plzz



[Devin LeBlanc]

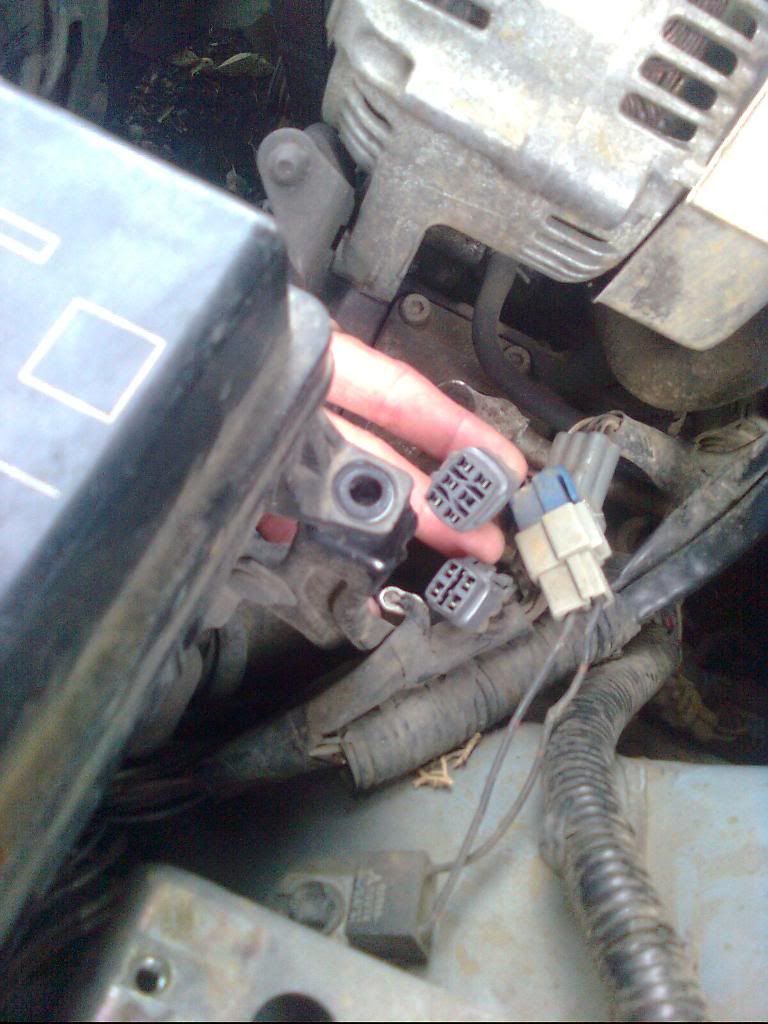

The two near the alternator go to the ignitor which looks like you are missing..

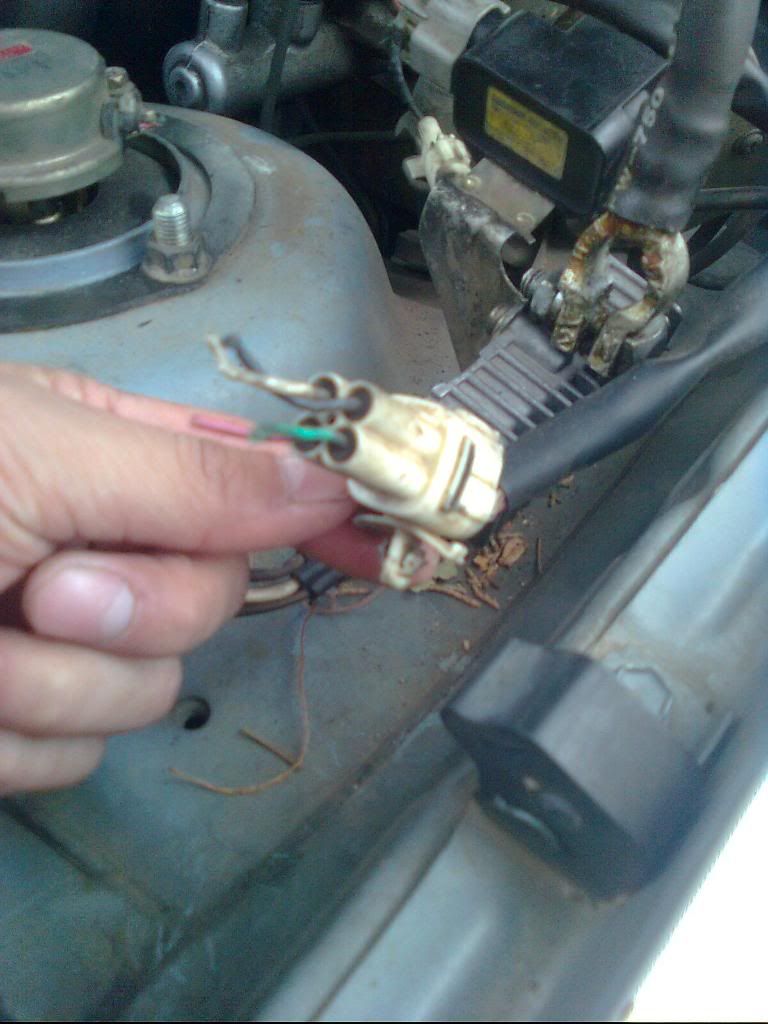

The 4 pin white connector looks to be off of one of the tems actuators on the shocks

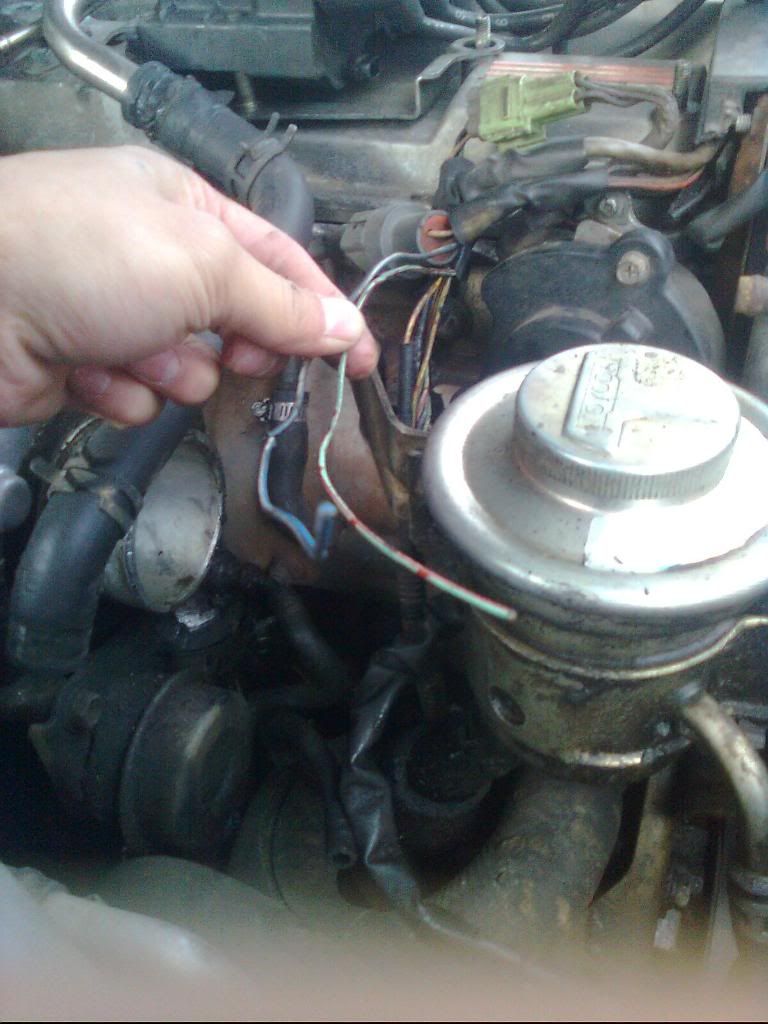

The green with red stripe goes to coolant temp sensor on thermostat housing (There are two the other one that is a single wire is for the gauge cluster temp gauge

The Blue with white stripe goes to the auxiliary fan sensor on the thermostat housing for the big fan in front of the condenser

Hope this helps

Thanks



[laotionracer101]

http://www.cygnusx1.net/Supra/Library/EPC/291410/electrical.aspx that might help, but then again might not..



[vIetDrIfTeR]

The two near the alternator go to the ignitor which looks like you are missing..

The 4 pin white connector looks to be off of one of the tems actuators on the shocks

The green with red stripe goes to coolant temp sensor on thermostat housing (There are two the other one that is a single wire is for the gauge cluster temp gauge

The Blue with white stripe goes to the auxiliary fan sensor on the thermostat housing for the big fan in front of the condenser

Hope this helps

Thanks

yeah i got what your saying imma try it n get bak to u guys.. yeah my car is missin a bunch of shiet n they even cut the wires which is the dumbest shiet ever
thanks in advance



[vIetDrIfTeR]

k more question of where shiet goes

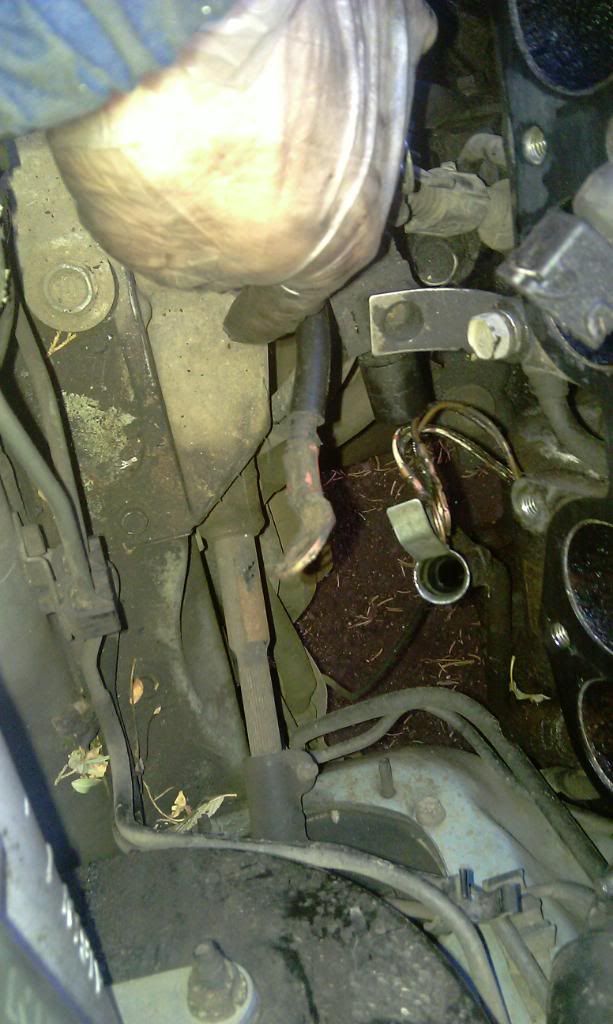

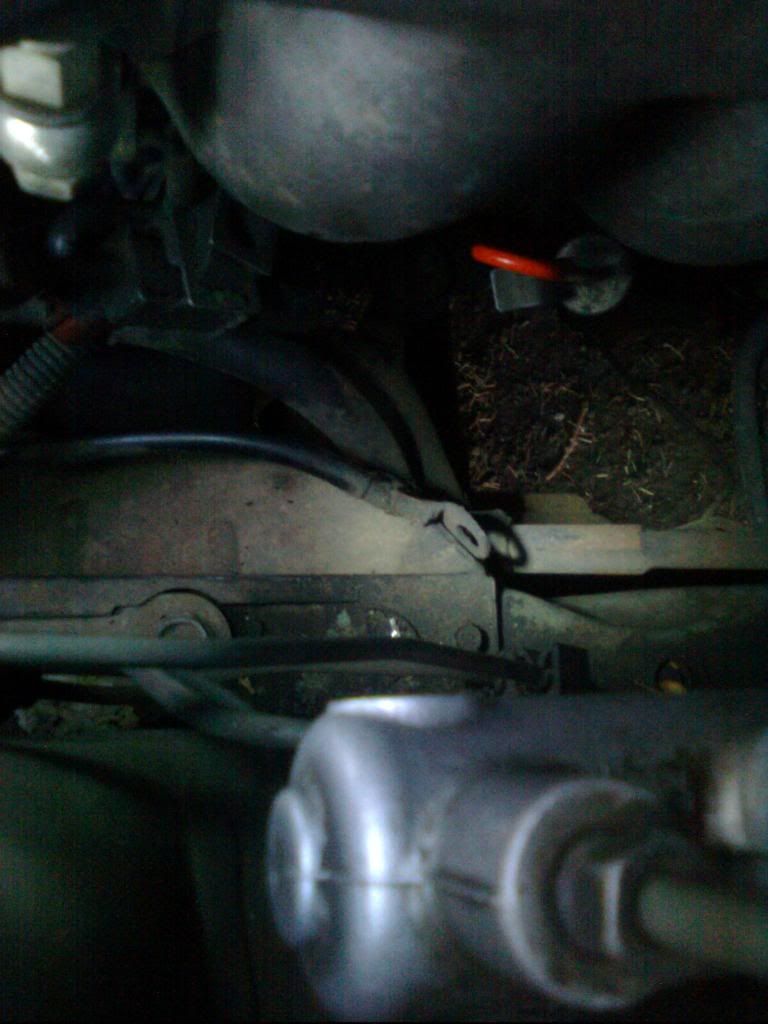

yeah this a positive wire i do not see where it goes n do not see where its suppose to go??

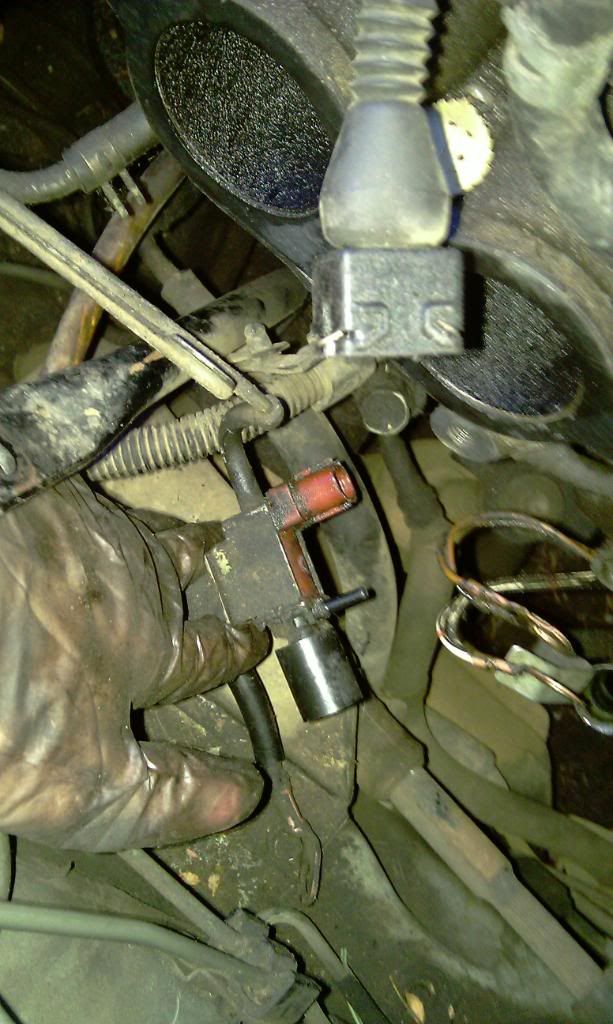

and what plug, plugs into this

i dont see any wire that goes to this?? this car is missing a bunch crap sorry
thanks



[TweeT91109]

k more question of where shiet goes

yeah this a positive wire i do not see where it goes n do not see where its suppose to go??


and what plug, plugs into this

i dont see any wire that goes to this?? this car is missing a bunch crap sorry
thanks

This is a plug for a vacuum line. If its not plugged in it will just throw a code. The vacuum lines should be hooked up though if your running all the stock lines. One goes on the manifold I think, the other is for the fuel rail.

Possibly goes to the starter. But idk where its coming from.



[Devin LeBlanc]

Solid black goes to the block.. Main engine ground



[vIetDrIfTeR]

This is a plug for a vacuum line. If its not plugged in it will just throw a code. The vacuum lines should be hooked up though if your running all the stock lines. One goes on the manifold I think, the other is for the fuel rail.

Possibly goes to the starter. But idk where its coming from.

ya i know the vacumn goes to but what about the red plug??


it coming from the positive battery wire not negative

---------- Post added at 10:44 PM ---------- Previous post was at 10:42 PM ----------

Solid black goes to the block.. Main engine ground

there already one on the block..this wire is a positive wire

and ps my car does not crank either



[jdmfreak]

do you have a starter???



[vIetDrIfTeR]

i think so... didnt really check but it should be there lol is it on the passenger side or driver side??



[SC61 MK3]

lol starter should be on the driver side under the intake manifold back towards the firewall



[Chaingun]

The red plug is for the vacuum sensing valve connected to the EGR, if you don't have and EGR in this car you may conisder removing it and blocking off the line, if not reconnect it, Since it appears the lower intake is off of the car you should be able to see a big hole on the driver side of the block, this is where your starter should go, if you don't see the big hole there you have a starter and the large wire should connect directly to it.



[vIetDrIfTeR]

k thank you for you guys help. really appreciated i will check back on you guys on the connections



[radiod]

Starter is under the intake.
