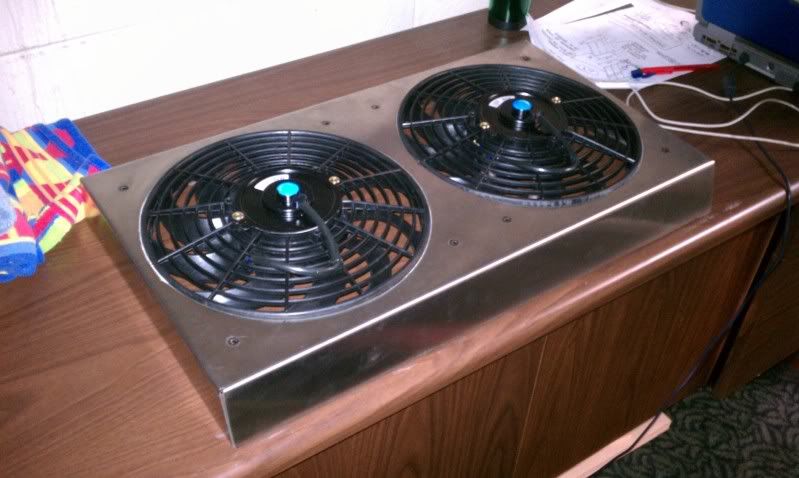

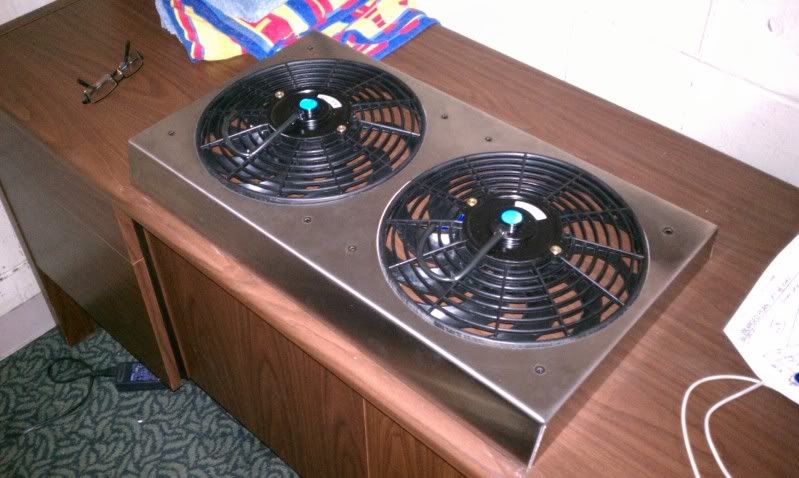

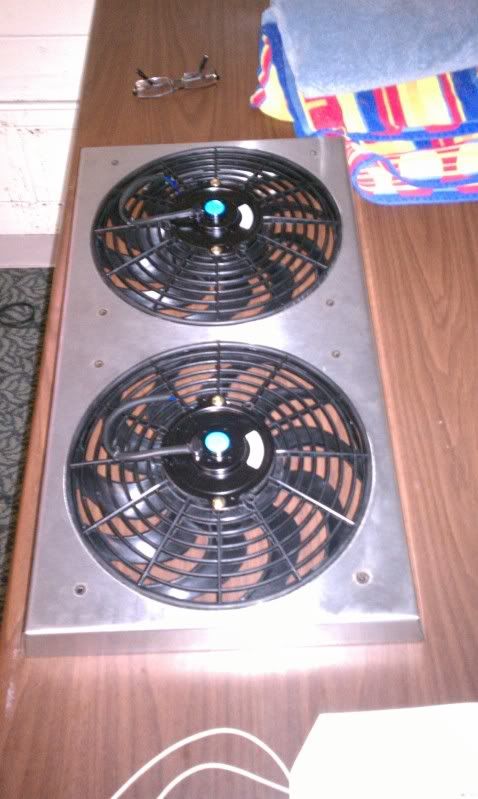

Hey guys I am looking at producing a bolt on twin electric fan and shroud kit. Kit will just require very simple wiring to connect power to the thermostats! This is a group buy feeler and I will have pictures of the first one in the next 2 weeks but it will look very similar to the AA Motorsports for the MK4 one seen here:


The kit will include:
-Bolt on CNC Aluminum radiator shroud(not a flat shroud but a stood off shroud with sealed perimeter to draw air through the entire radiator not just the fan area like flat shrouds!)

-Dual "S" Blade 1250CFM puller fans(they are reversible but kit is designed to have them as pullers.)

-Twin thermostats
+One static at 180 degrees
+One adjustable from 150 degrees to 240 degrees
This will allow you to stagger them so they don't both come on and flash cool the radiator and they shut right back off. So one will come on at 180 and the second will only come on if necessary!

-Wiring diagrams

Unpolished: $275
Polished: $350
Powder Coated: $335

Shipping: $35 in lower 48

I need a minimum of 20 for this pricing. If I can get 50 to agree ahead of time the prices with get even better!

Thanks,
Seth


te72

Classifieds Moderator
Staff member
Mar 26, 2006
6,607
4
38
40
WHYoming
Just FYI, it would probably help your cause to post up dimensions, or get different people to test fit various setups. I can speak from experience in saying that having a JZ and a PWR radiator *really* limits your options because of how thick the radiator is...


sethron71

Authorized Vendor
Jul 19, 2005
871
0
16
40
Las Vegas, NV
www.SethIngham.com
The system is 3.5" at the tallest point. Fans themselves are 2.8". Let me know how close the nearest pulley is on your JZ. Mine dimension and design are based off my 7M with the Mishimoto Radiator.

Thanks
Seth


te72

Classifieds Moderator
Staff member
Mar 26, 2006
6,607
4
38
40
WHYoming
sethron71;1725528 said:
The system is 3.5" at the tallest point. Fans themselves are 2.8". Let me know how close the nearest pulley is on your JZ. Mine dimension and design are based off my 7M with the Mishimoto Radiator.

Thanks
Seth

With a PWR and 1jz, I have *roughly* 3.25" before I could foresee interference with the water pump pulley. Would depend on placement of the fans in relation really. Wish I were closer, I'd help ya test them out for sizing. Good luck with the group buy. :)
