SAFC Wiring Diagram for 89-92 Supra NA and Cressida

[7mge-t_cressida]

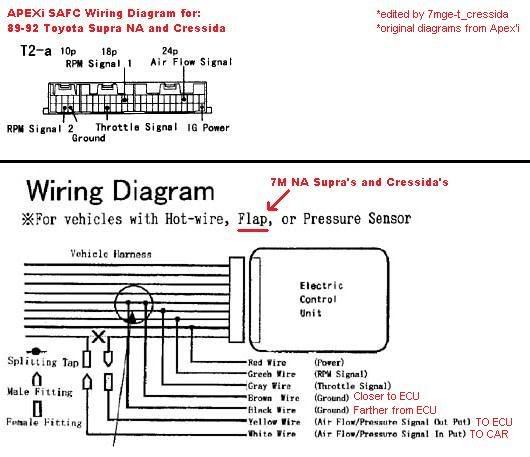

I've seen some posts in the past for diagrams and have seen some crude yet useful diagrams on SM so i figured i'd help clear most of the questions of how to install the A'PEXi SAFC into our "unsupported" 7mge powered Supra's and Cressida's. Enjoy!

Maybe it'll be sticky material lol.



[CRE]

We need a section devoted explicitly to wiring diagrams. I'm working on a few at the moment myself. Props for giving back to the community like this!



[isnms]

[strike]Also note that sensor type is PR-3[/strike]

Removed for possibly incorrect information.



[7mge-t_cressida]

Yep this is definitely sticky material now. I like that idea of a wiring diagram thread. Kind of like the parts review section. A thread with a list of parts w/ the applications and differing diagrams. I'll see if i can make any other threads about wiring diagrams.



[Tire Shredder]

i'm bringing this thread back from the dead because I believe it may be incorrect.

can anybody confirm the correct "sensor type" and "sensor number" setting? I assume this would be the same for a pre 89?

PR-3 seems incorrect as it denotes a MAP style (PR for pressure) sensor.

I would expect to see "FL - x" of some number. Perhaps FL-4? I hear the AFM version of the 4AGEs have AFMs that are interchangable (although incorrectly sized) with an N/A supra. and they use FL-4.

looking for confirmation from somebody that has done this! Thanks,
Steve



[Chambers]

I have been running the original safc on my pre-89 auto GE.
Sensor type: Flap - 01 In & 01 Out
Car select: 6 Cyl and the arrow going up to the right for Thr

I'm pretty sure that's all that needs to be changed.



[gofastgeorge]

Same here, except......
I run flapper-4.



[Tire Shredder]

thanks very much guys! glad we cleared this up. I'll keep you posted on my progress.

Hopefully I'll be on the dyno next week.
