My 7M camshaft profile measurements

[amichie]

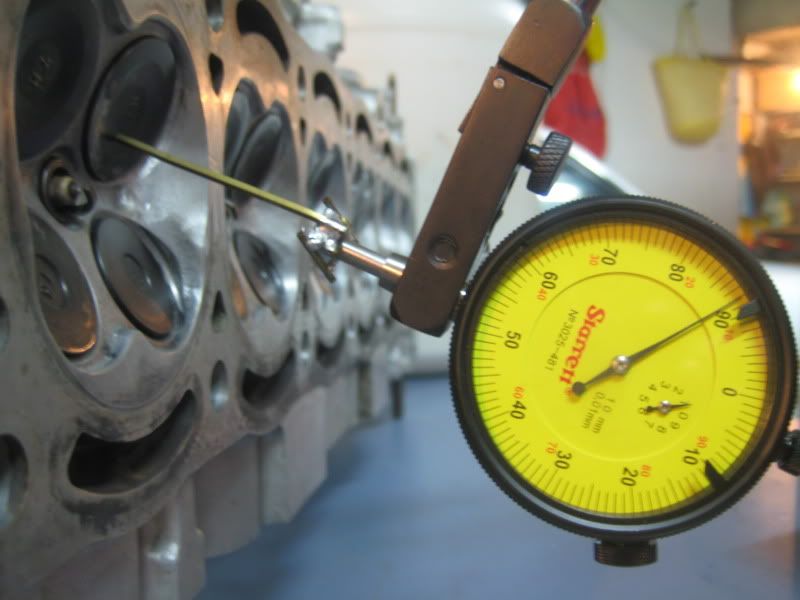

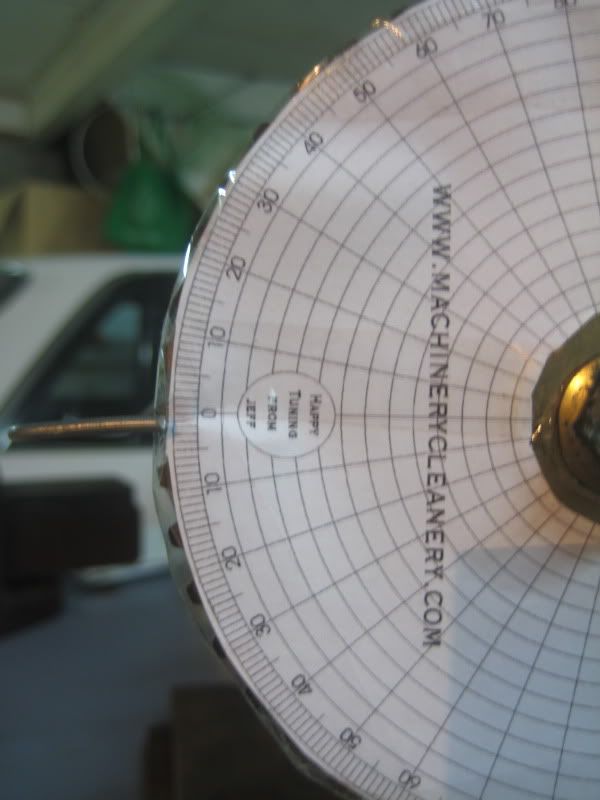

Measured by me.

My BC stage 2 intake cam is in the car ATM. I will measure it when I pull it out.

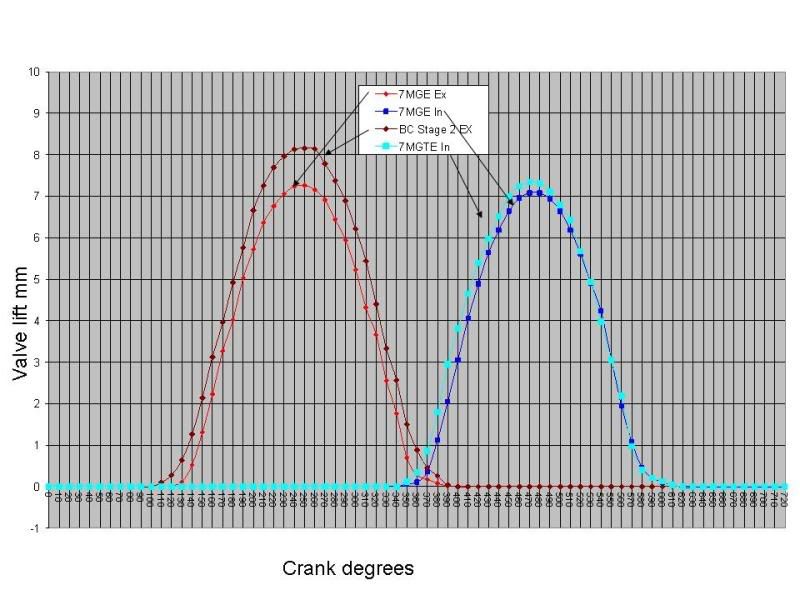

Looks like the 7MGTE intake cam has more lift and about 10 degrees more durataion than the NA cam.



[gofastgeorge]

I have seen a fixture, with rotary encoder, and a digital dial indicator, that all feeds into a PC to do that much easier.
But it costs way too much for me........



[Zumtizzle]

thanks

i needed that. we have GE Cam threads every week on SF.

http://www.supraforums.com/forum/showthread.php?p=7301259#post7301259



[dumbo]

thanks

i needed that. we have GE Cam threads every week on SF.

http://www.supraforums.com/forum/showthread.php?p=7301259#post7301259

Nice to see some numbers though. Would like to see the BC Stage 2 intake though. And maybe the stage 3 BC



[amichie]

Nice to see some numbers though. Would like to see the BC Stage 2 intake though. And maybe the stage 3 BC

I dont have a stage 3 and my stage 2 intake cam will not be out for a few weeks yet at best. I will measure it and post it up here eventually.
