Help: Need part #s to finish my 2jzgte vvti swap in my 89 MK3

[AE86BLISS]

I've been looking and still have had no luck.

I need the part #'s for..

2jzgte rear sump set up - Oil return flang and the 2 oil return rubber lines.

2jzgte - alternator harness plug.



[steve_mk3]

Upper and Lower Oil pans w/ required bolts – From Elmhurst Toyota
12111-46052 Pan Upper List 358.79 Cost 273.94 X 1
12102-46031 Pan Lower 127.81 Cost 97.59 X 1
90430-12031 Drain Plug Gasket List .98 Cost .73 X 1
90341-12012 Drain Plug List 3.66 Cost 2.71 X 1
96721-24031 O Ring List 2.54 Cost 1.88 X 1
91512-b1055 Bolt List 1.18 Cost .87 X 6
91511-j0820 Bolt List .71 Cost .53 X 16
90116-06127 Stud List .71 Cost .53 X 4
90119-06624 Bolt List .80 Cost .59 X 23
90182-06257 Nut List .49 Cost .36 X 2
00295-00103 Fipg Pan Sealer List 12.78 Cost 9.36 X 2

-Oil pan baffle – 12121-46030 List 13.83 Cost 10.57 from Elmhurst Toyota

-Oil Pickup tube w/ gasket & bolts - from Elmhurst Toyota
15104-46030 List 48.93 Cost 37.36
90182-06005 Nut List .55 Cost .41 X 2
91621-60612 Bolt List .60 Cost .44 X 1
15147-ad010 Gasket List 2.40 Cost 1.77 X 1



[AE86BLISS]

I have the rear sump setup. I just need the oil return lines and the flang they connect too for the turbos.



[hvyman]

It's not all the same as the non Vvti 2jz?

If it is champion or elmhurst Toyota on sf can get that. I don't see why it wouldn't be the same.



[AE86BLISS]

It's not all the same as the non Vvti 2jz?

If it is champion or elmhurst Toyota on sf can get that. I don't see why it wouldn't be the same.

I'm not saying it may or may not be the same. I'm just looking for the part #'s before I call Elmhurst. Last time I called and didn't have a part #, who ever it was I talked to gave me a hard time.
The reason I need the oil return flang and two oil lines is because I had a front sump and when I did the swap to a rear sump I didn't have the flang and the 2 rubber oil return lines that come from the turbos to the flang.

I also need the Alt harness plug, I never got mine back from Dr.Tweak when he did my harness.

After I get these 3 parts I should be able to turn my key and start this beast for the first time sence I got the 2jz in it.



[AE86BLISS]

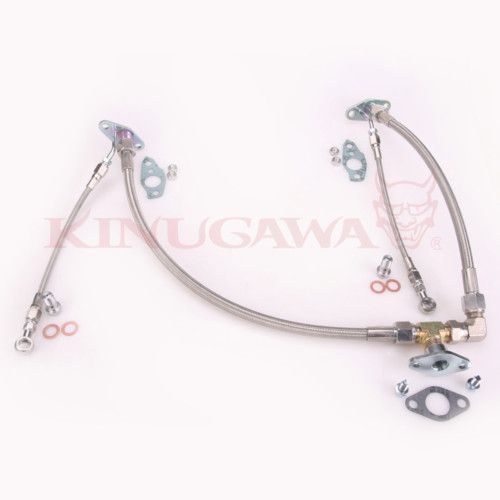

Well seeing that no one knew the part #s, and I can't find them. I went another way. Here is what I came up with.

I still need the 2jzgte - alternator harness plug.
Please if any one knows help me out.
