1jz turbo oil feed?

[chuckmuska2005]

I got an aftermarket oil feed line for my turbo and don't know where to install in on the motor. I figured I'd use one of the factory feed holes but my fitting is too small. I've heard of running a line around to the filter location but I don't want to run all that line. If you guys could throw up some pictures of where you installed yours and what you used it would help me alot.



[annoyingrob]

What's wrong with the factory feeds?

Use a 10x1.25mm to -4AN adapter (or -3AN dependign on how big your oil line is), screw it into the block, and screw your oil line to that.

Sorry, best picture I have.



[tissimo]

What's wrong with the factory feeds?

Use a 10x1.25mm to -4AN adapter (or -3AN dependign on how big your oil line is), screw it into the block, and screw your oil line to that.

Sorry, best picture I have.

They're 12m 1.25.



[chuckmuska2005]

I thought it was M12x1.25??



[annoyingrob]

whoops, sorry. 12x1.25mm.

Anyways, just get an adapter from that to whatever your oil feed is. Now that I re-read it, I have a feeling your feed is threaded 3/8" NPT?



[chuckmuska2005]

Not completely sure, I'm going to summit racing and getting the fitting I need.



[Panchira!]

summit does not have the fitting you need its a whact size.....anyway heres what the -3an sized one looks like if your going single use the front feed and block the rear oil hole:

heres a goodridge fitting part # its a -4an M12x1.25: 305-04-M122 and this (i think) is a -3anx M12x1.25: # 305-03-M122



[tissimo]

summit does not have the fitting you need its a whact size

summit offers a 12m 1.25 ->4an fitting.



[annoyingrob]

yeah, the summit ones are in a funny spot, like carb adapters or something, but they do have them.



[Panchira!]

ohh sweet. well i didnt use a -4 due to it over oiling the turbo(and they didnt have it at the time too) but good news none the less i found the one your talking about on summit, heres the link:

-4AN by M12x1.25



[chuckmuska2005]

I got the -4an fitting from summit, I had to bore out the small hole in the feed flange to the turbo to a slightly larger one. Another question, since im running the -4 feed line on my gt45 setup, could the -4an cause it to over oil the turbo? I do have a -10an return.



[chuckmuska2005]

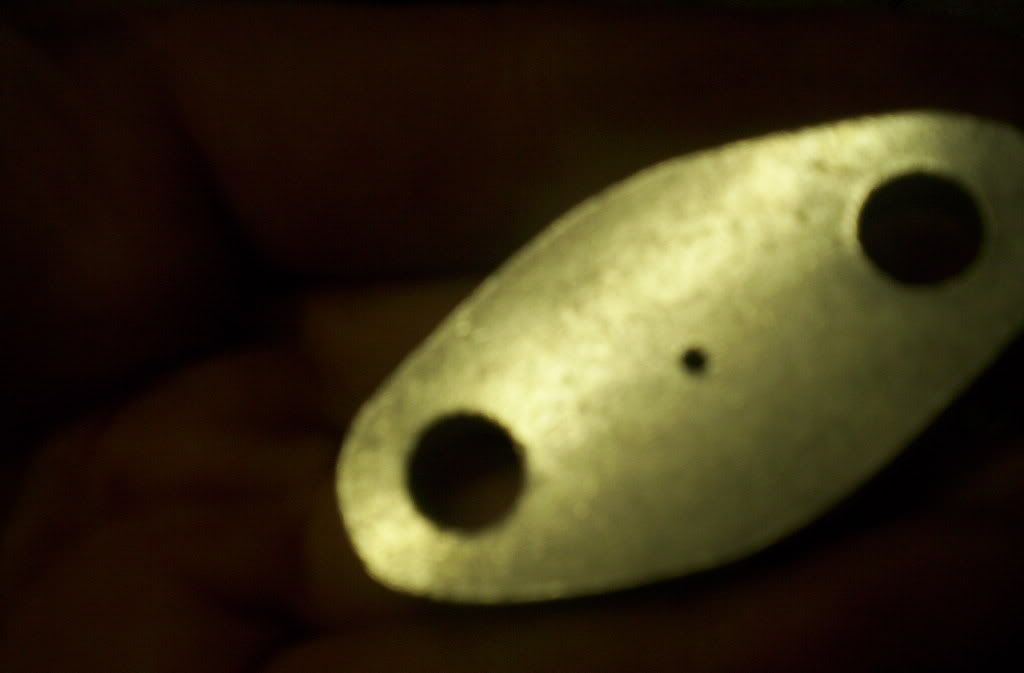

Here's a pic of the feed flange to the turbo before it was bored out.

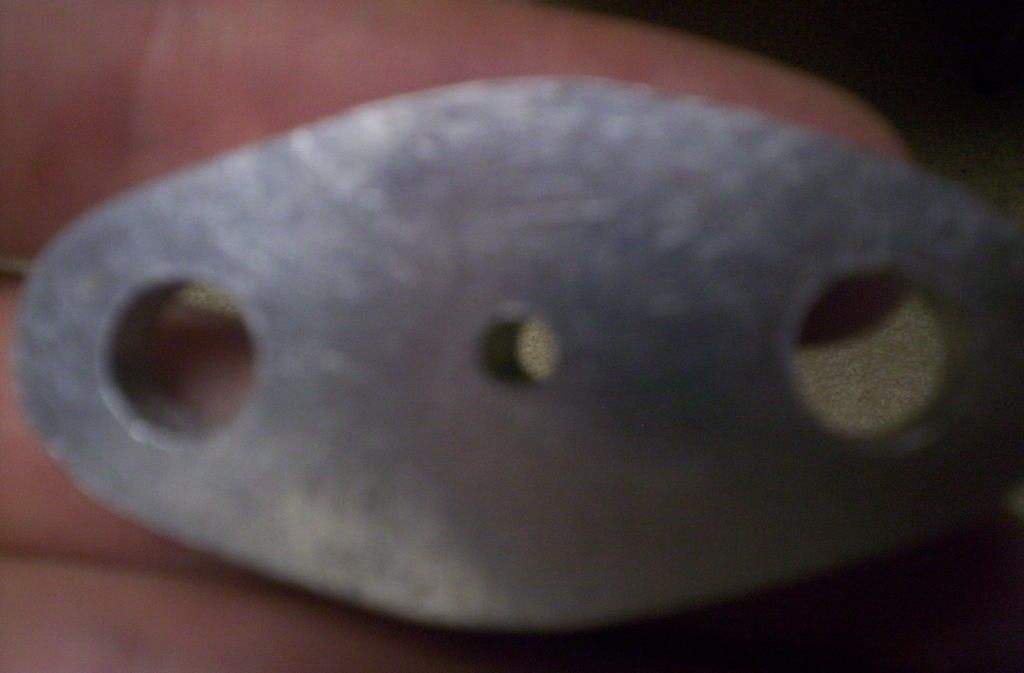

And after,



[tissimo]

is the gt45 ball bearing? ball bearing turbos need less oil pressure/flow then a journal bearing turbo, thats why theres such a small hole in the flange.

If its a journal bearing then itll be fine. I ran a -4 without issues.



[chuckmuska2005]

Considering what I paid for the turbo, I'm believing it to be journal bearing.



[Gritz]

I need the answer to this also, as my oil feed flange has the same size hole; i have a 62-1...



[annoyingrob]

I run a -4AN on my GT40.



[chuckmuska2005]

I run a -4AN on my GT40.

No problems?



[annoyingrob]

Nope.
