safc and fcd installed together or no

ahmed

New Member
Jan 31, 2009
150
0
0
cleveland
i have and safc installed and when tuned i can run 20psi+ without hitting boost cut/fuelcut.. since i changed stuff up a bit and no longer 100 percent tuned im hiittin the wall feeling.....

i have an fcd and wondering do i install it and if so how. before the safc wires or after. meaning closer to the ecu or farther.


rayall01

New Member
Oct 10, 2008
901
0
0
66
Westfield, ma
I posted this earlier, on a similar thread:

Well, you're also hoping for a blown head gasket, rod knock, and maybe even a hole in your piston. How many times do you have to read that a FCD is a time bomb waiting to go off, before you get it? Fuel cut keeps you from doing something dumb, and blowing up your engine. Go ahead, use the damn thing, and while you're at it, remove the brakes too. They just add needless weight, right?

NO FCD!


gofastgeorge

Banned
Jan 24, 2008
944
0
0
Texas
A bad tune, is a bad tune.
Blaming an FCD because you failed to tune your car propperly in the first place is lame.
Pleanty of 7Ms blow without ever having an FCD near them,
just because the build/tune was off.

Bottom line,
If your going to play 'Tuner' with a turbo car,
you had better learn how to actually do it.

This includes having the correct gauges to play the game.
Not going by what someone says to run for fuel pressure,
or what someone else says to set your S-AFC to.

At the least, a good A/F ratio gauge, like a GReddy or Tomei.
Stay away from the el-cheapo 'rich-lean' gauges.
They are menat for carburetted V8s, and don't read into the super rich areas that a turbo car requires.
And exhaust temp, and injector duty cycle meters doesn't hurt anything either.

Work your way up to full throttle runs in stages, and watch the meters.
If you see lean-out areas, back off the throttle, and tune them out.

If you reach the high end of the the adjustment range with the S-AFC,
increase the fuel pressure, and start over.


rayall01

New Member
Oct 10, 2008
901
0
0
66
Westfield, ma
gofastgeorge;1352387 said:
A bad tune, is a bad tune.
Blaming an FCD because you failed to tune your car propperly in the first place is lame.
Pleanty of 7Ms blow without ever having an FCD near them,
just because the build/tune was off.

Bottom line,
If your going to play 'Tuner' with a turbo car,
you had better learn how to actually do it.

This includes having the correct gauges to play the game.
Not going by what someone says to run for fuel pressure,
or what someone else says to set your S-AFC to.

At the least, a good A/F ratio gauge, like a GReddy or Tomei.
Stay away from the el-cheapo 'rich-lean' gauges.
They are menat for carburetted V8s, and don't read into the super rich areas that a turbo car requires.
And exhaust temp, and injector duty cycle meters doesn't hurt anything either.

Work your way up to full throttle runs in stages, and watch the meters.
If you see lean-out areas, back off the throttle, and tune them out.

If you reach the high end of the the adjustment range with the S-AFC,
increase the fuel pressure, and start over.

A good tune is a good tune, There are plenty of cars pushing big boost, and high power without the use of a needless and dangerous piece of hardware. The danger, especially for inexperienced modders, is that a FCD will give them a false sense of security, and push them into doing something dangerous. As a good tune is achievable without using one, it is safer for all, to discourage their use.


ahmed

New Member
Jan 31, 2009
150
0
0
cleveland
installed it. still cuts out at anything over 22 psi.... but with the safc i was able to tune it with 25 psi without the fcd. im using settin number 9 the other ones made me go very lean.


ahmed

New Member
Jan 31, 2009
150
0
0
cleveland

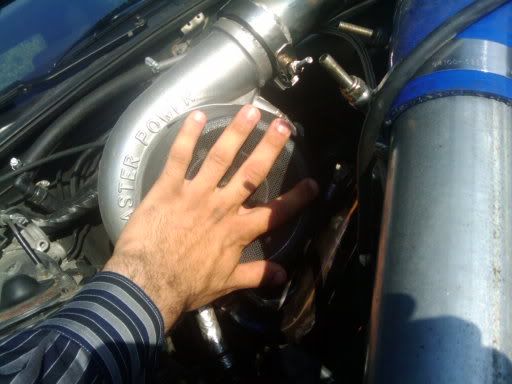

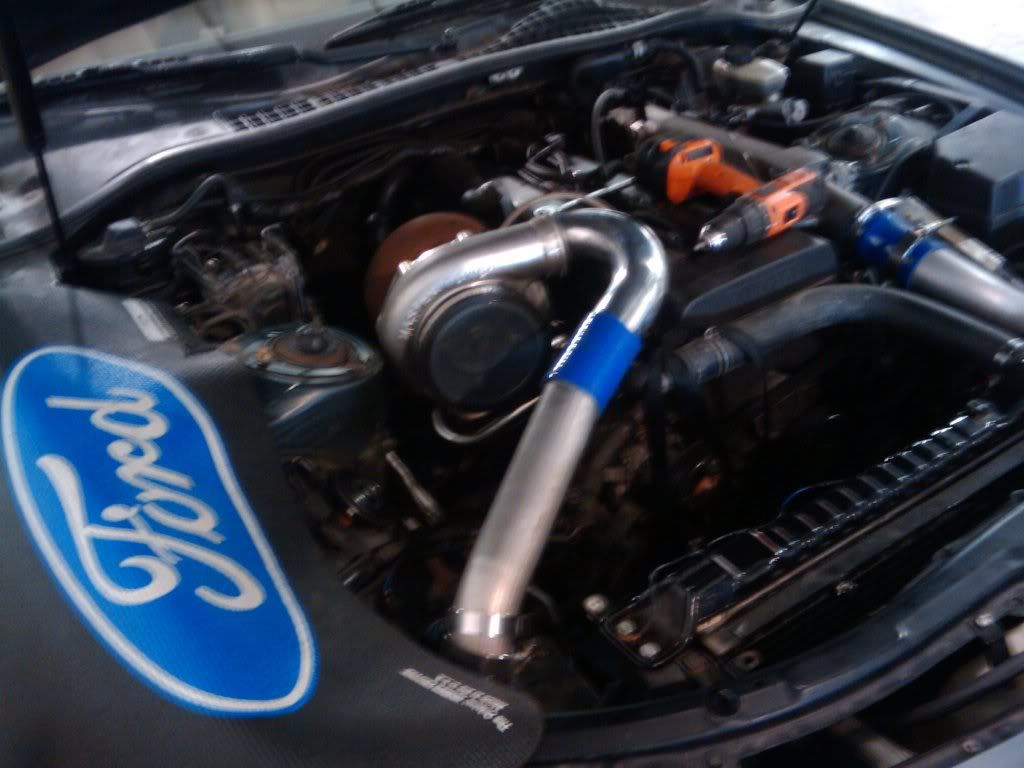

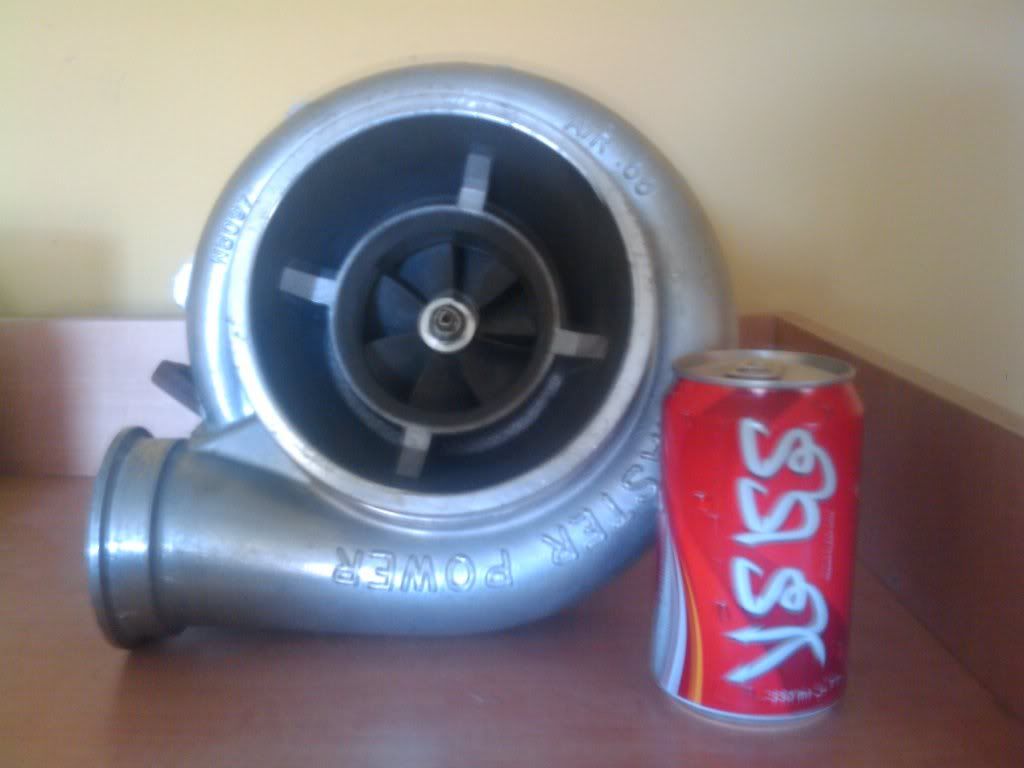

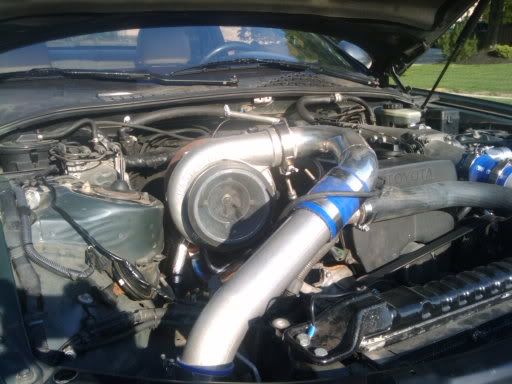

i have a turbo thats just way too big. master power gt45 but its a 67mm wheel. hot side is a 1.25..






rayall01

New Member
Oct 10, 2008
901
0
0
66
Westfield, ma
gofastgeorge;1352654 said:
So I am lousy at multi-tasking..........
Or maybe it's an early onset of alzhiemers :nono:

Hey! No fair editing your castle post, alzhiemer man, trying to make yourself look good, eh?:3d_frown:
