My new style gauge cluster with all new LED lights and some custom stuff also!

[SupraClaou]

Hi guys!
I always wanted to renew my gauge cluster lighting. Also wanted to add some more warning lights
that my engine system supports like 'oil level' , 'oil pressure' 2nd 'brake' (for brake fluid), 'coolant level'
(which wasn't available for euro spec mk3s), 'digital voltmeter' (only N/As had a stock analog voltmemter),
and last a cool 'Parktronic' for the rear. Also added the 86'-88' centrer glass (the one with the Anti-loc,check engine,
rear tail lamps failure,door ajar and TEMS cause it lights with the other instrumentation. I also add the
Super monitor to make it more high tech! Last, I did placed the Clifford alarm led inside the cluster.

Took off my gauge cluster.

Cut some holes to make space for the warning lights.

Installed everything inside the cluster.

All circuits and plugs were done properly.

Here is the 'oil level light',above the 'coolant level' and the 'Brake'.

The rear 'Parking sensor display'.

On the right side you can see above the 'Battery charge' the Dig 'Voltmeter' and the 'oil pressure'.

A much wider view (super monitor,left/right warnings along with the parking sensor display.

The LED that were used are SMD style crystal ice - white. 5 SMDs on every bulb (5W style)
It looks very nice...but in the night the camera can't record the cool blue flavour.

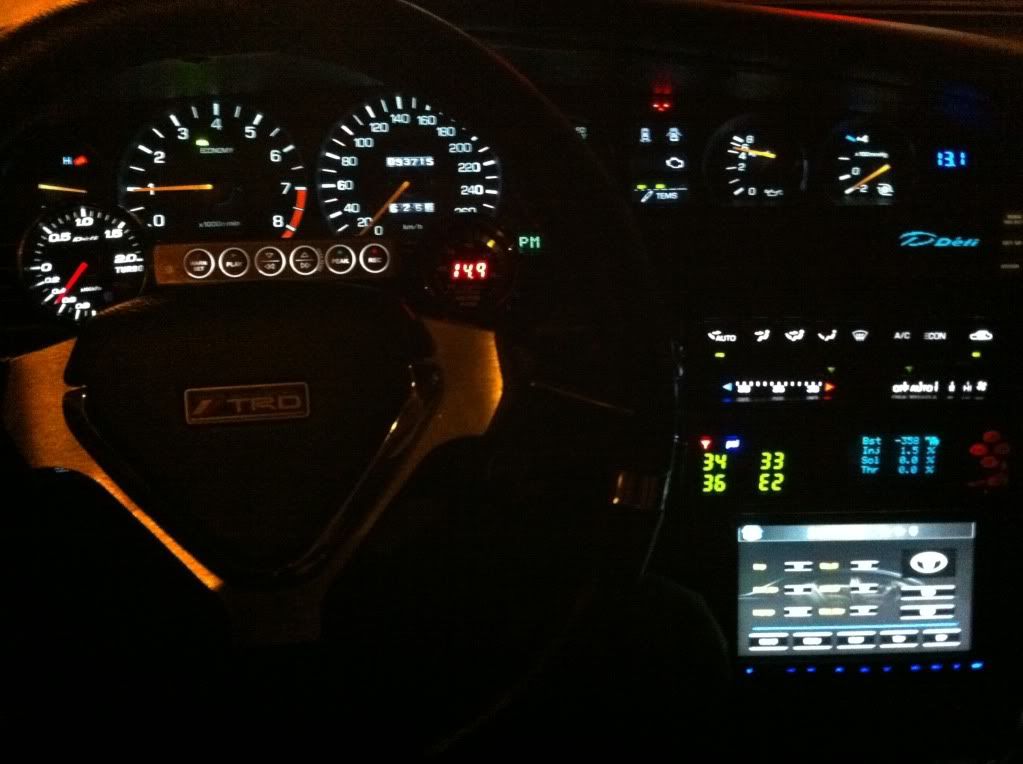

Night view...



[SupraClaou]

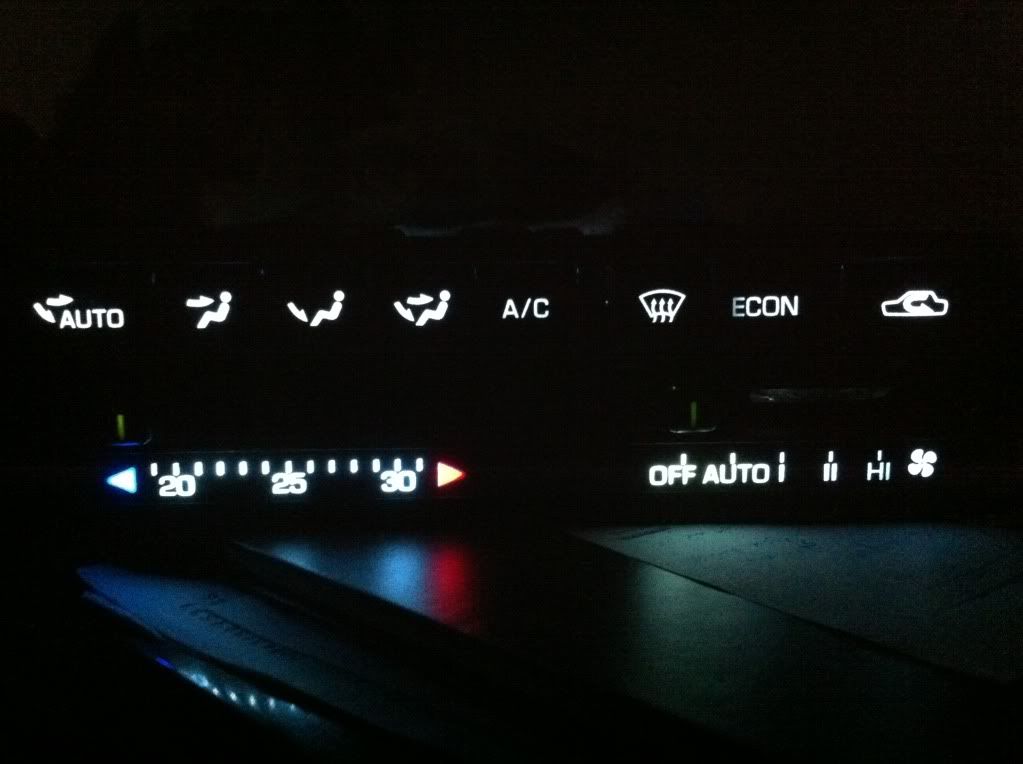

Also changed the climate control lighting with white LED .

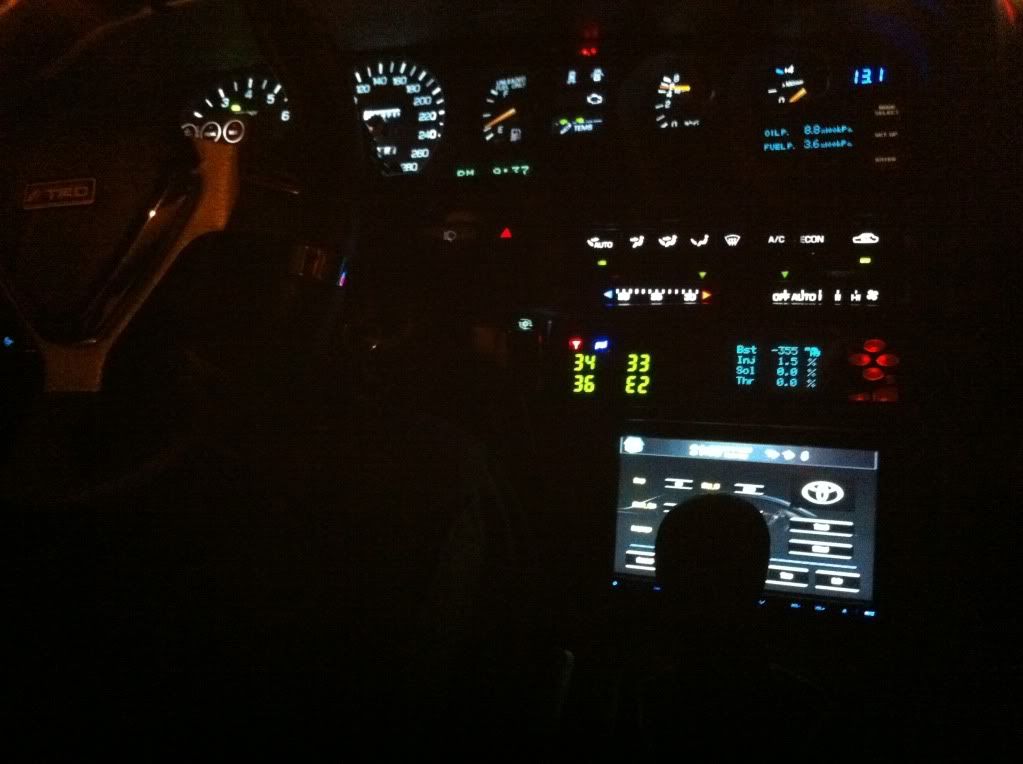

Final parts on the car installed and finished..



[Turbo Habanero]

That looks great much better then stock



[rakkasan]

That look awesome, great work! Very clean and looks factory.



[SupraClaou]

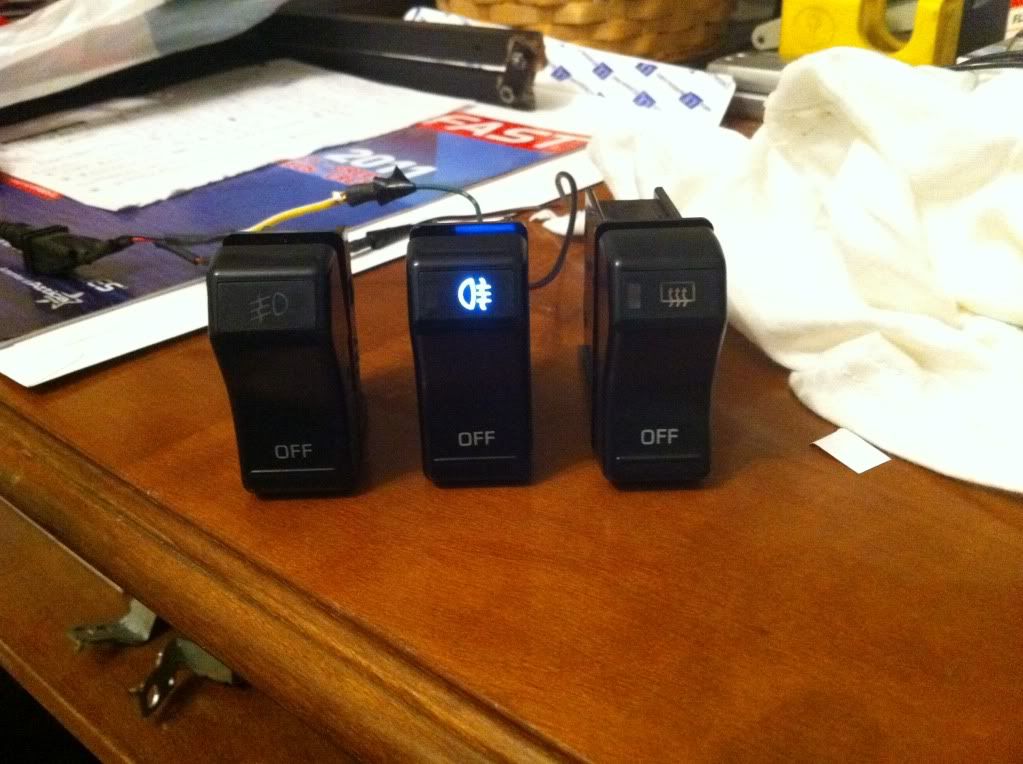

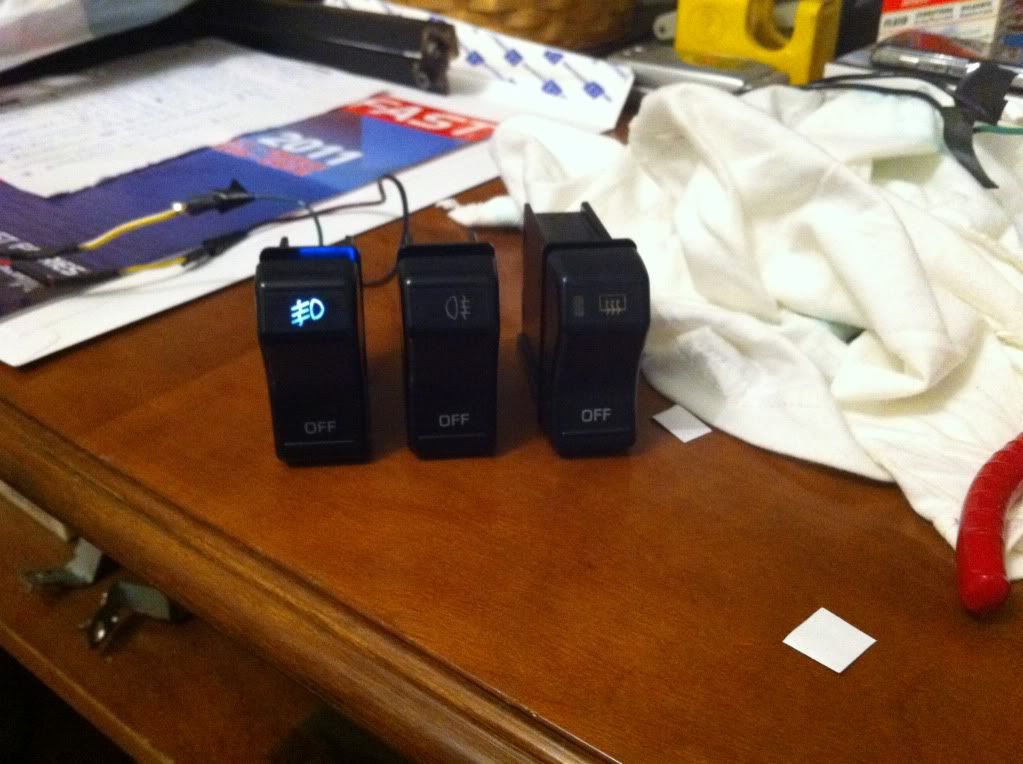

Also added LEDs 1.2W style,to all switches...
Here are some of them. They look much better!



[jfreeman]

super high tech looking, like the cockpit of a jet or something lol. very cool!



[mk3_7m]

0oooo I like yours. Very nice

Mine are shiney and bright where as yours are much clear and just the right brightness.



[SupraClaou]

0oooo I like yours. Very nice

Mine are shiney and bright where as yours are much clear and just the right brightness.

Can you adjust the brightness? They look cool..you just have to adjust them!



[JetBlackNewYear]

Drool. Where did you get the LEDs for the cluster?



[te72]

Man, talk about sensory overload! Looks great man. Am I mistaken, or are there 2 different "dummy lights" for the oil? Or is one pressure, the other level? That would make sense...



[SupraClaou]

Drool. Where did you get the LEDs for the cluster?

Ebay...LOL



[SupraClaou]

Man, talk about sensory overload! Looks great man. Am I mistaken, or are there 2 different "dummy lights" for the oil? Or is one pressure, the other level? That would make sense...

Thanks! One is for oil pressure and the other one is for oil level...
And ofcaurse I have the stock analog oil pressure gauge in the cluster,but I also have a Defi Display
with an oil pressure digital sensor for 100% accuracy along with low pressure warning / real time recording data.



[akito]

Do you have the link to the exact bulbs that you bought for the LED?



[Greek]

I'm really loving the crisp white. So much better than green.



[Nihiliz]

That is so amazing dude.



[mecevans]

Looks bad ass, nice work.

Did Euro models get an oil level sensor? What is that other switch with 0-1-2-3 on it?
I want to build in the led for my boost gauge and a low oil pressure warning. Something simple that is triggered by the alternator signal when the key is on.



[BoostMonger]

how easy is this to do? i realllly want to make mine blue also



[SupraClaou]

Do you have the link to the exact bulbs that you bought for the LED?

Bought them 3 months ago...but I will try to find the link and post it.



[SupraClaou]

Looks bad ass, nice work.

Did Euro models get an oil level sensor? What is that other switch with 0-1-2-3 on it?
I want to build in the led for my boost gauge and a low oil pressure warning. Something simple that is triggered by the alternator signal when the key is on.

Thanks man. Euro models got the oil level sensor on 91-92 7MGTE models only. I have a 2JZGTE that had it as standard,as well as the 1JZGTE.

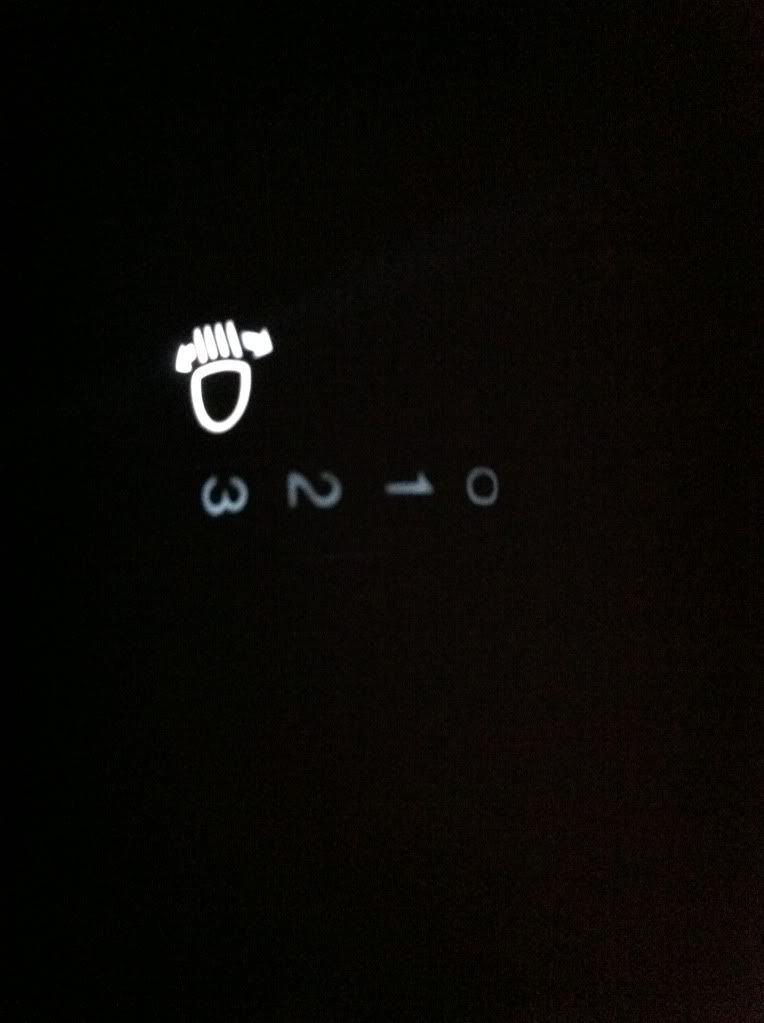

The 0-1-2-3 switch is a switch that adjusts the level/inclination of the headlight bulb. Only on Euro spec mk3s...I think.
You can get the low oil pressure warning sensor from a mk2 supra,very easy to install it. You just need to make a nice indication sheet,I got it again
from a mk2 supra! I wanted to be from the Supra family ! It is triggered from a power cable by the IGN+ (ignition switch). When you put the key in the
ON position the 'low oil pressure indicator' bulbs lights cause there is no oil pressure yet..and when you start the motor then after about 1 second it goes off.
So simple...



[SupraClaou]

how easy is this to do? i realllly want to make mine blue also

It is not hard to do... You need five LEDSs of 5W bulbs style. Stock cluster takes 4... 5W style bulbs and 1... 1.2W style bulb
which is behind the oem oil pressure gauge. You just to drill a bigger hole for to replace the small 1.2W style with the bigger 5W bulb.
