1JZ wiring, some questions

[RWHP]

Im about to get started with the wiring for my swap, but im confused..

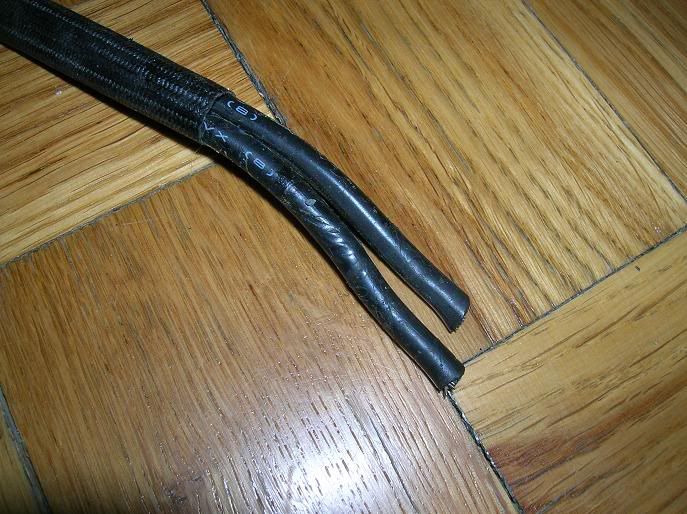

These 2 fat wires goes frm the alternator, ground?

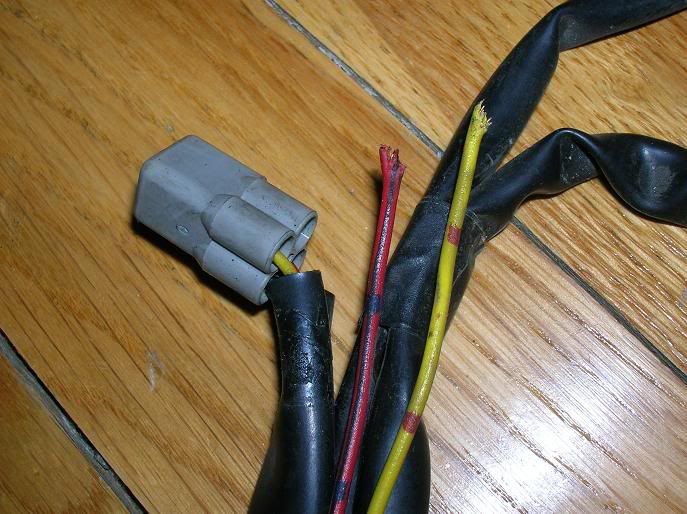

These red/yellow wires goes to the gearbox?

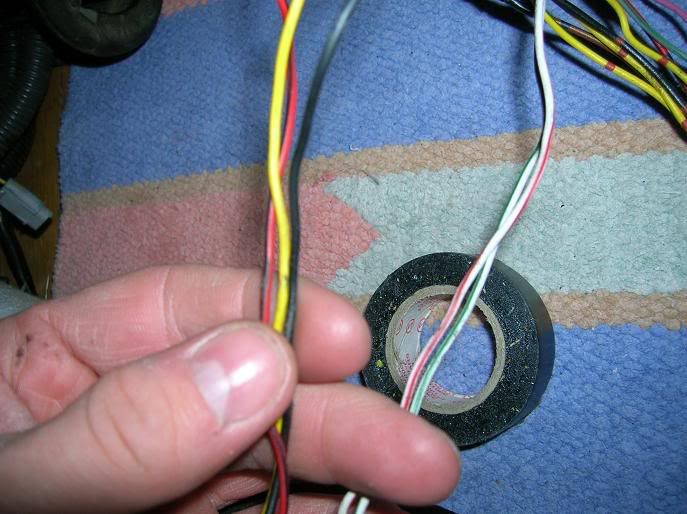

These 3 to the left from the 7M harness are the ABS wires if i have gotit right?

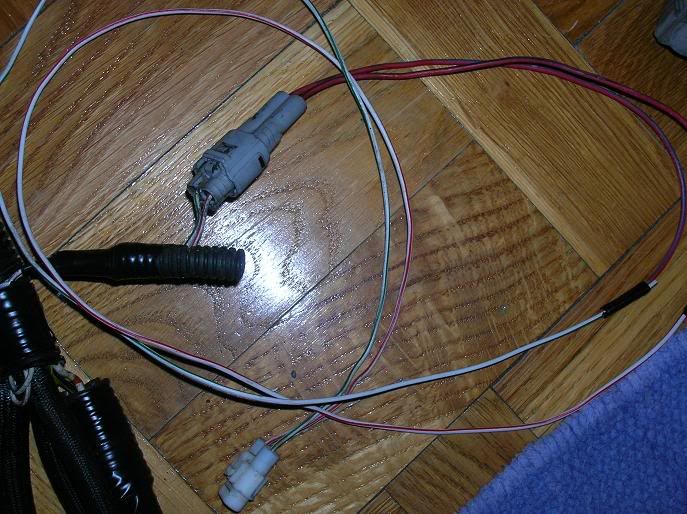

Think these 2 wires that where cut goes to the power steering +/-, correct?

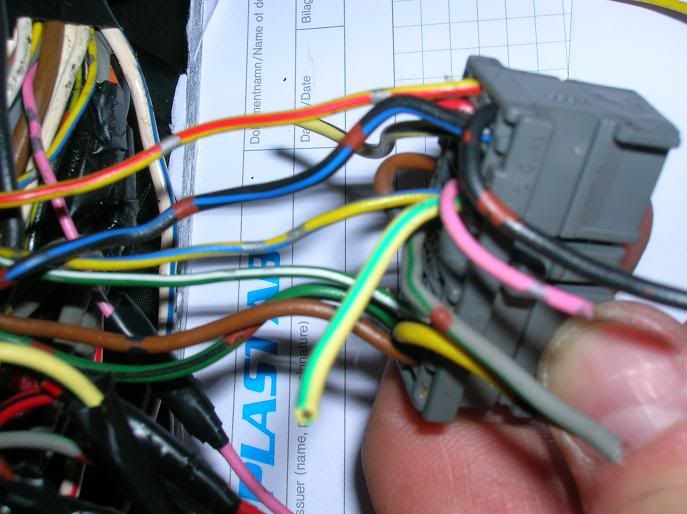

Anyone knows where i can find a wiring diagram for the wires that goes to the fusebox, the big one to the right is from the 1J harness and the 4 connectors the the left are from the 7M. 7M has 16 wires but the 1J only has 12..

This purple wire from the 7M harness cant find a home on the 1J harness

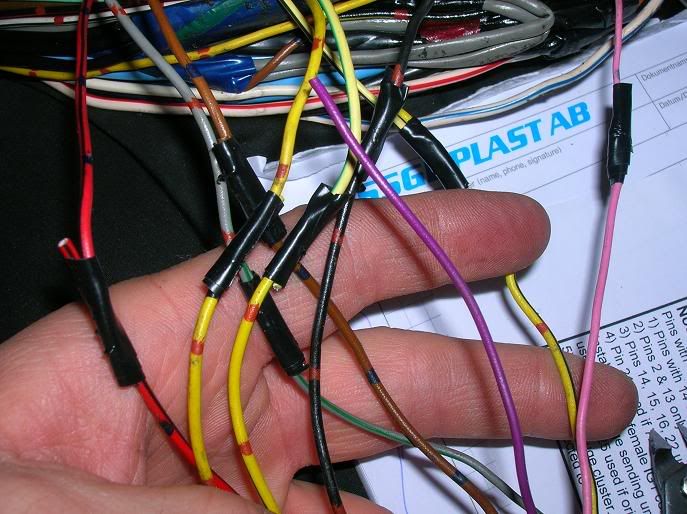

Here are some wires left over, is it just to cut them since they are for cat temp sensor, egt temp sensor and for the digital dash that is on some JZA70.



[JonoTurbo]

Those first two big wires connect from the alternator to the black wires in the fusebox area which used to go to the ring terminal on the 7m alternator.

The colors for those power steering wires look right. Dunno about the ABS.

That big connector on the 1jz harness is EA2, there are wiring diagrams for that available, I'm at work at the moment and can't get a link for you, but i'll put it up if someone else hasn't when I get home.



[tlo86]

the red yellow - are they the switch for the reverse lights?



[bluemkiii]

On the fifth pic I believe some of those plugs are for the 7m ignitor which you are not going to use.



[JonoTurbo]

Check out this page for the pinout and wiring of the 1jz connectors.

http://web.archive.org/web/20060323191804/www.1jz-gte.us/92Supra6.html

I hope you have the other end of that EA2 connector, it sure would make your life easier.



[BLK-SUPRA]

Hey guys,, Im doing a 1JZ swap (PROJECT THEARD), I HAVE SEARCHED SM.com, SF.com.au, SF.com.au and im going MAd...!! i cant find M1 B2 B3 on the 7M loom!! Sorry for hijacking tha tread. but i cant find these plugs on my 1889 MA71 supra!
PLEASE HELP



[RWHP]

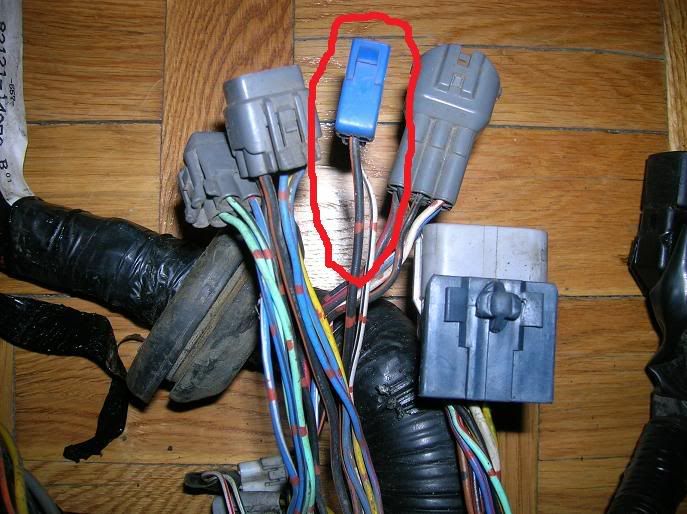

I cant find the other connector for this on the 7M chassi harness or anything! what is it for?



[RWHP]

Check out this page for the pinout and wiring of the 1jz connectors.

http://web.archive.org/web/20060323191804/www.1jz-gte.us/92Supra6.html

I hope you have the other end of that EA2 connector, it sure would make your life easier.

Dude, that was a great help! Exactly what i was lookin for, thanks alot :love:



[highmilehatch]

I'll help out with what I know.

Im about to get started with the wiring for my swap, but im confused..

These 2 fat wires goes frm the alternator, ground?

Yes. They need to make their way over to the driver side of the engine bay. You will find the two black grounds coming out near the fuse box. These went to the original 7M alternator.

These red/yellow wires goes to the gearbox?

Yes, they are for the reverse switch.


This purple wire from the 7M harness cant find a home on the 1J harness

I don't know what that wire is for either. I left it disconnected.


Here are some wires left over, is it just to cut them since they are for cat temp sensor, egt temp sensor and for the digital dash that is on some JZA70.

Yes, cut them/leave them disconnected.



[RWHP]

I'll help out with what I know.

Thanks



[JonoTurbo]

Just want to clarify something, those thick black wires near the fusebox are not grounds.



[RWHP]

Figured that out in your previous post I just wanna thank you for the link you posted!
