Vacuum Routing on 2JZGTE (turbo side)

[MrOizo]

Hey hey,

At the finishing stages of my 2JZ swap. Just stuck on a few things like the vacuum hoses.

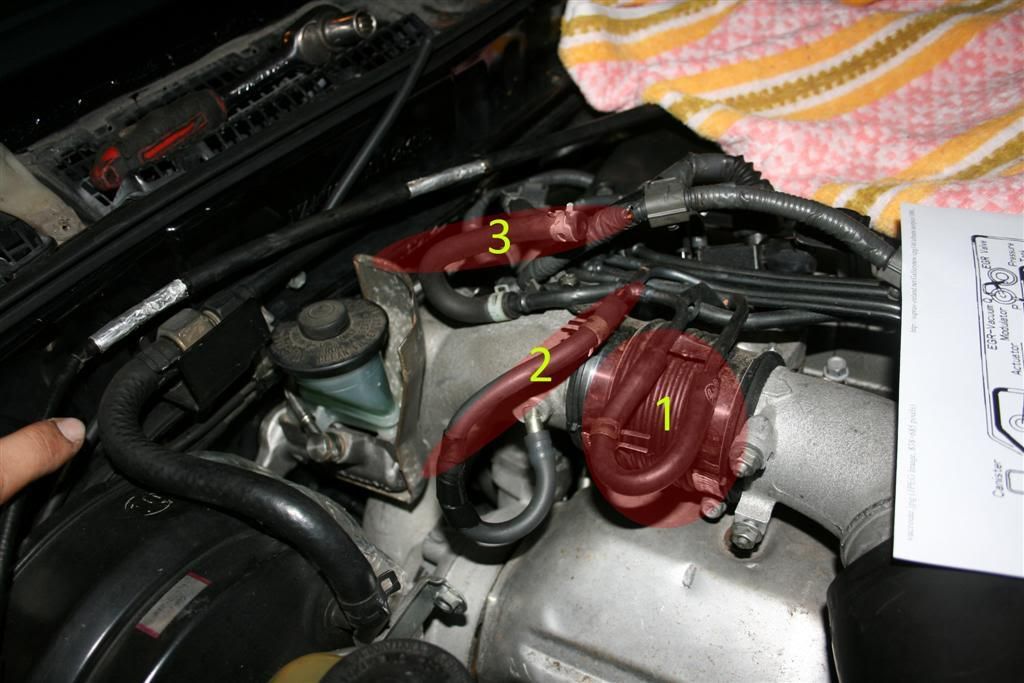

Number 1: Are the feed and return for the VSV.
Number 2: Looks like it should go something like this from other peoples pics.
Number 3: What is this one? Is it something like a feed to the Charcoal cannister?

Any help much appreciated!

Cheers.



[tlo86]

follow the lines and see where they end up and compare it to the mkiv tsrm its not too hard. just imagine it without the Egr system
http://www.turbosupras.com/pdfs/JZA80%20TSRM/EC (2JZ-GTE).pdf EGR system
bypass valve has a dedicated vac line
map sensor vac line is connected to the valve on the intake manifold and the FPR (http://www.turbosupras.com/pdfs/JZA80 TSRM/TC.pdf) shows the map sensor version
http://www.turbosupras.com/pages/en/pages/technical/a80tsrm.htm
everything else..
