Rebic Lc, Wiring diagram or pin out required

[martin p]

I need either a wiring diagram or pin out for a rebic lc to fit a 89+ supra so i can hard wire it, As mine was for a pre 89 and I sold the harness Before writing down the pin outs!:3d_frown:



[isnms]

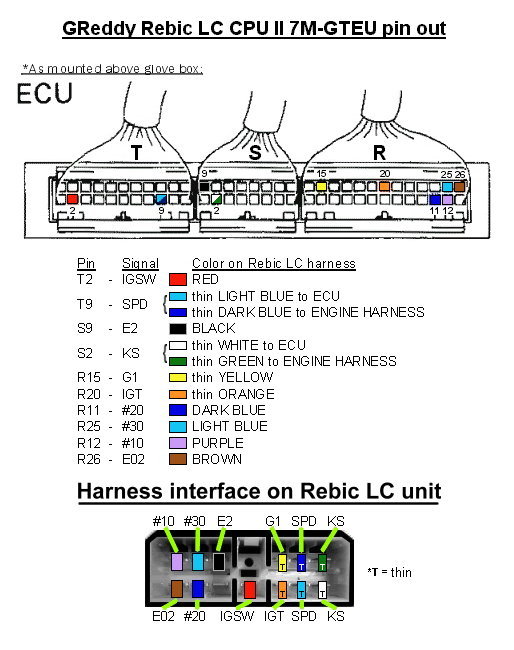

note: Red on the wedge went to IGSW, but I believe it is acceptable to tap it to +B or +B1 also.
note2: The AFM signal [KS] and the speedometer [SPD] are cut.



[martin p]

Many thanks, That diagram is excellent, been searching for weeks.



[martin p]

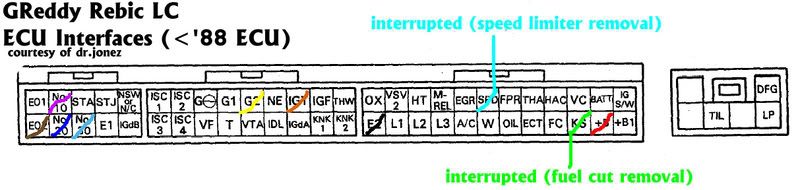

Pre 89 pinout courtsy Of Dr jonez,(many thanks)
