Madsupra's 1JZ build up :)

[madsupra88]

need pre-89 front turn signals? i got a set, lmk

Lol i got some, i just need the bulb clip (the part that the bulb actually plugs in to, then it connects to the harness.)

If u have them ill takem



[madsupra88]

Rear end locked up, and oilpan cracked.. what a day.



[madsupra88]

Forgot to update this thread, ive just been buying parts as of now. i have just a few more parts to collect and then the work begins.

I decided to go with MAP ecu instead of standalone for this summer. which will be ordered very soon.

Also went external fuel pump



[madsupra88]

Did some progress today.

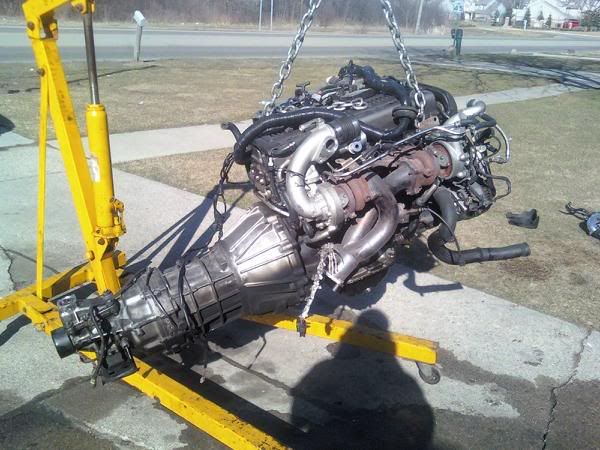

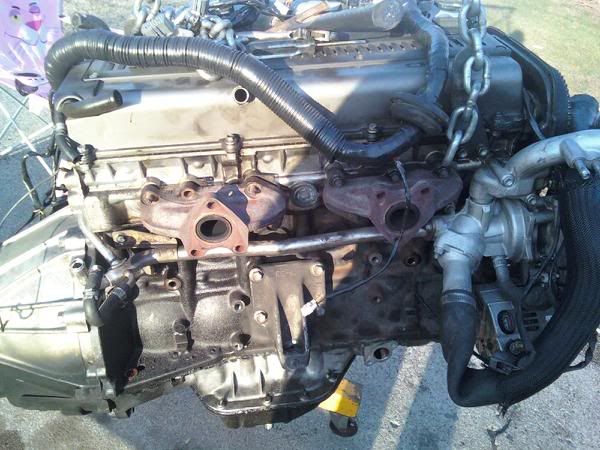

Taking the twins off, what a pain in the ass that was

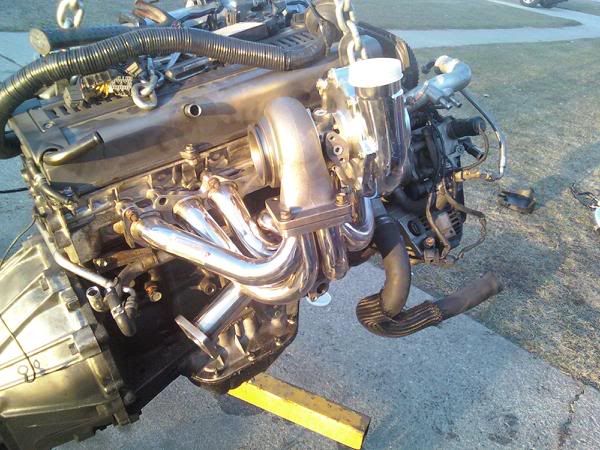

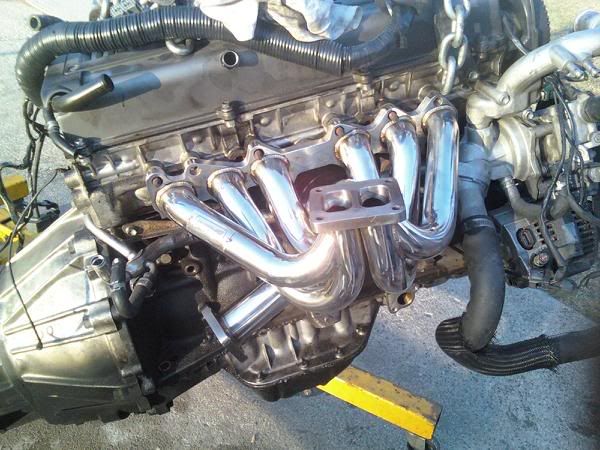

Test fitting the new manifilold

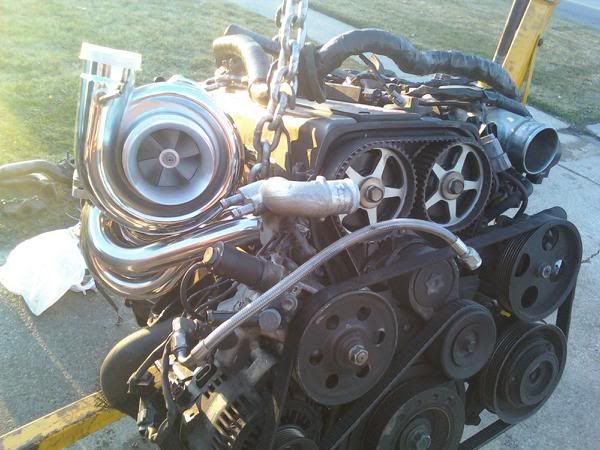

Testing the cute T76 on there )

More progress tomorrow



[oldsking]

looking good! Id like to see how you do the external FP as I just bought one today (Actually looks just like that SX performance one) and am deciding on how I will hook it up. Ideas would be great I got some skinny's up front for my supra also so this is starting to look like my car haha Keep it up



[87mk111]

Nice lookin turbo



[madsupra88]

Thanks man, tank will be gettin dropped off at the shop to get a sump welded in it. ill take lots of pics with the pump setup and the wiring for it to give you guys a better view.

Alot more progress should be done tomorrow, i still gotta take the rear end out since i snapped the fucker



[Bigzavs]

just FYI, i used to use that same manifold, the wg runner needs to be shortened something fierce, as it sits, that wastegate will damn near touch the firewall

how big is that turbo? looks in the 70mm+ range from that head on pic



[madsupra88]

just FYI, i used to use that same manifold, the wg runner needs to be shortened something fierce, as it sits, that wastegate will damn near touch the firewall

how big is that turbo? looks in the 70mm+ range from that head on pic

Yes sir i was aware when i test fitted the mani that it needed to be shortend. thanks for the info though! BTW it a 76 mm Turbo

More progress guys

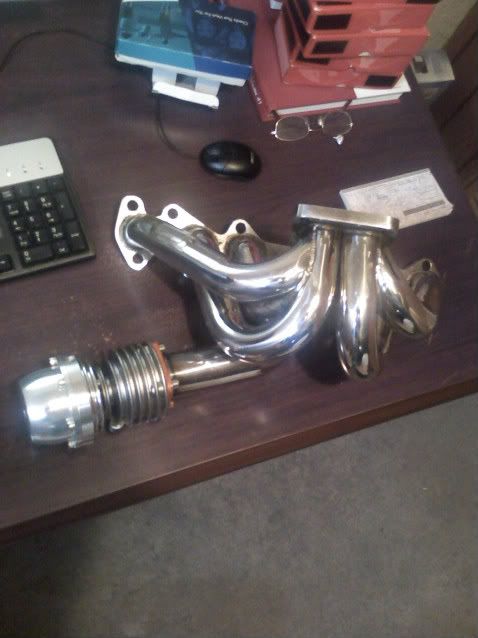

Wastegate pipe shortned

Custom making the wastegate flange so we can weld it on

The flange

Flange welded on ,sexy eh

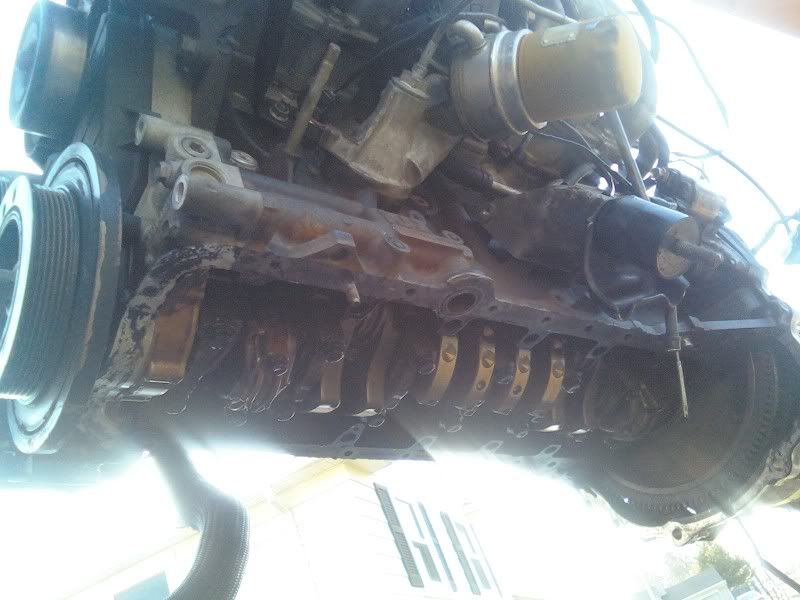

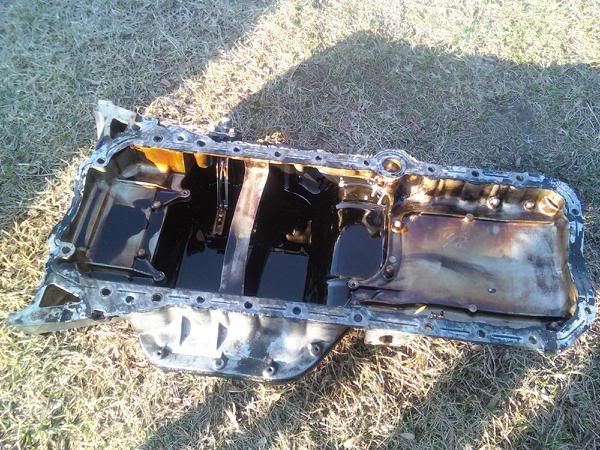

Oil pan off

Mid Pan off to get welded

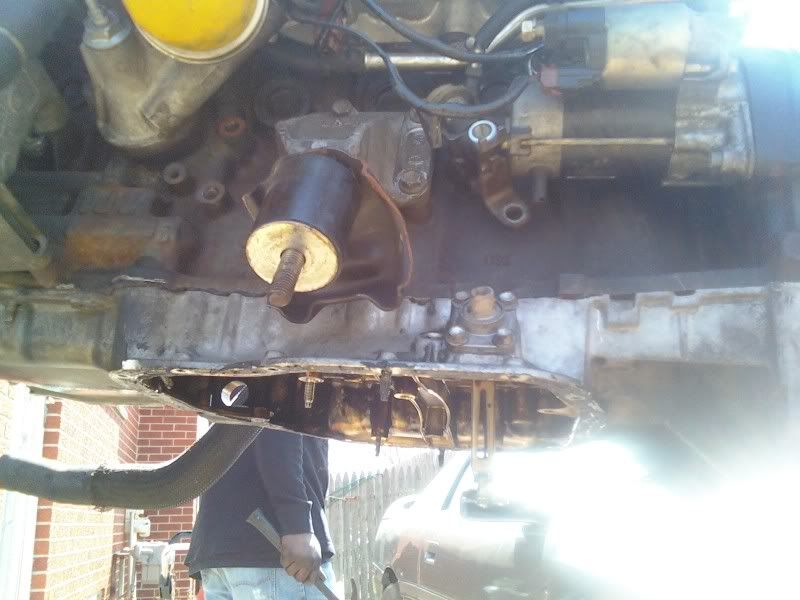

The is what happens when you do a burn out not knowing you have a motor mount MISSING!

And here is a vid when it happend last summer lol
http://s36.photobucket.com/albums/e3/madsupra88/?action=view&current=Picture-1.flv

Thats enough for today, More progress tomorrow guys



[madsupra88]

Ok guys a little more progress.

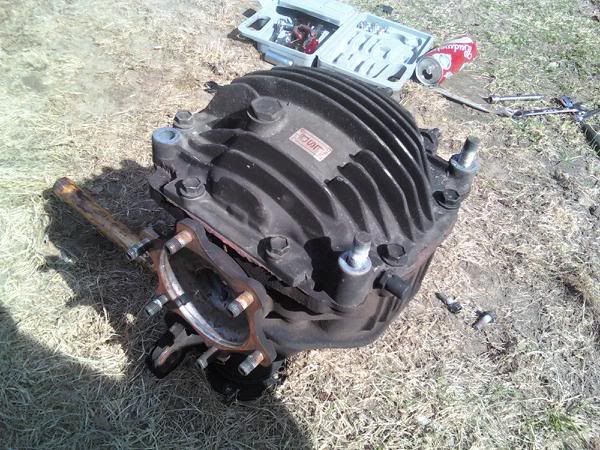

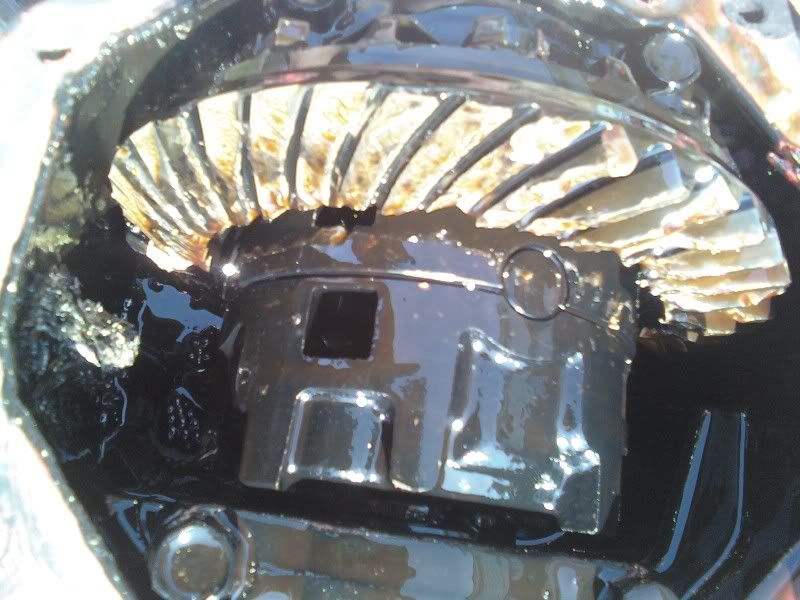

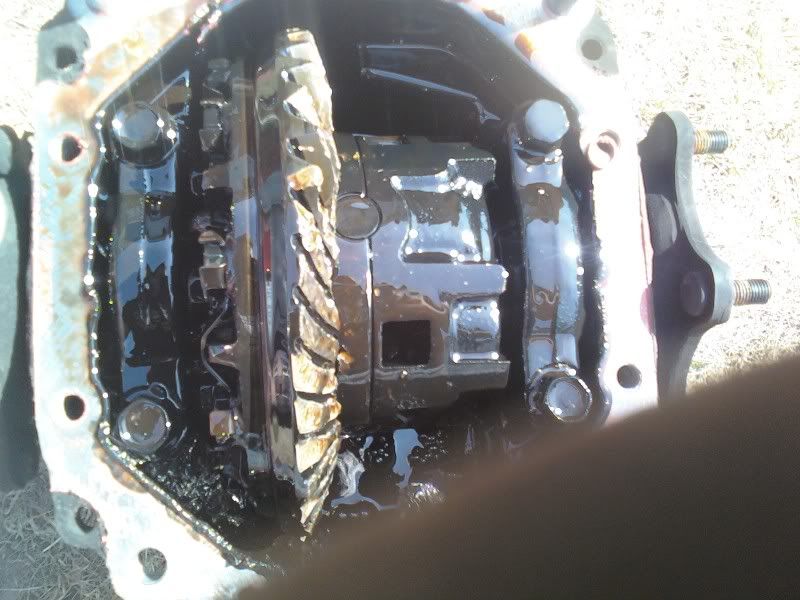

Took the differential out and popped it open

LOL

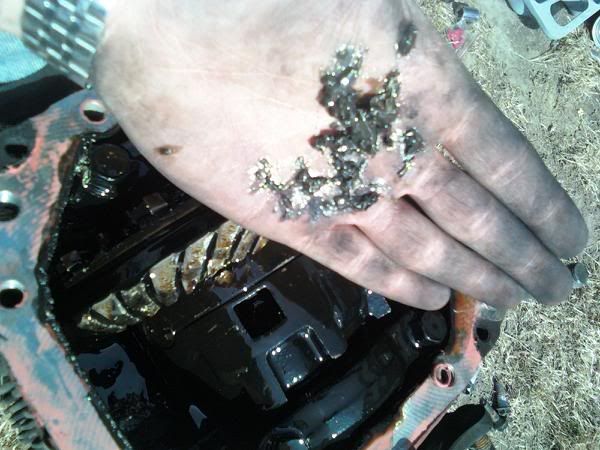

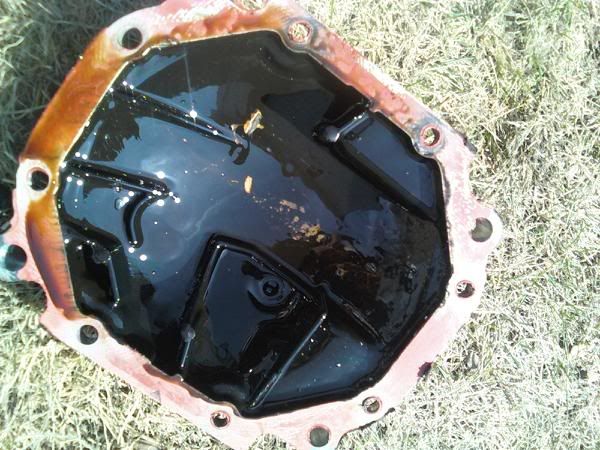

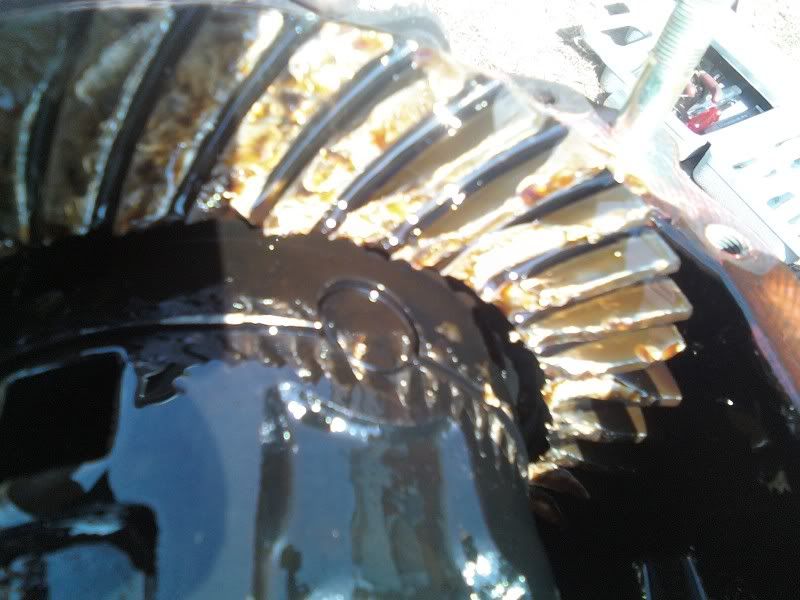

So much metal shavings

Differential anyone?



[oldsking]

Man oh man what a diff! lol Yeah I'd def like to see the pump progress as I am thinking of mounting mine on the frame but wondering if I want to sump my tank or run lines from the factory location (obviously high pressure lines )



[madsupra88]

Personally i would sump the tank man, the starting point of the factory lines (metal) are tiny lol, plus you can have more flexible steel braided lines to mount where ever you want, and will have quick disconnects



[SURUKO]

in for some progress and sorry for that diff



[madsupra88]

Im looking at a different options for now, im trying to see if i can fit a different pumpkin in there with slight modification to the subframe. hmm..



[madsupra88]

Just a small update

I got my oil pan patched up nice and installed, also got the wastegate on the mani ready to bolt on

Weather is nice tomrrow, should have a lot more progress.



[gennro]

Looks good man. Have the same manifold/wastegate setup sitting out in my garage right now.



[madsupra88]

I had a member PM earlier telling my that the way this manifold is designed, it wont clear for a down pipe !!

Thing is i shortned the wastegate pipe about 3 inch. and welded a new flange on there. i HOPE i dont run into that problem, he said that hed recomend routing in downwards

Ill have to see for myself i guess, id hate to have that hold me up for another day or 2



[gennro]

Yeah I heard you just need to trim the wastegate piping back like you did and it would work fine.



[madsupra88]

Ok guys more progress

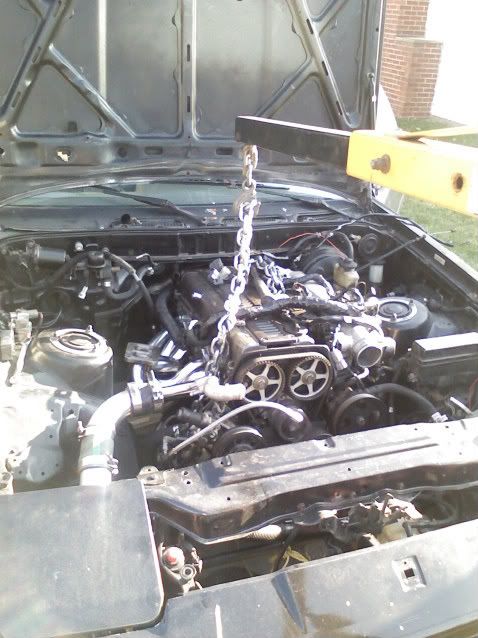

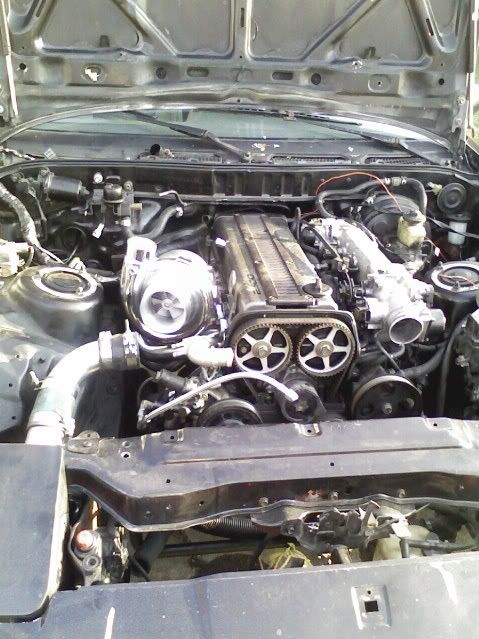

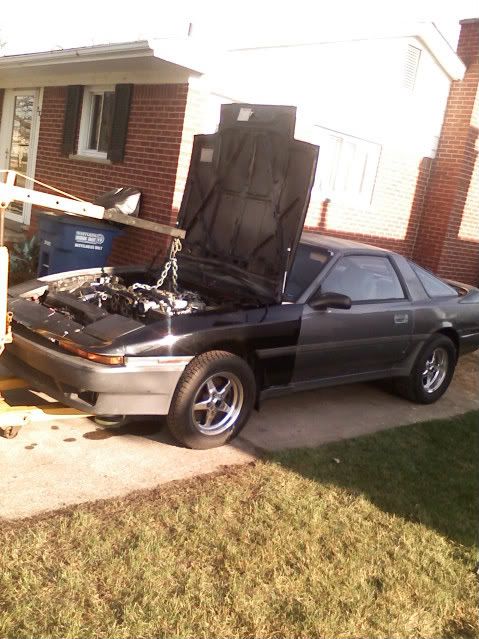

Got the motor in and bolted up. i just have to install the radiator and some hoses and swap out the rear end tomorrow and i can have her running.

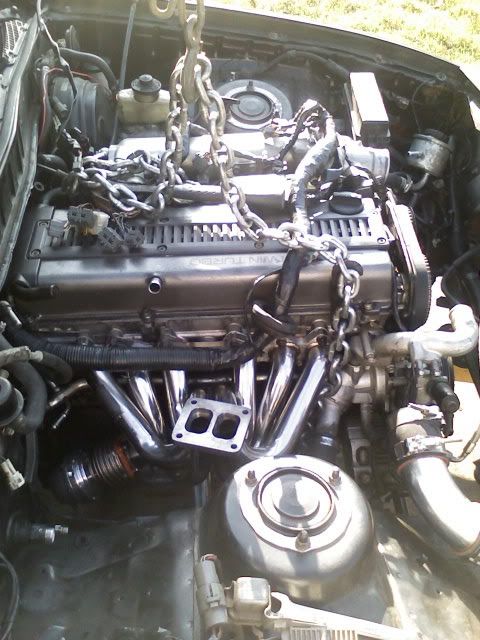

Installed the mani/wastegate, btw if yu shorten this pipe 3" your good to go, it will clear the firewall and clear for a downpipe!

Still need to adjst the compressor housing on it, but its coming along quite smoothly so far !

Tomorrow i will be installing the new rear end, and maybe take it out for a quick spin before i install the new fuel system.



[gennro]

Cool man. I'm going to go ahead and modify my manifold then to exactly like you did yours.

You should come to the toyota meet here in Virginia in May.
http://www.supramania.com/forums/showthread.php?105181-May-2010-Meet
