Does anyone know if the fusebox and all the wiring that goes to the front of the car ie. Headlight,fogs,horn,windsheild washer resivoir, if there the same from an n.a. to a turbo or are interchangable?


suprastanger507mgte

2x88+2x89+1x91+2x92=ME
Apr 5, 2005
3,148
6
38
Hayward , Ca
why don't you look at the TSRM and compare? The electrical wiring diagram section will show wiring for both, the 7mGE and the 7mGTE.

I don't think there is much difference if any though. Its mostly the main harness due to different sensors and what not


tbcmorris

SM Expert Thread Derailer
Mar 14, 2007
1,820
0
0
39
PRUVEN PERFORMANCE MILFORD CT
i looked at the tsrm. on 14 of bodt elecrical it has a diagram of junction block 2. which is the one i am trying to find. it doesnt have a part number or 2 different drwaings for na and turbo. i am believe this means that i am right and they are the same. next onto junction block 1,3 and 4...ohhh boy


Kckazdude

Active Member
Mar 16, 2007
1,239
0
36
Memphis, TN
I will go out and compare them today. The only thing different on the body from turbo to NA that I can think of is condensor fan. Turbo has fan mounted in front of radiator. NA has the 2 mounted beind in shroud.


tbcmorris

SM Expert Thread Derailer
Mar 14, 2007
1,820
0
0
39
PRUVEN PERFORMANCE MILFORD CT
Kckazdude;987051 said:
I will go out and compare them today. The only thing different on the body from turbo to NA that I can think of is condensor fan. Turbo has fan mounted in front of radiator. NA has the 2 mounted beind in shroud.


thank you sooo much that would be a great help. i am ditching ac...so the condensor fans will not matter to me . thanks again.


Kckazdude

Active Member
Mar 16, 2007
1,239
0
36
Memphis, TN
Pics FTMFW!
Both cars are 87. Turbo car has TEMS and ABS, NA doesnt.

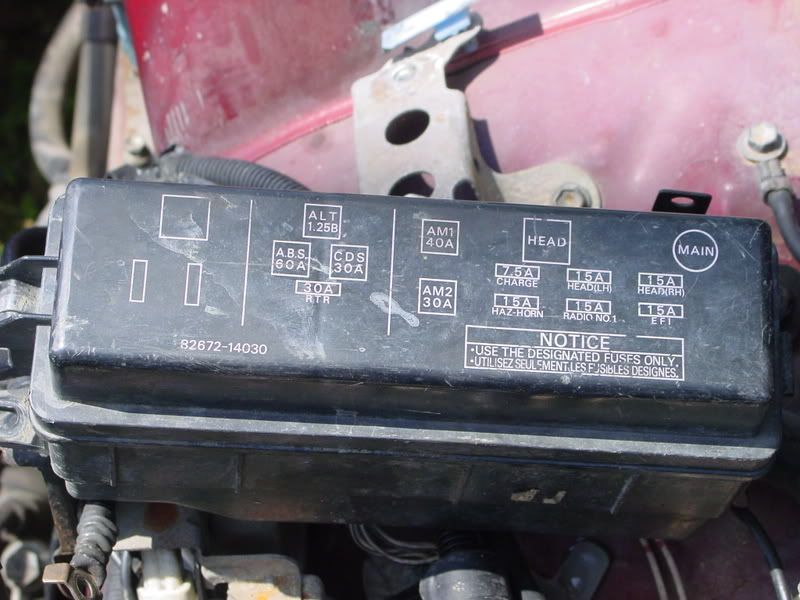

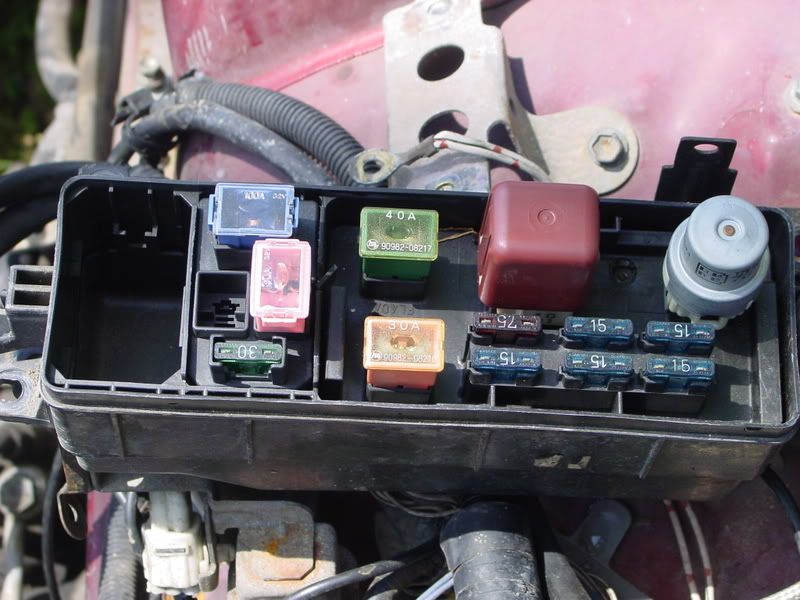

87 NA

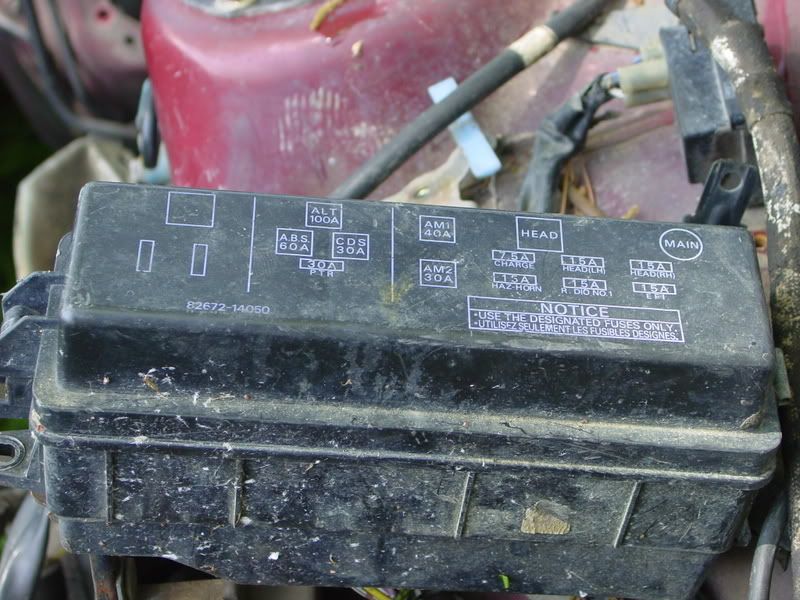

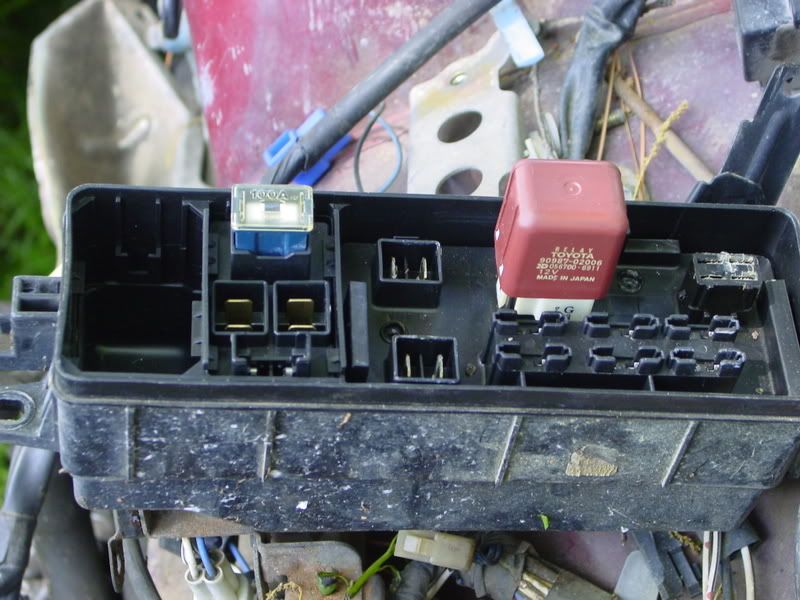

87Turbo




Let me know if there is anything else you are looking for on this. Will be swapping this harnss over to my NA car tommorrow so I may be real familiar with it by then.
