I have the push button control, everything is working fine except for the position buttons. They don't like to work. Any one know how to go about fixing them? Also, I saw a video on youtube of a guy who changed his lights and put in some in the climate control instead of the old funky green ones. Has anyone else done this and if so where and what leds did you use? Thanks so much.

Poodles

Poodles

I play with fire
Jul 22, 2006
16,757
0
0
42
Fort Worth, TX
The buttons do wear out, and there really isn't anything that can be done about it from my experience. I might try again soon though.

EDIT: Well, soon means now, since I was bored. Yep, it's possible to fix the buttons, but tedious as hell...

Poodles

Poodles

I play with fire
Jul 22, 2006
16,757
0
0
42
Fort Worth, TX

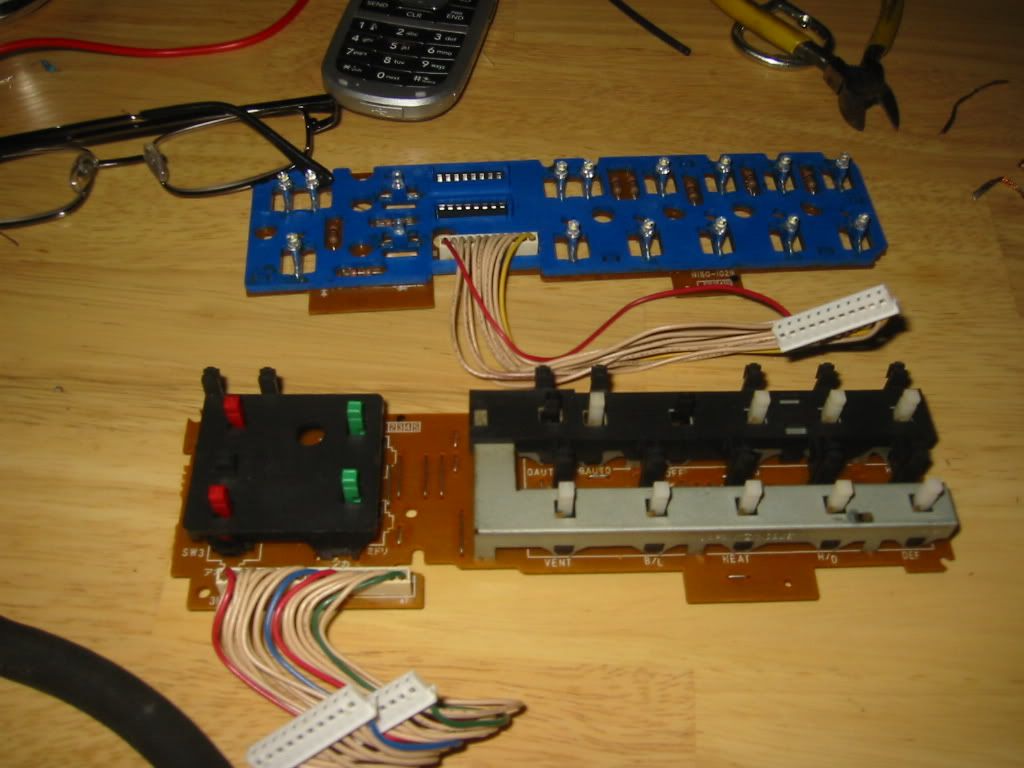

The repair isn't for the faint of heart as it requires near complete disassembly of one of the circuit boards. Took me about 4 hours of work.

spoolme

spoolme

supra4umsfreak
May 9, 2005
320
0
0
Roswell, NM
any advice why the low-med dont work and only high work? and then randomly the low and med work??

Last edited:
Poodles

Poodles

I play with fire
Jul 22, 2006
16,757
0
0
42
Fort Worth, TX
I could probably repair CC's (as the button issue seems to be common), but there's plenty of people that already do LED swaps...

Dylan JZ

Dylan JZ

一番 King
Oct 18, 2007
2,220
0
0
湾岸せん
this ^

super common in these cars and a bunch of others.. it's a cheap part to replace, and it's located under the glove-box area IIRC (someone correct me if I'm wrong).

supraguy@aol

supraguy@aol

Well-Known Member
Dec 30, 2005
4,232
37
48
Atlanta

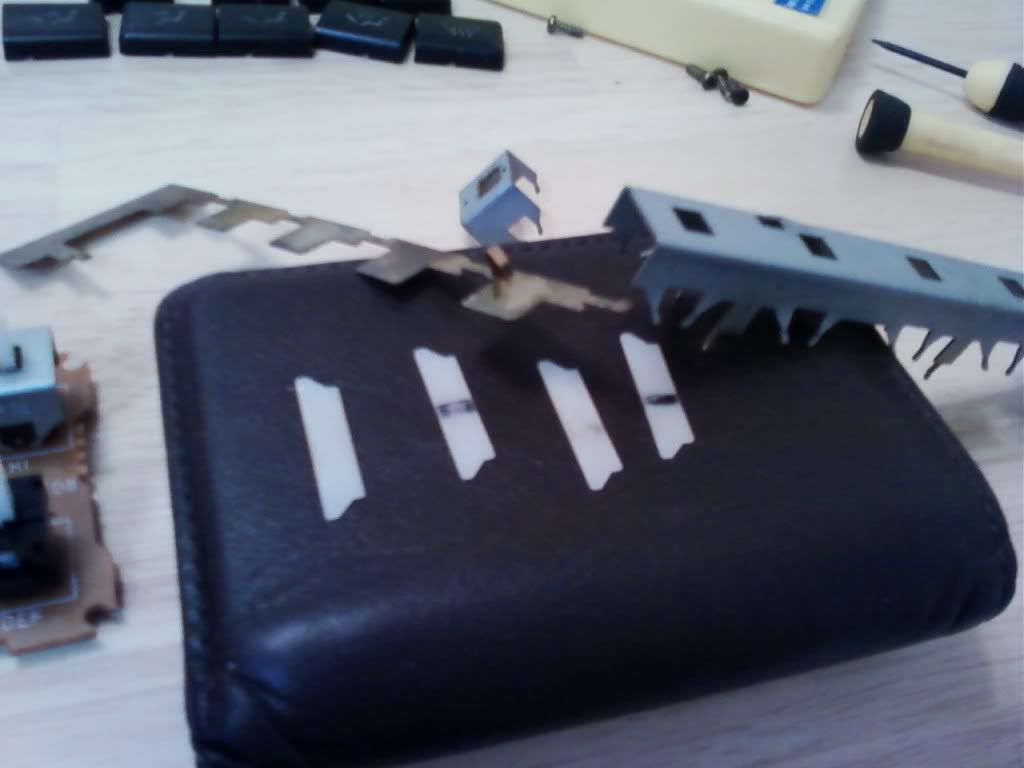

The problem with the buttons no staying pressed in is due to the individual push contacts inside the unit. They are all topped by a stamped steel sleeve, which holds a spring loaded brass slide bar underneath, which has small tabs which in turn fit into plastic detents whithin each individual push switch. These detents round off with use, and are virtually impossible to fix. The company that made these switches no longer creates them(I emailed them- a company called Noble.)

It is possible to repair it by using a donor climate control. Since people hate the early model units, you can pick a few of them up and use the best push switches out of them. But as Poodles said- be prepaired for a world of pain. There are a myriad of small parts under that steel sleeve that pop out once you remove it.




jetjock

jetjock

creepy-ass cracka
Jul 11, 2005
9,439
0
0
Redacted per Title 18 USC Section 798
Mine were still good after 23 years because I rarely fooled with them. Just left the system in auto and adjusted the temp. The downside is after the servo pots wear a flat spot the dampers start hunting. That wouldn't be so bad except the noise is annoying and the servos aren't cheap or easy to change.
