First let me say this, what you see below is a half finished project. I had originally planned to include wiring for both MKIV/Aristo 2JZ-GTE's in to both the pre and post 89 chassis. But I never reached a point where I felt comfortable with the way the info was edited and presented. I wanted something that was easy to read and understand by someone with a little electrical knowledge. After several failed attempts I shelved the project till later. What you see below is essentially scraps put together from one of my better attempts. It could be better but if I don't put it out here now, it may never be. What follows is the culmination of countless hours picking through the info on arnout's site supras.nl, much time in between the pages of an 89TSRM, a 87 Supra EWD, 95 TSRM, and a 93 GS300 EWD.

I would also like to state that this information is presented here for research purposes. My recommendation, for a well built fully functioning swap harness is to contact drtweak and get one from him.

________________________________________________________________________



This is for swapping a 1st gen Aristo 2JZ-GTE into a pre89 MKIII

How to read: The first part deals with the connectors that are present and their associated pinouts. So you know what they do and can decide if you want to keep them. For example pin 6 thru 8 on Connector 'C' deals with the traction control and can be deleted.

The second section titled 'Connections' deals with the the hybrid connections that need to be made between the 2JZ harness and the MKIII harness. Three connectors from the 7M main engine harness are required to be spliced in to the 2JZ harness.




M1
Pin # 1 – Reverse Light Power from Switch ((R-B) Also power for A/T indicator/neutral start switch)
Pin # 2 –Reverse Light power to Switch(Y)
Pin # 3- Speed sensor from combo meter. (ECU/P <->Body/Y-R)
Pin # 4 –Tach Signal (B)
Pin # 5 –Turbo Indicator light(Outside U.S.)
Pin # 6 –Ground(MASS) for Combo Meter (BR)
Pin # 7 –Oil Pressure Signal for Combo Meter (Y-B)
Pin # 8 –Check Engine Light ”W” (GR-G)
Pin # 9 –Water Temp Signal for Combo Meter (Y-G)
Pin # 10 –Defogger Relay (V)

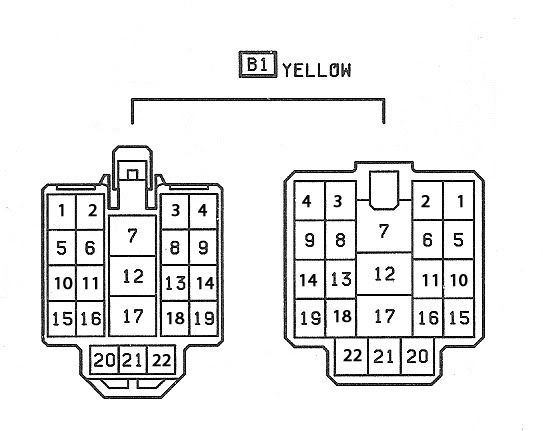

B1
Pin # 1
Pin # 2 - *A/T Only* ‘L3’ Signal from ECT ECU to TCCS (R-W)
Pin # 3 -* A/T Only* ‘L2’ Signal from ECT ECU to TCCS(R)
Pin # 4 -* A/T Only* ‘L1’ Signal from ECT ECU to TCCS(B)
Pin # 5 – ‘E2’ Signal on Diag Block(B-R) used to monitor fuel pump voltages
Pin # 6 – Ground to activate Fuel pump relay (G) Normally the ECU grounds, Ground to MASS for swap
Pin # 7 – *A/T only *Power for secondary coil in circuit opening relay(B-L)
Pin # 8 – Fuel pressure down. If this wire is grounded, voltage to the fuel pump is reduced (Y)
Pin # 9 – Power to Circuit opening relay for Fuel pump (B-R)
Pin # 10
Pin # 11 -*A/T Only*Neutral signal for ECT ECU (W)
Pin # 12 – “Start” signal from relay to starter (Engine/B-L <->Body/B-W)
Pin # 13 – Signal from A/C amplifier (L-R)
Pin # 14 –From Diag Block to test for TEMS Hard mode (V)
Pin # 15 –Cruise Control Clutch Switch (B-Y)
Pin # 16 –IG switch power to ECU(B-O)
Pin # 17 –Power from Ignition switch IG2 (B-O)
Pin # 18- Signal from theft computer to theft deterrent horn (Y-L)
Pin # 19 –From Headlight relay(R-Y)
Pin# 20 –injector signal to Super Monitor (W-L)
Pin # 21 – ‘T’ Signal to Super Monitor(R-G)
Pin # 22 – From Super Monitor computer to ground(MASS) (BR)




C1
Pin # 1 - Batt signal from 15A EFI fuse (B-Y)This source is taken before the EFI main Relay
Pin # 2 - M-Rel coil signal from ECU (B-O) This is the signal that the ECU sends to activate the EFI Relay
Pin # 3 –Source from 15A HAZ-HORN Fuse to Theft Deterrent horn (W)
Pin # 4 – Batt+ from EFI main relay (via 15A EFI) (B-R)This source taken after the EFI relay
Pin # 5 –GND signal from the EFI relay coil.(W-B) This signal goes to the Diag Block ‘E2’
Pin # 6



Connector C
Pin # 1 –Aircon lock in signal (GR-R)
Pin # 2 –Aircon SG for Lock in (GR)
Pin # 3 –Throttle Actuator for Trac System (W)
Pin # 4 –Throttle Actuator for Trac System (R)
Pin # 5 –Aircon Clutch signal (B-W)
Pin # 6 –Throttle actuator for Trac System (B)
Pin # 7- Throttle actuator for Trac System (G)
Pin # 8 –Throttle actuator for Trac System (Y)
Pin # 9
Pin # 10
Pin # 11 –Throttle Actuator for Trac System (L)
Pin # 12 –Throttle actuator for Trac System (GR shield)
Pin # 13 –Oil Valve for Hydro Fan (L-Y)
Pin # 14
Pin # 15 –FP signal for Check Box
Pin # 16
Pin # 17

Connector D
Pin # 1 –Oil level light (Y-R)
Pin # 2 –A/T control pin 8 (R-L)
Pin # 3
Pin # 4 –AB Check Signal (B-Y)
Pin # 5 –TEM Check Signal (GR-R)
Pin # 6
Pin # 7 –WA Check Signal (P)
Pin # 8 –CCO Check Signal (GR-B)
Pin # 9 –Oil Valve for radiator fan(pressure driven)(B)
Pin # 10 –OP1 check signal (P-L)
Pin # 11 –WB Check Signal (P)
Pin # 12

Connector E
Pin # 1
Pin # 2 –‘W’ (warning) Check Engine Signal (diagnostics box)(B-Y)
Pin # 3 - +12Volt for electronic controlled transmission (B-R)
Pin # 4 -A/T neutral start (pin 6 on tranny)(B-Y)
Pin # 5 –A/T neutral start (pin 5 on tranny) (B-W)
Pin # 6 –Tc Check Signal (Diag Box) (Y-B)
Pin # 7 –TE2 Check Signal (Diag Box) (L-B)
Pin # 8 –“N” Signal from A/T indication switch for dash (G-R)
Pin # 9 –“2” Signal from A/T indication switch for dash (G-O)
Pin # 10 –“L” Signal from A/T indication switch for dash (G-B)
Pin # 11 –“D” Signal from A/T indicator switch for dash (G-W)
Pin # 12 –“P” Signal from A/T indicator switch for dash (G-Y)
Pin # 13 –“R” Signal from A/T indicator switch for dash (R-B)
Pin # 14 - +12Volt for A/T indication switch and backup lights
Connector F
Pin # 1 –Signal for Starter (B)(FAT)
Pin # 2 –SPD signal from speed sensor (pin 3)(L-R)*Delete if Auto Removed*
Pin # 3 –SPD signal from speed sensor (pin 2)(L-Y) *Delete if Auto Removed*
Pin # 4 –TE1 Check Signal (Diag Box)(L-W)
Pin # 5 –TS Check Signal (Diag Box) (G)
Pin # 6 -+12Volt for igniter ect. (B-O)
Pin # 7 –Ground (BR)
Pin # 8 - Signal for Oil Pressure Gauge (Y-B)
Pin # 9- Signal for Water Temp gauge on Combo Meter(Y-G)
Pin # 10 - VF1 Check Signal(Diag Box)(G-R)
Pin # 11 – Ground (BR)
Pin # 12 –RPM Signal (B)
Pin # 13
Pin # 14

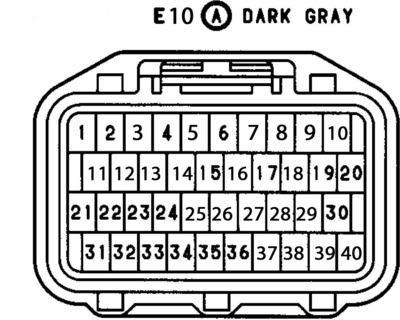

E10
Pin # 1 –‘IGSW’ Ignition Switch signal from IG2 (B-O)
Pin # 2 –‘SPD’ Speed signal (V)
Pin # 3 -
Pin # 4 –‘STP’ Signal from stop light switch(G-W)
Pin # 5
Pin # 6 –‘W’ Warning lamp indicator (B-Y)*CEL light*
Pin # 7
Pin # 8 –‘R’ Indicator Light(R-B)
Pin # 9 –‘2’Indicator Light(G-O)
Pin # 10 –‘L’ Indicator Light(G-B)
Pin # 11
Pin # 12 –‘OD1’ From Cruise control ECU(V)*ECT signal*
Pin # 13
Pin # 14
Pin # 15 –‘ELS’ Idle-up signal from defogger relay(LG-B)
Pin # 16
Pin # 17 –‘TT’ Signal for Data Link connector 2(LG)
Pin # 18 –‘P’ECT Pattern select switch
Pin # 19 –‘TE2’ Signal for check connector(L-B)
Pin # 20 –‘TE1’ Signal for check connector(L-O)
Pin # 21 –‘DI’ Control Signal from Fuel Pump Computer(LG-R)
Pin # 22 –‘FPC’ Control Signal to Fuel Pump Computer(G-R)
Pin # 23 –‘ACMG’Signal From magnetic clutch relay(W)
Pin # 24 –‘M-REL’ Signal to activate the main EFI Relay (G-O)
Pin # 25
Pin # 26
Pin # 27
Pin # 28 –‘OD2’ From O/D select Main Switch(B-R) *ECT signal*
Pin # 29
Pin # 30
Pin # 31 –‘+B’ 12volt signal taken post-EFI Relay(B-R)
Pin # 32 -–‘+B1’ 12volt signal taken post-EFI Relay(B-R)*spliced into same line as ‘+B’ pin 31*
Pin # 33 –‘BATT’ constant 12Volt signal taken pre-EFI Relay(W-L)
Pin # 34 –‘A/C’ From A/C Lock amplifier(B)
Pin # 35 –‘PS’ Signal for power steering pressure switch(G-Y)
Pin # 36
Pin # 37 –‘TR’ From Trac Control Computer (P)
Pin # 38 –‘NEO’ From Trac Control Computer (BR-W)
Pin # 39 –‘VT02’ From Trac Control Computer(Y-R)
Pin # 40 –‘VT01’ From Trac Control Computer(P-L)

Connections
M1
Pin #1 - This branch should be transplanted from the 7M harness. Line from (M1 pin 1) to (B pin 1) should be preserved *see appendix for connector ‘B’
Pin #2 – This branch should be transplanted from the 7M harness. Line from (M1 pin 2) to (B pin 2) should be preserved *see appendix for connector ‘B’
Pin #3 –‘SPD’ -> E10 pin 2
Pin #4 –‘Tach’ -> IK1-F pin 12
Pin #6 –‘MASS’  MASS(Ground)
Pin #7 –‘Oil Pressure’ ->IK1-F pin 8
Pin #8 –‘W’ -> E10 pin 6, IK1-E pin 2
Pin #9 –‘WATER TEMP’ -> IK1-F pin 9
Pin #10 –‘Defog relay’ -> E10 pin 15
B1
Pin #5 –‘FP Voltage’ ->IK2-C pin 15
Pin #6 –‘FP Relay Ground’ -> MASS(Ground) *see Appendix
Pin #9 –‘12V for COR’ ->C1 pin 4
Pin #12 –‘Start’ -> IK1-F pin 1

Pin #13 –‘A/C Amplifier’ E10 Pin 34
Pin #15 –‘Cruise Clutch’ ->E9 pin 76 *see Appendix
Pin #16 –‘IGSW’ ->E10 pin 1
Pin #17 –‘IG2’ -> IK1-F pin 6,

C1
Pin #1 –‘Batt’ ->E10 pin 33
Pin #2 –‘M-REL’ -> E10 pin 24
Pin #4 – ‘+B’ -> E10 pin 31,32



Appendix



Connector ‘B’ is located at the R154 transmission and is used for the reverse light switch,
and is transplanted for this swap.



Fuel Pump Relay
To activate the relay the 7M TCCS normally grounds pin 6 of connector B1 when the ECU see an RPM signal. This is a safety feature so the fuel pump will stop if the engine stops, if something like an accident were to happen. The 2JZ ECU does not do this and has a separate computer to accomplish this task. At the moment I’m not sure how to swap that computer over. So unfortunately the simplest solution is to physically ground the wire from B1 pin 6. This allows the fuel pump relay to kick on whenever the ignition switch is turned on. However this disables the rpm triggered safety feature. Hopefully I’ll come up with a better solution in the near future.



E9 Connector
Due to the limited pins that have to be messed with on this connector I decided to leave the pin out off the main pin out. Simply reference the pin numbers from above.

Acronyms
FP – Fuel Pump
COR – Circuit Opening Relay
TCCS – Toyota Computer Controlled System i.e the ECU
SPD – Speed
IG - Ignition
MASS-Chassis Ground

*All connections shown in red are the bare minimum necessary to start the engine. Just to test if the motor functions.

Last edited:

Dirgle

Conjurer of Boost
Authorized Seller
Contributor
Joined
Mar 30, 2005
Messages
1,632
Likes
0
Location
Pauma Valley, CA
#43
You should have two connectors on your Aristo ECU a larger one that has two parts and a screw in the middle, and a smaller one. If your ECU is missing either of these plugs then yes you will need to source one.


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#45
how do you wire the a/c? dirgle in your right up you only have 1 wire wired up for the a/c. does your a/c work? anyone wire up there a/c from aristo harness into a mkiii?


IBoughtASupra

Active Member
Authorized Seller
Joined
Mar 10, 2009
Messages
4,455
Likes
0
Location
Queens, NY
#46
The AC in the MK3 does not run off the computer, nor would it need to be controlled by the computer.

Look at the pinout for the 7M computer for your year of Supra. The A/C is just to let the computer know to bump up the idle when the A/C is one, that's all.

The A/C system is controlled by a little black box located right by the computer and I believe it is called the A/C amplifier but I am not to sure on that. I was worried about going standalone and not having the A/C work but on my 1JZ, it works fine.

Which means, just take the wire that signals for idle up to the 7M computer(use the pinout) and put it to the corresponding pin for the Aristo computer that is responsible for idle up.


Dirgle

Conjurer of Boost
Authorized Seller
Contributor
Joined
Mar 30, 2005
Messages
1,632
Likes
0
Location
Pauma Valley, CA
#47
how do you wire the a/c? dirgle in your right up you only have 1 wire wired up for the a/c. does your a/c work? anyone wire up there a/c from aristo harness into a mkiii?
IBoughtASupra is correct, and the system will work fine that way. It's the way it was designed to work with the 7M. Like the pinout says, connect pin 13 of B1 to pin 34 of E10.

However, the 2JZ ECU has the ability to deactivate the A/C clutch under full throttle conditions so that no power is parasitically being drawn off buy the A/C system at that time. And there is a way to wire that feature in to the MKIII, but I wanted to test it first, to be sure, before I put the information out there. Unless somebody else has done it and can comment on it.

Until then I would just connect it the way shown in the pinout above.


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#48
Ok but when I cut the aristo body plug it has the three wire that run to the a/c on it g (aircon sg for lockin)b and w (aircon clutch signal)and r and g (aircon Lock in signal). So basically the a/c has no wire hooked up. Where do those wires go?


Dirgle

Conjurer of Boost
Authorized Seller
Contributor
Joined
Mar 30, 2005
Messages
1,632
Likes
0
Location
Pauma Valley, CA
#49
Your right, it seems I did leave that off of there.

Now, which A/C compressor do you have on there the 7M one or the Ariso one with the 7M head?


If its the Aristo one, you actually only need one of those wires. The B-W coming from connector 'C' pin 5. the other two are not used on the MKIII A/C system.
And it needs to be connected to the single wire that originally went to the 7M A/C clutch( L ), located on the driver side fender.

If you used the 7M compressor then just connect the one wire to it like before and its ready to go, no need to deal with the three wire from the Aristo A/C system.


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#50
I'm going aristo.

Ok to make sure I get this staight. The B1#13 to the E10#34 then run the black and white from the from the A/C compressor to the blue wire next to the battery fuse box.

Is this the plug?


hvyman

Dang Dude! No Way Man.
Staff member
Authorized Seller
Joined
Apr 17, 2007
Messages
12,633
Likes
8
Location
Orange, CA
#56
PPs and abs you simply take the wiring out of the 7m harness and insert it into the jz harness. No soldering or cutting needed.


Dirgle

Conjurer of Boost
Authorized Seller
Contributor
Joined
Mar 30, 2005
Messages
1,632
Likes
0
Location
Pauma Valley, CA
#58
I'm going aristo.

Ok to make sure I get this staight. The B1#13 to the E10#34 then run the black and white from the from the A/C compressor to the blue wire next to the battery fuse box.

Is this the plug?
Yes on the first part and no on the second, but you're close. It's a single pin female connector with two blue wires going into it. It should be near there.


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#59
Damn, ill be back.........

On a separate note what Injectors clips do aristos use? I have seen f1 and f2 clips both are for 2jzgte


Dirgle

Conjurer of Boost
Authorized Seller
Contributor
Joined
Mar 30, 2005
Messages
1,632
Likes
0
Location
Pauma Valley, CA
#60
I'm not familiar with f1 or f2, however it does uses two different connectors, but the only difference is color, one is grey and one is brown. And Toyota only offers the grey one now.

The part numbers are:
90980-11154
90980-11284

I'm not sure which one is still active, but if you go into Toyota they can tell you which one still exists in their system.


Dirgle

Conjurer of Boost
Authorized Seller
Contributor
Joined
Mar 30, 2005
Messages
1,632
Likes
0
Location
Pauma Valley, CA

TB90

New Member
Authorized Seller
Joined
Jul 12, 2011
Messages
27
Likes
0
Location
Around
#65
Hey guys, I've searched and searched and I think I have my answer but I just want to make sure before I buy...

I am doing a 2JZ NA-T swap into an MK3 bought an engine without a harness for cheap (not sure what it came out of). I'm looking for a harness now. Will a harness off a 94 GS300 work?

Thanks!


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#67

Roger UK

Member
Authorized Seller
Joined
Jun 20, 2010
Messages
67
Likes
0
Location
Newcastle
#69
Just read all through this thread and found it all VERY confusing !! (despite my having a degree in Electronics)

I'm planning to put a 2JZ-GE from a Mk4 Supra (with its ECU) to replace my 7M-GE in my 1991 Mk3 Supra.

Can someone answer a few basic questions for me? (Bear in mind I haven't looked at EITHER ECUs yet)

How many connectors are there on the end of the Mk4 2JZ-GE Engine Loom? Do they ALL just plug into the Mk4 ECU?

Is there just ONE other socket on the Mk4 ECU that interfaces with the body? (ie all the other non-engine things, like power, feed to dash gauges, fuel pump, etc)

To interface those "body" wires with the Mk3, it seems to me it would be MUCH easier to just come up with a Cut & Splice list of wires, ie a Table that has the wire colors FROM the Mk4 ECU and the colours TO the Mk3 body (that presumably came out of the old 7M ECU) that need to be connected together.

This would surely make the job MUCH simpler !

It seems to me that EVERYONE doing a transplant like this has to spend AGES working it out for themselves . . . surely someone who has done it would be happy to share the info to make life easier for anyone else?


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#70
Ok, I have a couple of questions from the wiring diagram on page 5.

1. The mass ground b1 pin 6 and m1 pin 6. Does it go grounded to the ecu power ground or grounded to the car its self?
2. B1 pin 9 goes to c1 pin 4. But it shows c1 pin 4 going to e10 pin 24. Does the c1 pin 4 go to both b1 pin 9 and e10 pin 24?
3. For some reason I have b1 pin 15 tagged to be going to e9 pin 76?? I tagged these five or six months ago and I don't know why I did?
Any help would be appreciated.


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#71
Ok, I have a couple of questions from the wiring diagram on page 5.

1. The mass ground b1 pin 6 and m1 pin 6. Does it go grounded to the ecu power ground or grounded to the car its self?
2. B1 pin 9 goes to c1 pin 4. But it shows c1 pin 4 going to e10 pin 24. Does the c1 pin 4 go to both b1 pin 9 and e10 pin 24?
3. For some reason I have b1 pin 15 tagged to be going to e9 pin 76?? I tagged these five or six months ago and I don't know why I did?
Any help would be appreciated.


Dirgle

Conjurer of Boost
Authorized Seller
Contributor
Joined
Mar 30, 2005
Messages
1,632
Likes
0
Location
Pauma Valley, CA
#72
1. MASS indicates chassis ground. So give it a good ground on the frame.
2. Yes they tie together.
3. That is a neutral start input for the transmission, if you're manual you shouldn't need to hook it up.


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#74
One more, the aristo alternator plug I have has a white red with blue and a yellow. The 87 has yellow, black and white. Is it pretty straight forward yellows together, whites together, and red with blue to the black one?


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#76
Ok I didn't know that was yours. I glanced over it but didn't see the alt. Then this time when I opened it up right to it. Thanks that's pretty nice file you made there. I'm finally getting my ass in gear. I had to relearn all the wires!


S.A. supra

New Member
Authorized Seller
Joined
Feb 15, 2009
Messages
2,405
Likes
0
Location
Buda, Texas
#78
Where did you ground the harness? Also does the ecu need to be grounded? Where did you mount the ecu? Or did you just leave it in the glove box?


ifyouaint1sturlast

<B>Banned Scammer</B> - I'm whitemike.
Joined
Jun 14, 2011
Messages
480
Likes
0
Location
Fort Myers/Cape Coral - Florida
#80
Particularly, these are the ground locations (from the stock harness):

GROUNDS:
Ground "E2": B-65 -> MAP Sensor, Coolant Temp Sensor, Throttle Position Sensor, IAT Sensor, A/T Temp Sensor
Ground "E1": Intake Manifold -> B-69, o2 Sensor Shield, Knock Sensor Shields (2)
Ground "E11": Intake Manifold -> B-4, CPS Shields (3)
Ground "E01": Intake Manifold -> B-80
Ground "E02": Intake Manifold -> B-79
Ground "Igniter": Intake Manifold -> Igniter
Ground "Igniter": Intake Manifold -> Igniter Noise Filter
Ground "Dash": Intake Manifold -> M1-6 (MKIII Specific), Speed Sensor, Oil Level Sensor
